Genesis 31231012 1Genesis 31231012 14/2 Stranded Unshielded Cable, Plenum, CL3P, FT6, 1000' (304.8 m) Reel, Natural4/2 Stranded Unshielded Cable, Plenum, CL3P, FT6, 1000' (304.8 m) Reel, Natural

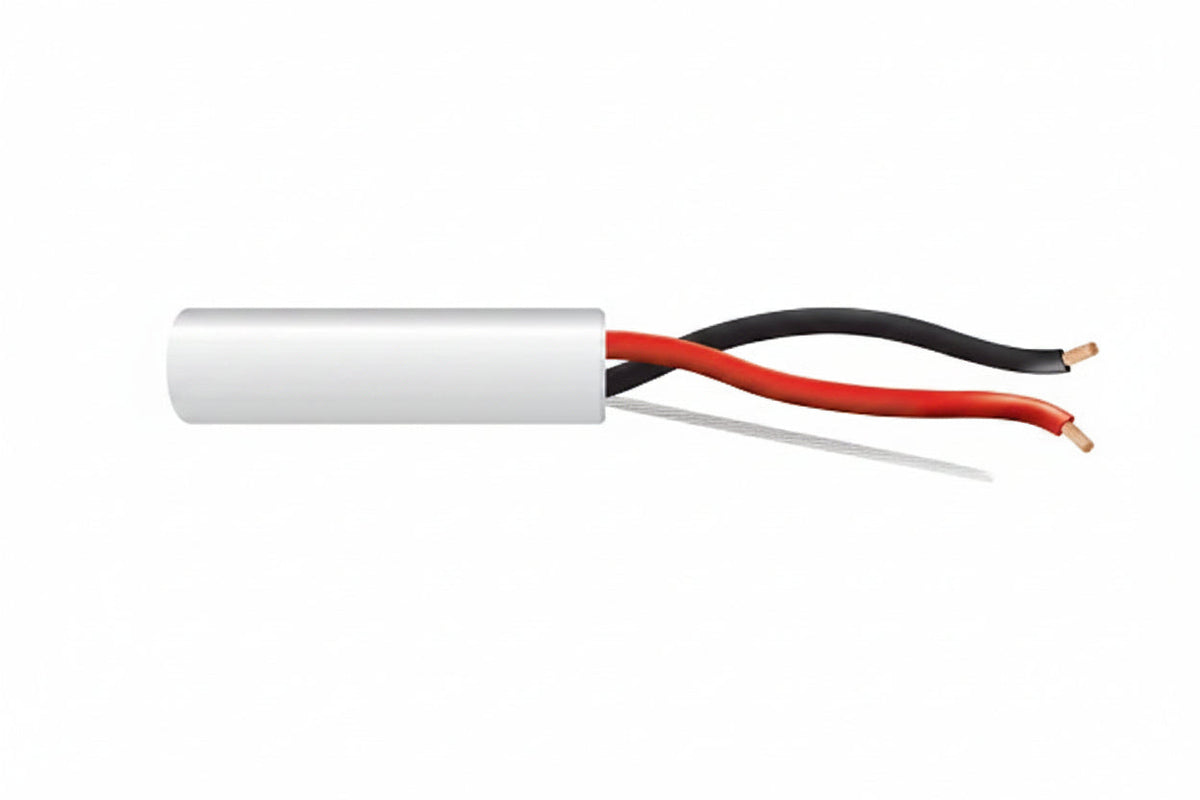

The Genesis 31231012 is a 14 AWG, 2-conductor stranded unshielded control cable, supplied on a 1000' (304.8 m) reel in natural. It is plenum-rated (CL3P, FT6) and built for indoor low-voltage runs, which makes it a fit for installers and contractors pulling control or security wiring through air-handling spaces. Bare copper conductors, a rip cord for stripping the jacket and countdown length markings are the details that stand out.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A built-in rip cord makes it quicker to strip and remove the jacket.
• Countdown length markings let you track how much cable you have used and how much is left.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• The cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 31231012

Product Type: Security & Control Cables

Rating: Plenum, CL3P, FT6

Length/Packaging: 1000' (304.8 m) Reel

Color: Natural

Wire Gauge: 14 AWG

Number of Conductors: 2

Number of Pairs: 1

Conductor Material: Bare Copper

Solid or Stranded: Stranded

Insulation Material: LS-PVC

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Weight: 35.40 lb

Installation notes

This is an indoor-only cable, so keep it out of outdoor and wet locations. Use the countdown markings to cut runs to length, and follow standard good practice on pulling tension and bend radius so the jacket and conductors are not damaged.
