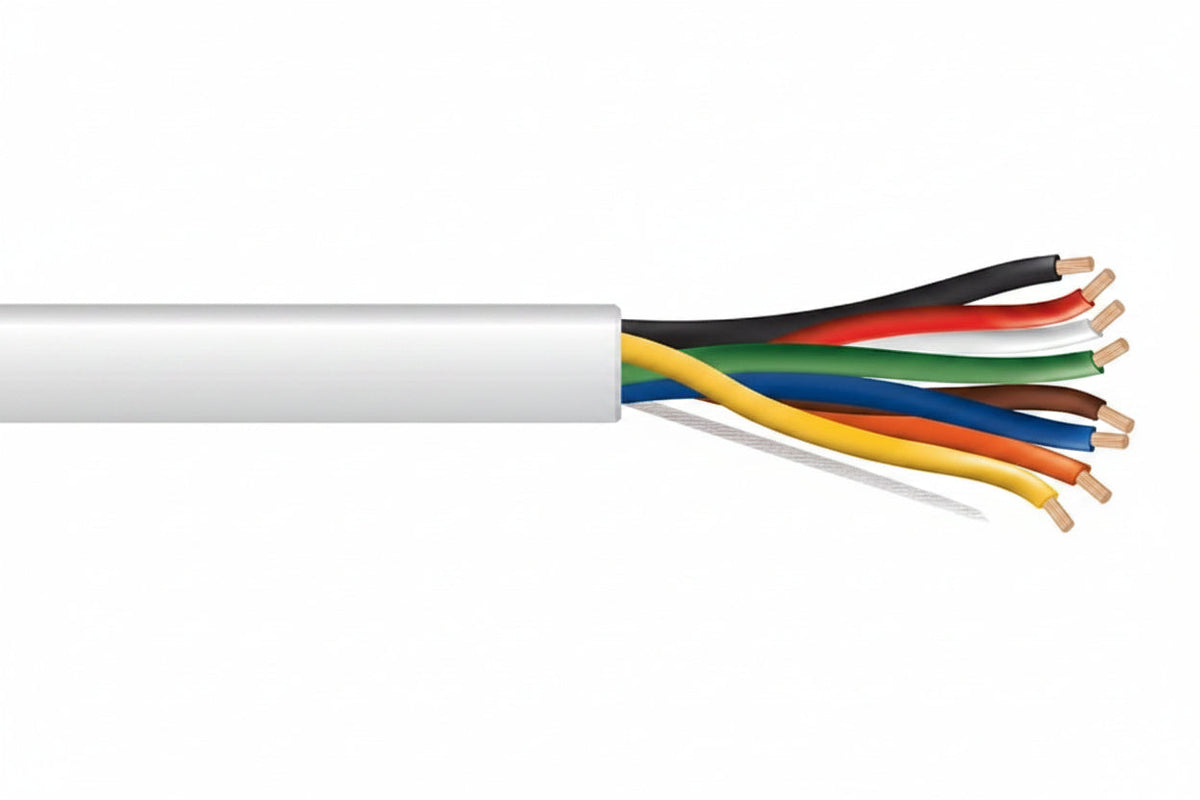

Genesis 31171012 18/8 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural

The Genesis 31171012 is an 18 AWG, 8-conductor stranded control cable with a plenum (CMP, FT6) jacket, supplied on a 1000′ (304.8 m) reel in natural. It suits installers running security and control wiring in indoor spaces, including air-handling areas that call for plenum-rated cable. Bare copper conductors, low-smoke PVC insulation and countdown length markings make it easier to pull, track and strip on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much is left.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is REACH and RoHS compliant.

Specifications

Brand: Genesis

Model: 31171012

Product type: Security & Control Cables

Rating: Plenum, CMP, FT6

Length and packaging: 1000′ (304.8 m) reel

Color: Natural

American wire gauge: 18 AWG

Core/cladding diameter: 18/8

Number of conductors: 8

Conductor construction: Stranded

Conductor material: Bare copper

Insulation material: LS-PVC

Shielding: No

Armored: No

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 53.60 lb

Installation notes

This is an indoor, unshielded cable, so keep it away from sources of electrical noise and do not route it outdoors. Use the countdown markings to plan your pulls, and avoid sharp bends or excessive pulling tension to protect the conductors and jacket.
