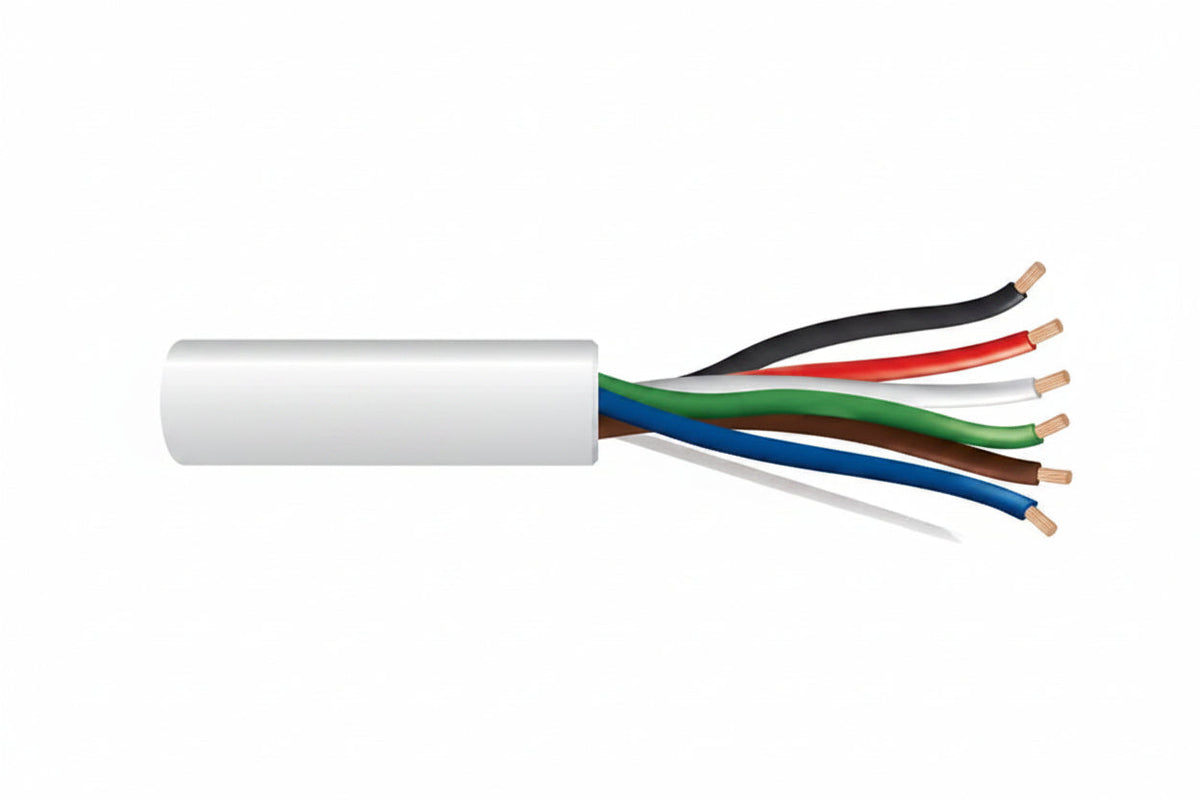

Genesis 31161012 18/6 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural

The Genesis 31161012 is an 18 AWG, 6-conductor stranded unshielded control cable in a plenum-rated (CMP, FT6) jacket, supplied on a 1000' (304.8 m) reel in natural. It suits installers running low-voltage control and security wiring indoors, where a plenum-rated cable is needed. Bare copper conductors, low-smoke PVC insulation and countdown length markings make it easier to pull and track on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings help you track how much cable you have used and how much is left.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 31161012

Product type: Security & Control Cables

Rating: Plenum, CMP, FT6

Length and packaging: 1000' (304.8 m) reel

Color: Natural

American Wire Gauge: 18 AWG

Number of conductors: 6

Solid or stranded: Stranded

Conductor material: Bare copper

Insulation material: LS-PVC

Shielding: No

Armored: No

Indoor/outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 41.50 lb

Installation notes

This cable is rated for indoor use only, so plan the route to stay inside the building. Use the countdown markings to cut runs to length, and use the rip cord to open the jacket cleanly before terminating each conductor.
