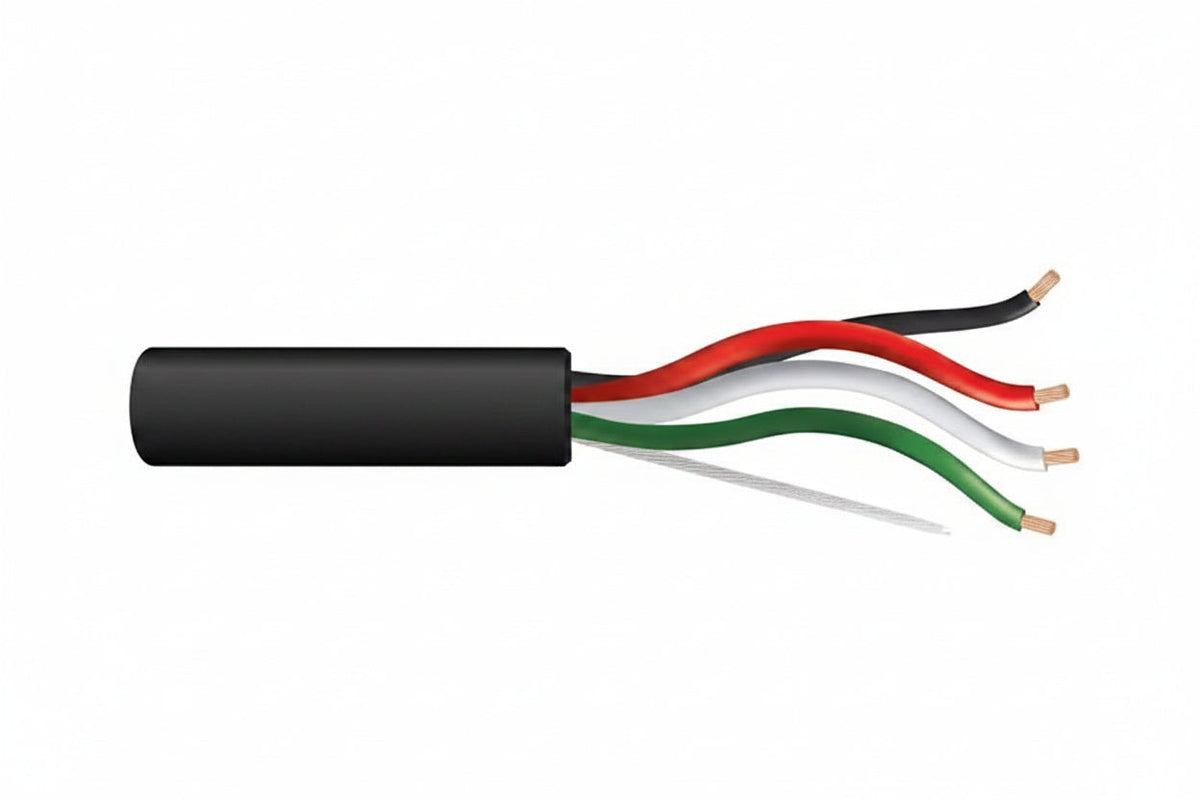

Genesis 31151108 18/4 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Black

The Genesis 31151108 is an 18 AWG, 4-conductor stranded bare copper control and security cable on a 1000' (304.8 m) pull box in black. It is plenum rated (CMP, FT6) and unshielded, which suits indoor installers running low-voltage control, security or fire-related wiring through air-handling spaces. Low-smoke PVC insulation, a rip cord for easy jacket removal and countdown length markings make the long run easier to work with.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings help you track how much cable you have used and how much remains.
• Rated for 300 volts and for temperatures from -20 °C to 75 °C.
• REACH and RoHS compliant.

Specifications

Brand: Genesis

Model: 31151108

Product Type: Security & Control Cables

Rating: Plenum, CMP, FT6

Length and Packaging: 1000' (304.8 m) Pull Box

Color: Black

American Wire Gauge: 18 AWG

Core/Cladding Diameter: 18/4

Number of Conductors: 4

Solid or Stranded: Stranded

Conductor Material: Bare Copper

Insulation Material: LS-PVC

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Installation notes

This cable is for indoor use only, so keep it out of outdoor or wet runs. Pull it from the box without kinking, and use the length markings to plan cuts and keep track of leftover cable.
