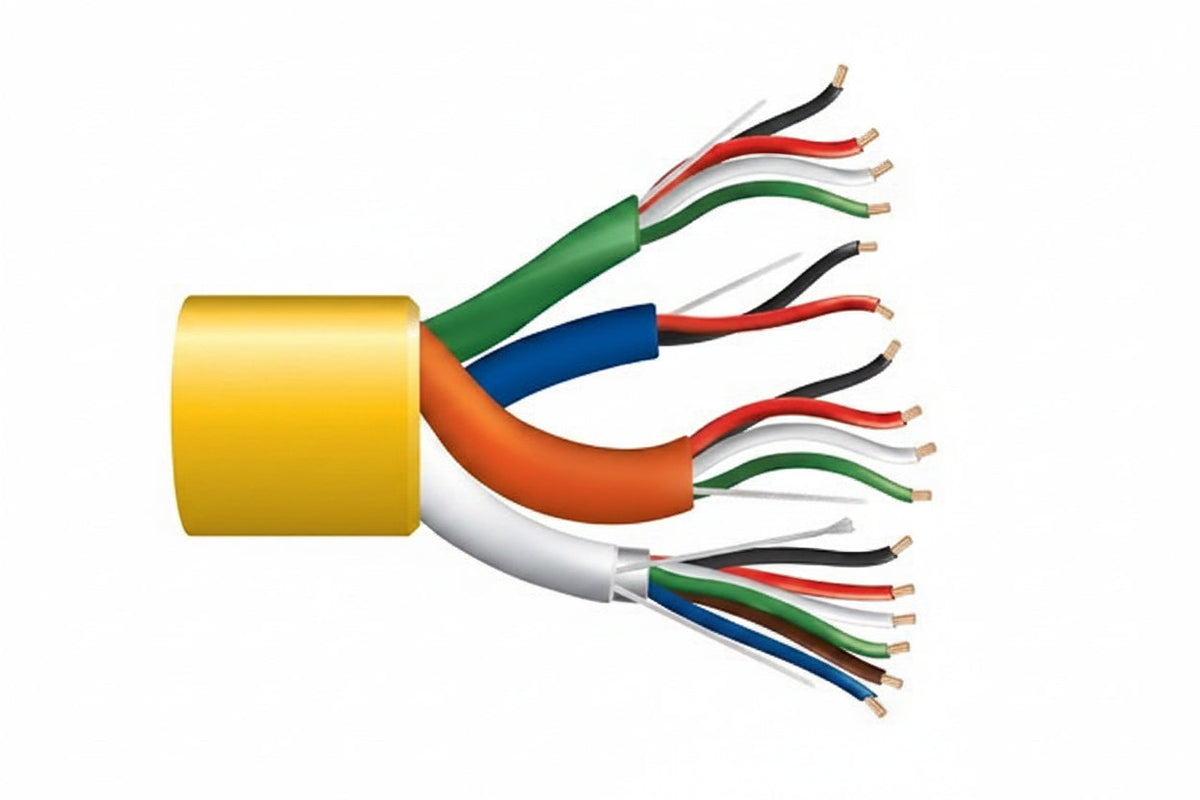

Genesis 21965002 22/6 Stranded Shielded + 22/4 Stranded + 22/2 Stranded + 18/4 Stranded Composite Access Control Cable, Riser, CMR, FT4, 500' (152.4 m) Reel, Yellow

The Genesis 21965002 is a 500' (152.4 m) reel of yellow riser-rated (CMR, FT4) composite access control cable that combines four stranded bare copper cable types in one jacket: 22/6 shielded, 22/4, 22/2 and 18/4. It suits installers running card readers, locks and related devices to a door without pulling separate cables. The shielded card reader component and the countdown length markings make it easy to work with on the job.

Key features

• Bare copper conductors give excellent conductivity and low voltage drop.
• The card reader component is shielded.
• A rip cord lets you strip and remove the PVC jacket efficiently.
• Countdown length markings make it easy to track how much cable you have used and how much is left.
• It is rated for 300V and for -20 °C to 75 °C.
• It is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 21965002

Product Type: Security & Control Cables

Construction: 22/6 Stranded Shielded + 22/4 Stranded + 22/2 Stranded + 18/4 Stranded

Rating: Riser, CMR, FT4

Length: 500' (152.4 m) Reel

Color: Yellow

Number of Conductors: 16

American Wire Gauge: 22AWG

Solid or Stranded: Stranded

Conductor Material: Bare Copper

Insulation Material: PP

Jacket: PVC

Shielding: Yes

Armored: No

Indoor/Outdoor: Indoor

Voltage Rating: 300V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Weight: 41.20 lb

Installation notes

This cable is for indoor use, so plan your run inside the building and keep it within its stated temperature range. Use the rip cord to open the jacket, and terminate the shield properly at the card reader end so it can do its job.
