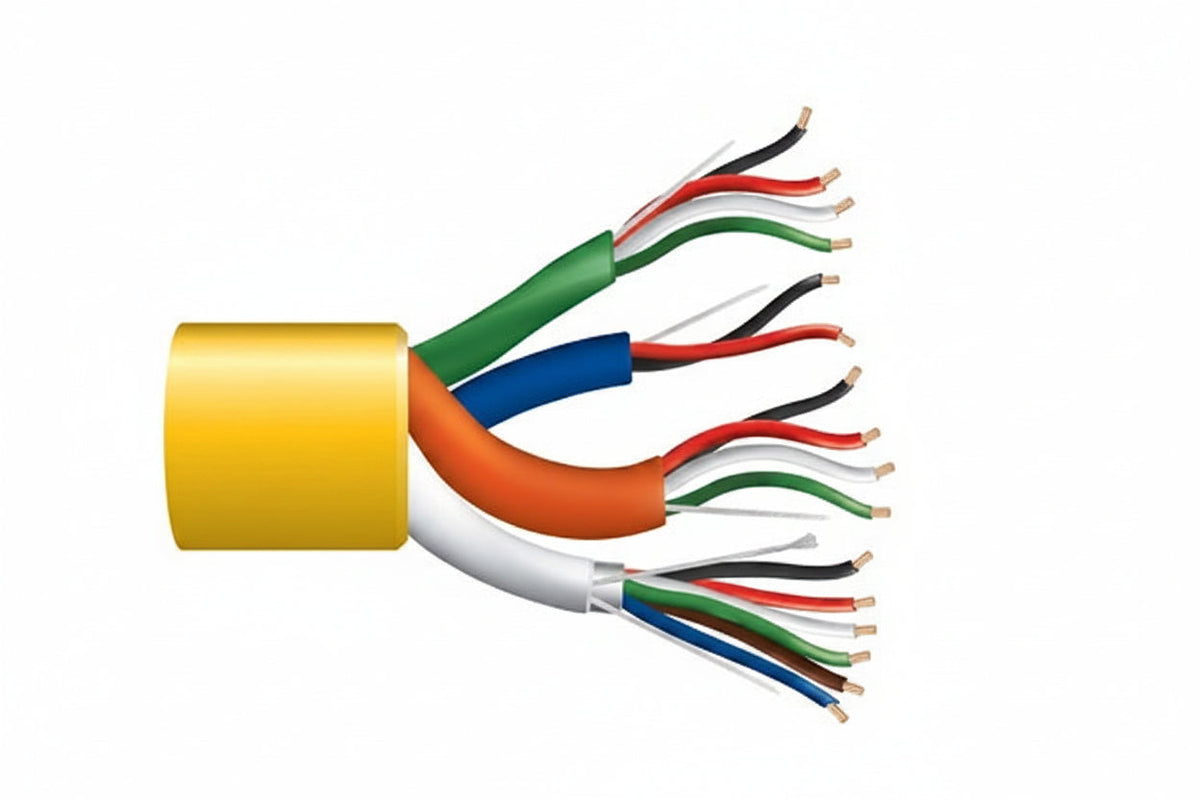

Genesis 21961002 22/6 Stranded Shielded + 22/4 Stranded + 22/2 Stranded + 18/4 Stranded Composite Access Control Cable, Riser, CMR, FT4, 1000' (304.8 m) Reel, Yellow

The Genesis 21961002 is a 1000' (304.8 m) reel of yellow composite access control cable that puts four stranded, bare copper cable types in one riser-rated jacket. It suits installers running card readers and related low-voltage devices indoors, and the shielded 22/6 pair for the reader keeps that run protected. Countdown length markings and a rip cord make it easier to track usage and strip the jacket on the job.

Key features

• Bare copper conductors give excellent conductivity and low voltage drop.
• The card reader component is shielded.
• A durable rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to see how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• The jacket is sunlight resistant (UV) rated, and the cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 21961002

Product type: Riser Cable (Security & Control Cables)

Construction: 22/6 Stranded Shielded + 22/4 Stranded + 22/2 Stranded + 18/4 Stranded

Rating: Riser, CMR, FT4

Length and packaging: 1000' (304.8 m) reel

Color: Yellow

Number of conductors: 16

American wire gauge: 22AWG

Conductor material: Bare Copper

Solid or stranded: Stranded

Insulation material: PP (polypropylene)

Jacket: PVC

Shielding: Yes

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 80.00 lb

Installation notes

Identify each cable type at both ends before pulling, and keep the shielded reader pair separate from the other runs when terminating so the shield stays intact. Use the rip cord to open the jacket cleanly instead of cutting into the conductors, and leave enough slack at the reader and panel for service.
