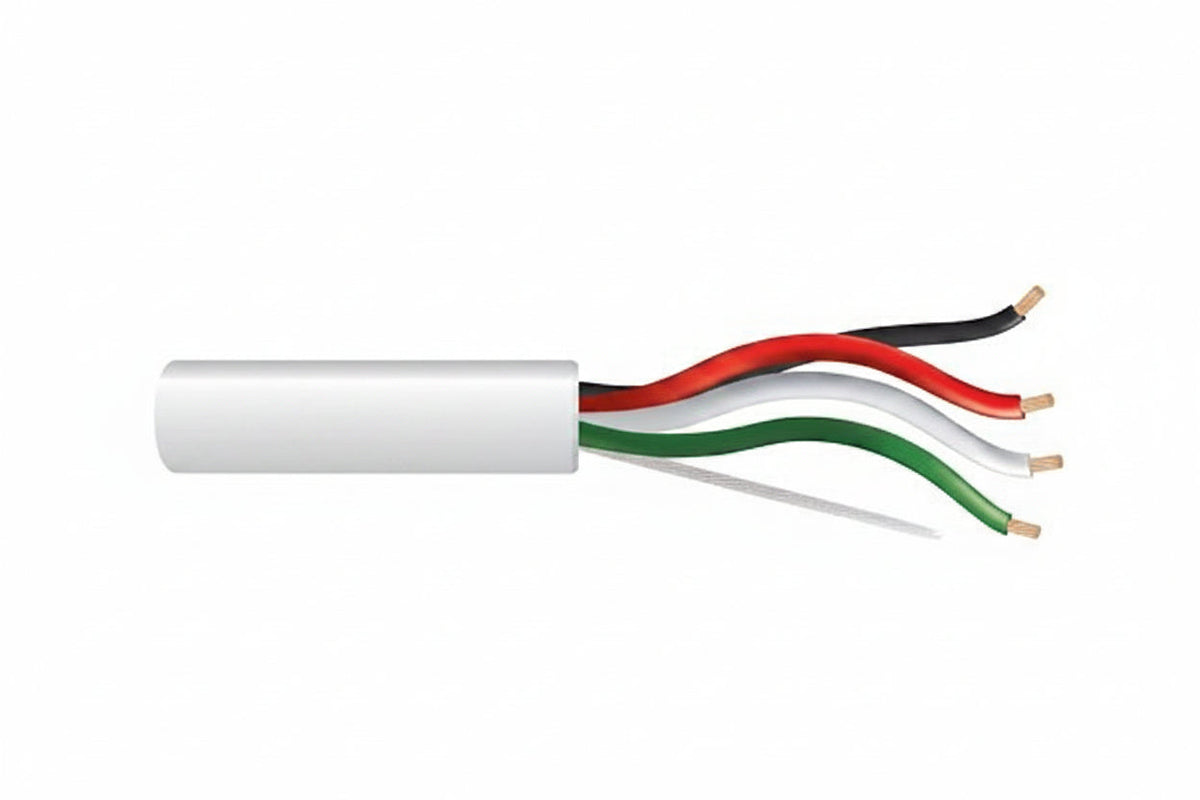

Genesis 21155501 18/4 Stranded Unshielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, White

The Genesis 21155501 is an 18 AWG, 4-conductor stranded, unshielded security and control cable with a white PVC jacket, supplied in a 500' (152.4 m) pull box. It is riser rated (CMR, FT4) for indoor runs, making it a fit for alarm, access control and other low-voltage wiring that passes between floors. Bare copper conductors, a rip cord for jacket removal and countdown length markings make it easier to pull, strip and track on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• The cable is UV (sunlight) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 21155501

Product Type: Security & Control Cables

Rating: Riser, CMR, FT4

Length and Packaging: 500' (152.4 m) Pull Box

American Wire Gauge: 18AWG

Number of Conductors: 4

Conductor Material: Bare Copper

Solid or Stranded: Stranded

Insulation Material: PP

Shielding: No

Armored: No

Color: White

Indoor/Outdoor: Indoor

Voltage Rating: 300 Volts

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Installation notes

Use the countdown markings to measure each run before cutting so you leave enough slack at both ends. Because this cable is unshielded, route it away from high-voltage power wiring, and follow local code for riser pathways and firestopping where it passes through floors.
