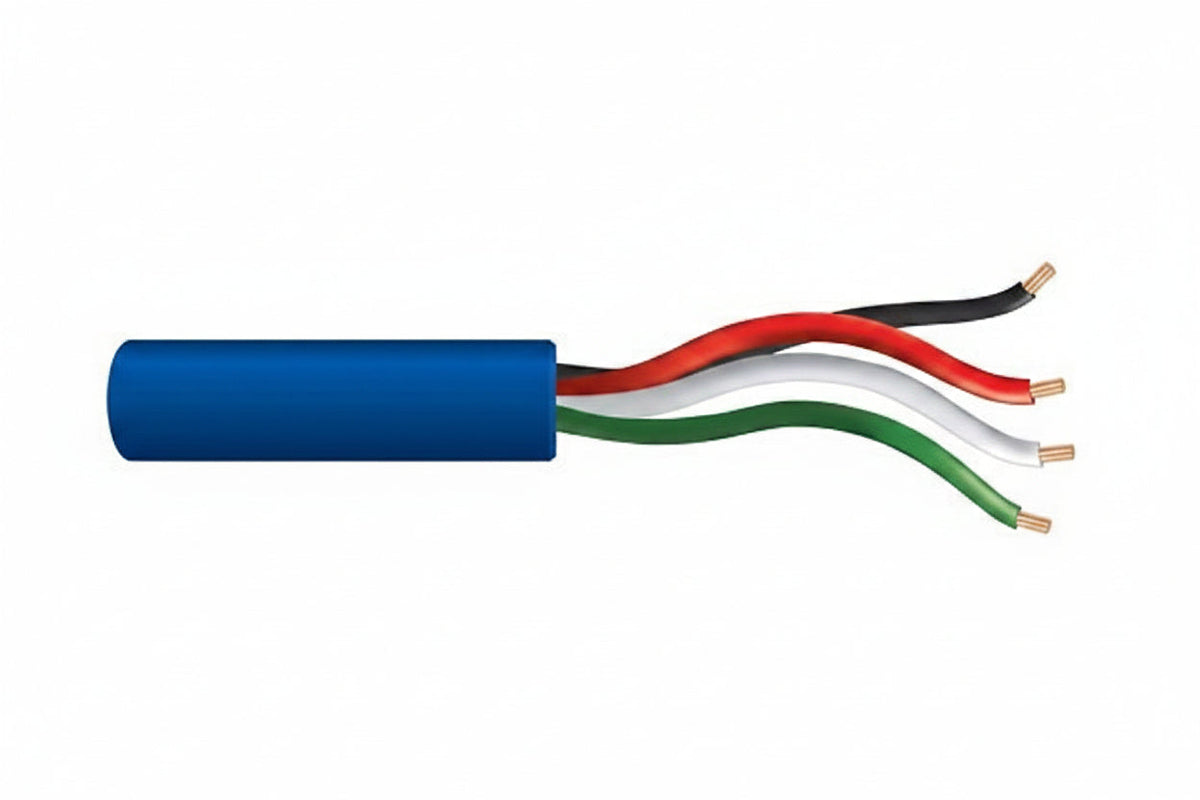

Genesis 21045806 22/4 Stranded Unshielded Cable, Riser, CMR, FT4, 500' (152.4 m) Speed Bag, Blue

The Genesis 21045806 is a 500-foot speed bag of 22 AWG, 4-conductor stranded unshielded cable with a blue PVC jacket and a riser (CMR, FT4) rating. It carries power and signal for security, controls, audio and other low-voltage runs, which makes it a practical pull for installers working indoors. Bare copper conductors, a rip cord and sequential length marking round out the package.

Key features

• Bare copper conductors give good conductivity and keep voltage drop low.
• A built-in rip cord makes it quicker to strip and remove the jacket.
• Sequential length marking lets you track how much cable you have used.
• Polypropylene insulation sits under a PVC jacket.
• It is rated for 300V and for temperatures from -20 °C to 75 °C.
• The jacket is sunlight resistant (UV) rated, and the cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 21045806

Product type: Security & Control Cables

Gauge: 22 AWG

Conductors: 4

Conductor material: Bare copper

Construction: Stranded

Shielding: No (unshielded)

Armored: No

Insulation: Polypropylene (PP)

Jacket: PVC

Rating: Riser, CMR, FT4

Voltage rating: 300V

Temperature rating: -20 °C to 75 °C

Length: 500′ (152.4 m)

Packaging: Speed bag

Color: Blue

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

Pull the cable from the speed bag without kinking it, and use the length markings to cut runs to size and keep track of what is left. Keep it away from sharp edges and from power wiring, and use the rip cord to open the jacket cleanly before terminating.
