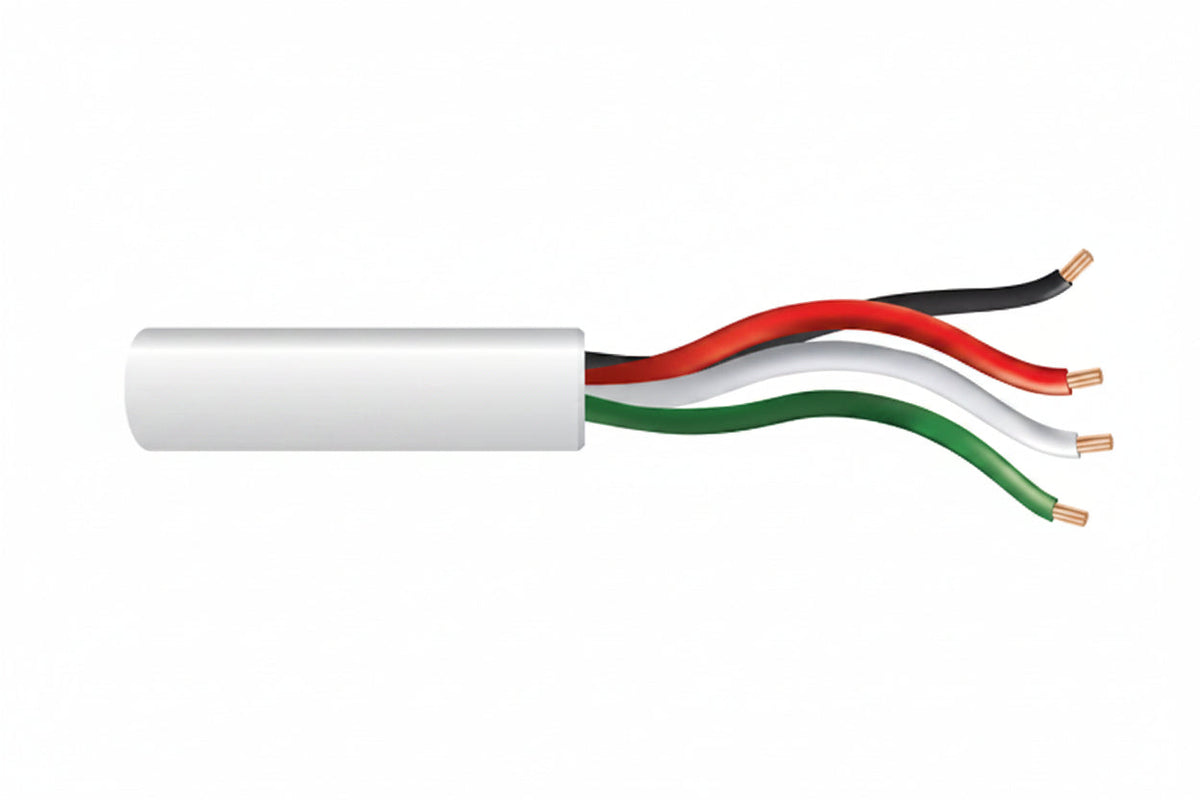

Genesis 21045501 22/4 Stranded Unshielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, White

The Genesis 21045501 is a 22 AWG, 4-conductor stranded, unshielded riser (CMR, FT4) cable supplied in a 500' (152.4 m) pull box in white. It suits indoor security, controls, audio and other low-voltage runs where a riser-rated cable is needed. Bare copper conductors, a rip cord for easy jacket stripping and countdown length markings make it practical to work with on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you have used and how much is left.
• Rated for 300 volts and for temperatures from -20 °C to 75 °C.
• Sunlight resistant (UV) rated, and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 21045501

Product type: Riser Cable

Gauge: 22 AWG

Number of conductors: 4

Conductor material: Bare Copper

Construction: Stranded

Shielding: No (unshielded)

Armored: No

Rating: CMR, FT4

Insulation: Polypropylene (PP)

Jacket: PVC

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environment: Indoor

Color: White

Length: 500' (152.4 m) pull box

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

Pull cable from the box without twisting or kinking it, and keep it away from sources of electrical noise since this cable is unshielded. Use the rip cord to open the jacket cleanly and leave enough slack at each termination for service.
