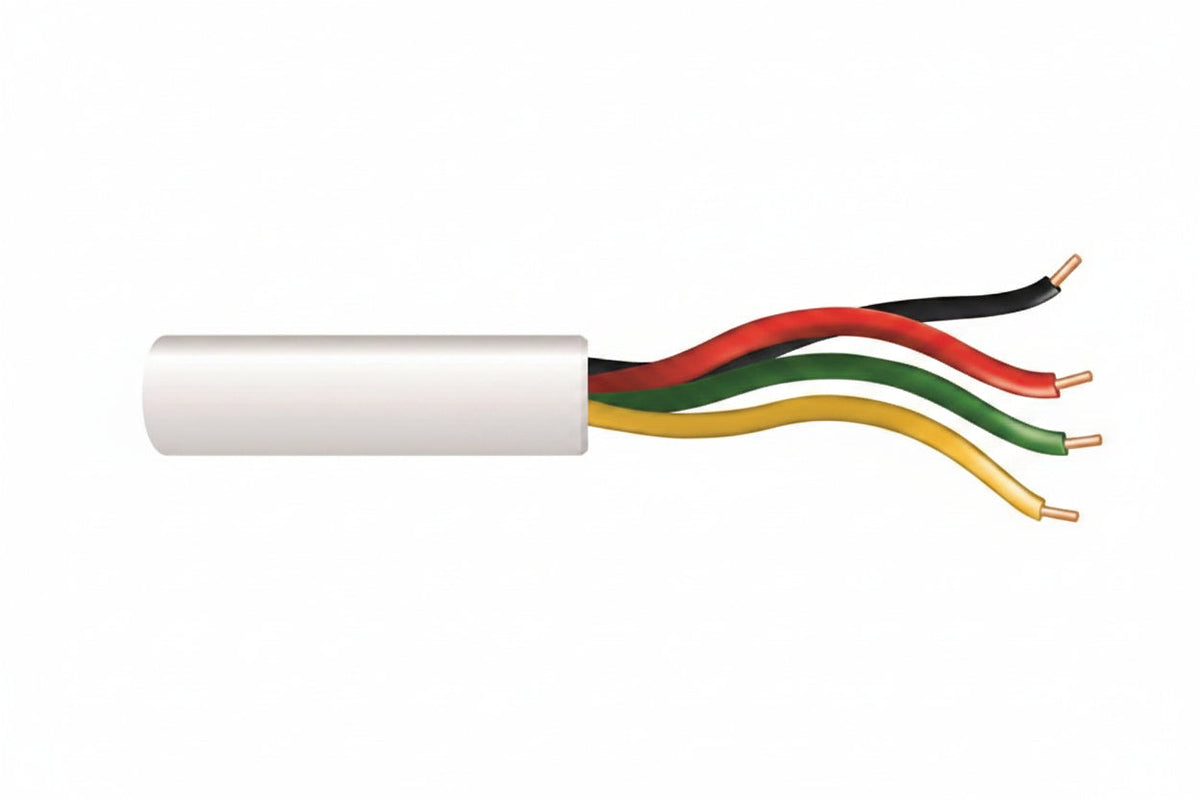

Genesis 21031101 22/4 Solid Unshielded Cable, Riser, CMR, FT4, 1000' (304.8m) Pull Box, White

The Genesis 21031101 is a 22 AWG, 4-conductor solid unshielded control cable in a 1000' (304.8 m) pull box, white, rated Riser (CMR) and FT4. It suits installers running low-voltage security and control wiring inside buildings. Bare copper conductors, a built-in rip cord and countdown length markings make it easy to pull, strip and track on longer runs.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much is left.
• It is rated for 300V and for temperatures from -20 °C to 75 °C.
• It carries a sunlight resistant (UV) rating and is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 21031101

Product Type: Security & Control Cables

Gauge: 22 AWG

Number of Conductors: 4

Conductor Material: Bare Copper

Solid or Stranded: Solid

Shielding: No (unshielded)

Armored: No

Insulation Material: PP (polypropylene)

Jacket: PVC

Rating: Riser, CMR, FT4

Voltage Rating: 300V

Temperature Rating: -20 °C to 75 °C

Length: 1000' (304.8 m)

Packaging: Pull Box

Color: White

Indoor/Outdoor: Indoor

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Installation notes

Feed the cable straight from the pull box to avoid kinks and twists, and use the countdown markings to cut runs to length without waste. Keep it away from sources of electrical noise since it is unshielded, and use the rip cord to open the jacket cleanly before terminating.
