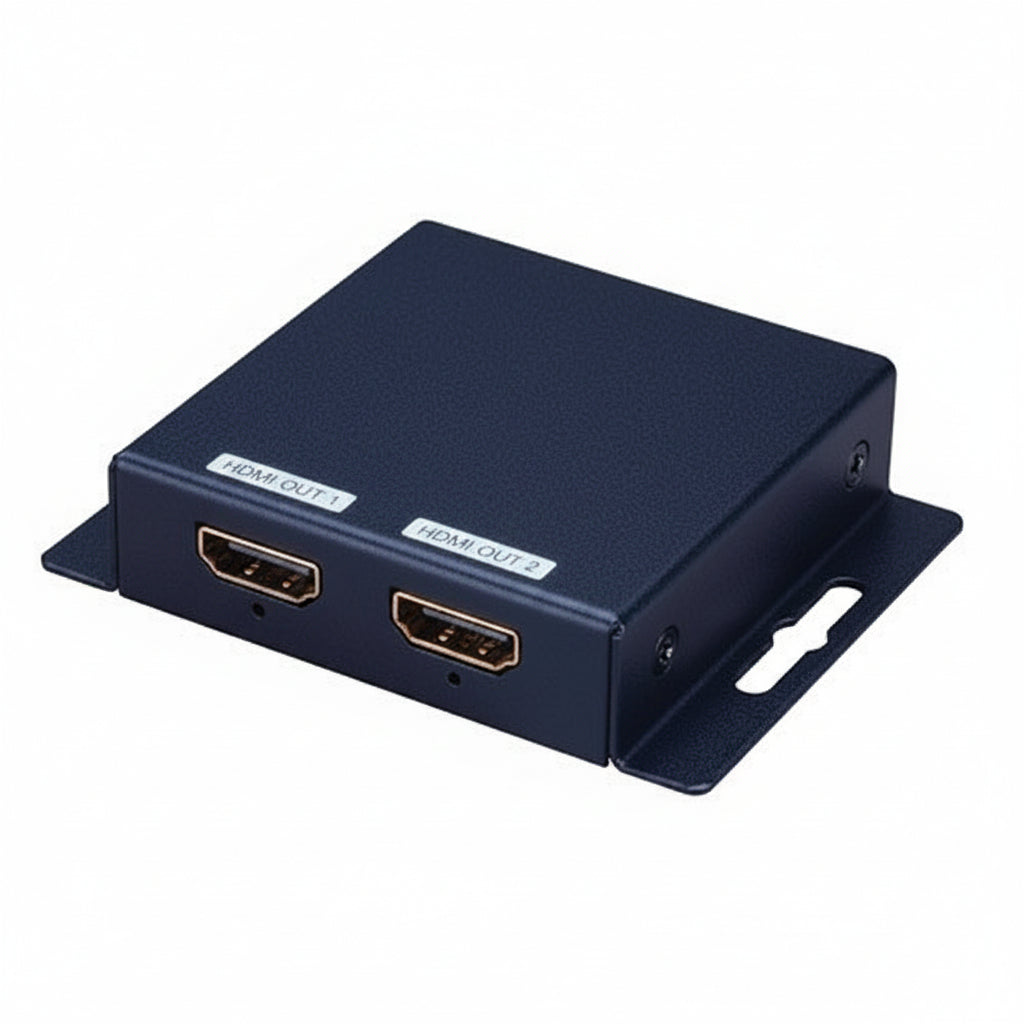

Evolution EVSP12SC 4K HDMI 1x2 Splitter with EDID and Scaling

The Evolution EVSP12SC is a 4K HDMI 1x2 splitter that sends one HDMI source to two displays at the same time. It suits installers and AV integrators who need to feed a 4K display and a 1080p display from one source. It stands out for its built-in downscaling and EDID management, which help the source and both displays agree on a compatible signal.

Key features

• Sends audio and video from one input to two HDMI outputs at resolutions up to 4K2K.
• Supports 4K and 1080p resolutions at the same time, and downscales to 1080p for lower-resolution displays.
• Handles 4K at 60 Hz with 8 bit YCBCR 4:4:4 color sampling, or 10 bit YCBCR 4:2:0 with HDR.
• Complies with HDCP 2.2 and 1.4.
• Offers 18Gbps of bandwidth across a 25 MHz to 600 MHz frequency range.
• Includes EDID management and a Micro-USB port for firmware updates to help with compatibility.

Specifications

Brand: Evolution

Model: EVSP12SC

Product Type: HDMI Splitter

Product Line: Evolution

Color: Black

Number of HDMI Inputs: 1

Number of HDMI Outputs: 2

Maximum Video Resolution: 3840 x 2160

Minimum Frequency: 25MHz

Maximum Frequency: 600.00MHz

Input Voltage: 5V DC

Depth: 1.60″

Weight: 0.20lb

Package Contents: 4K HDMI 1×2 Splitter with EDID and Scaling, DC 5V Power Supply, Product Manual

Installation notes

Place the splitter close to the source and use quality HDMI cables on the input and both outputs to keep the signal reliable. Power it with the supplied 5V DC adapter, and check the picture on both displays during commissioning. If a display has trouble negotiating a signal, review the EDID settings or update the firmware over Micro-USB.
