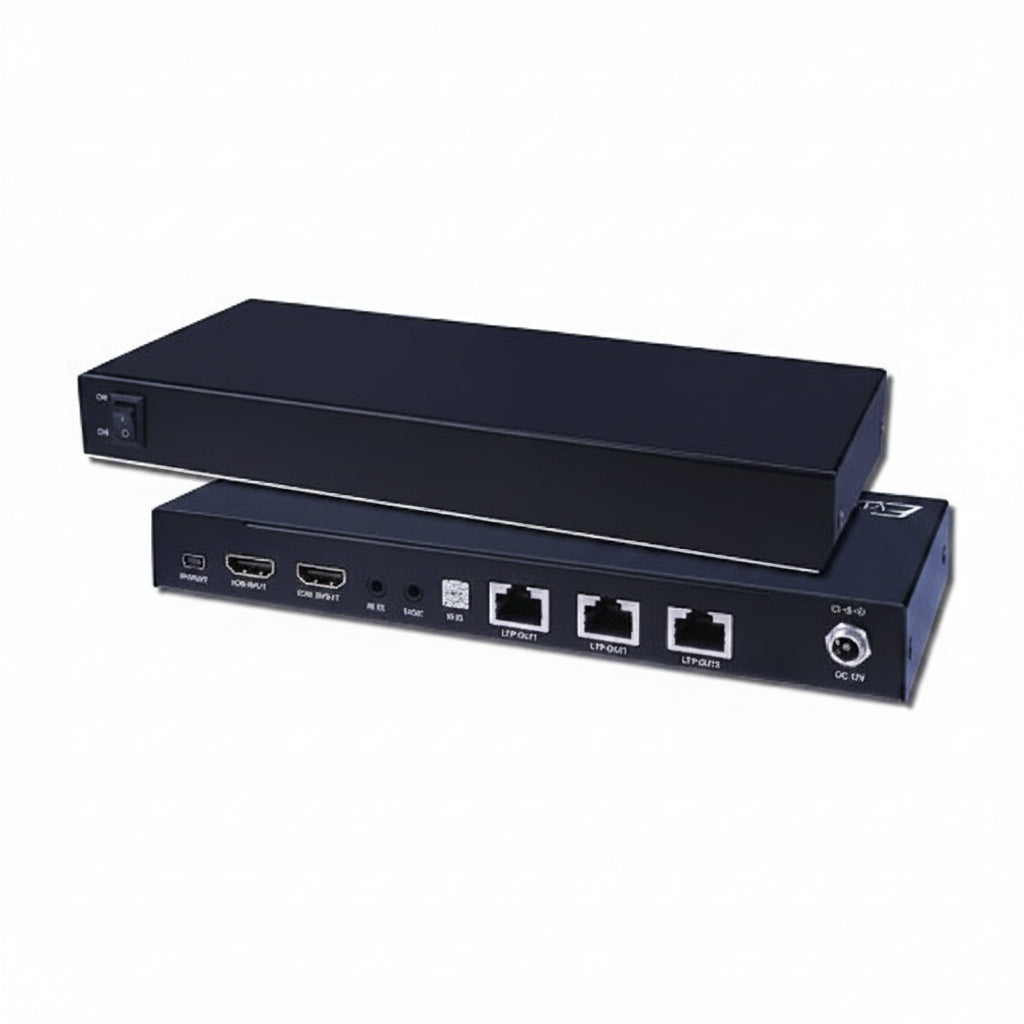

Evolution EVSP1013 HMDI 1x3 Splitter over CAT5e/CAT6 Cable with Additional HMDI Output

The Evolution EVSP1013 is an HDMI 1x3 splitter that sends one HDMI source to multiple displays over Cat5e/Cat6 cable, with a fourth HDMI output for a local screen. It suits installers building small distribution systems that need a single source on up to four displays. Its three RJ45 outputs carry power to the EVRX2006 receivers, so those remote receivers need no power supply of their own.

Key features

• Splits one HDMI input to four displays: three over Cat5e/Cat6 and one on the extra HDMI output.
• The three RJ45 ports connect to EVRX2006 PoE receivers (sold separately) and carry 1080p 60Hz video with audio and control up to 164'/50m.
• The additional HDMI output can feed a local display or cascade to another splitter for a larger system.
• EDID can be managed manually or dynamically, including blending the EDID of the four connected HDMI sinks.
• Passes 3D signal formats and multiple audio formats such as Dolby TrueHD and DTS-Master, and is HDCP 2.0 compatible.
• Supports 20-60kHz wideband bi-directional IR communication.

Specifications

Brand: Evolution

Model: EVSP1013

Product type: HDMI Splitter

Number of HDMI inputs: 1

Number of HDMI outputs: 1

Number of network (RJ-45) ports: 3

Maximum video resolution: 1920 x 1080

Maximum operating distance: 164'

Input voltage: 12V DC

Depth: 3.50″

Height: 1.00″

Weight: 1.20 lb

Country of origin: TW

Package contents: EVSP1013 splitter, 1 x IR blaster (TX), 1 x IR receiver (RX), 1 x DC 12V 2A power supply, product manual

Installation notes

Run each Cat5e/Cat6 link as a single continuous cable from the splitter's RJ45 port to its EVRX2006 receiver, keeping within the rated distance. Power the splitter from the supplied 12V DC adapter and confirm each display's picture and EDID behavior before closing up the install.
