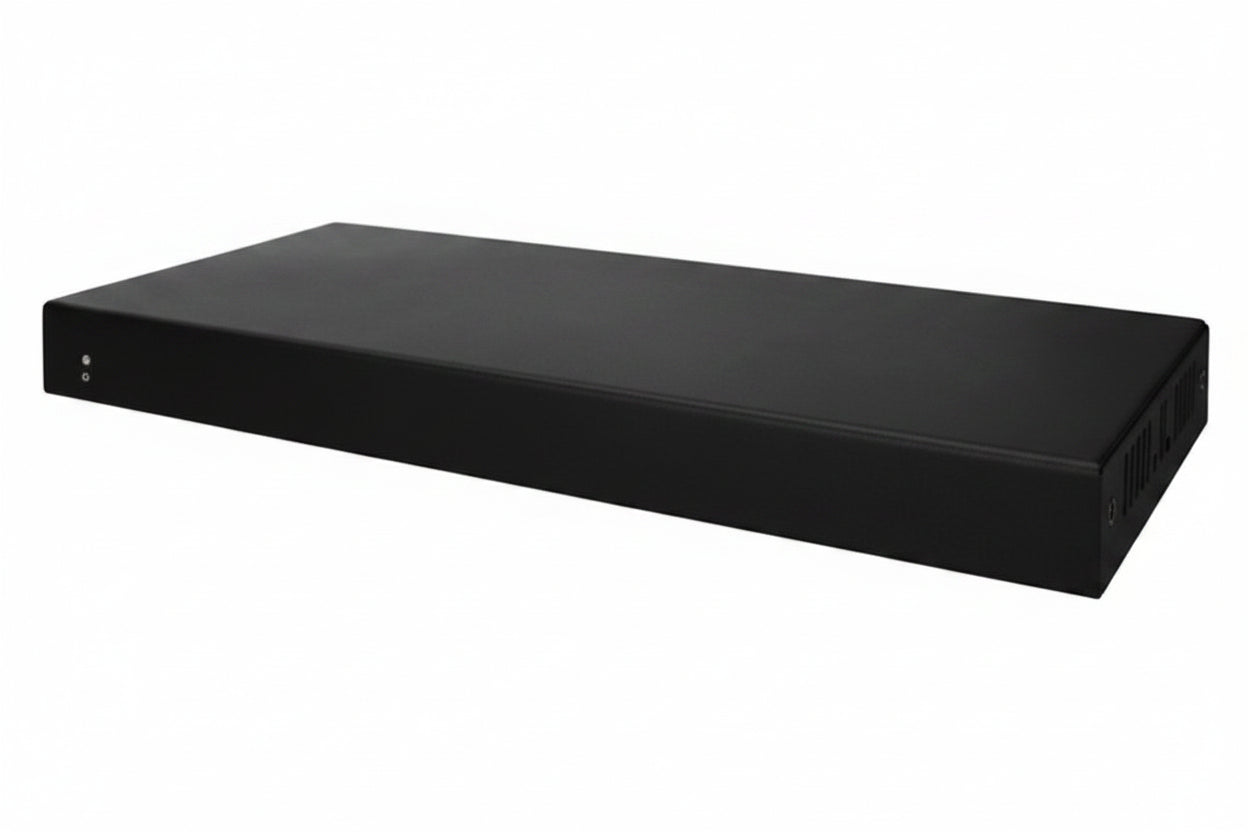

Evolution EV4K7014 4K 1x4 HDMI Splitter Over Cat6 Cable with HDMI Loop-out

The Evolution EV4K7014 is a 1x4 HDMI splitter that sends one source to multiple displays over Cat6 cable, with an extra HDMI loop-out for a local display or for cascading to another splitter. It suits installers building distribution systems for businesses or homes where displays sit far from the source. Its 4K at 60Hz range of up to 230' and PoE-powered receivers stand out.

Key features

• Splits a single source and extends it to several displays over Cat6.
• The additional HDMI output can feed a local display or cascade to another splitter.
• Carries 4K at 60Hz, 4:4:4 Chroma with HDR10 and IR up to 230', or 1080p up to 330', on a single Cat6 cable.
• Power over Ethernet runs the receivers without a separate power supply at each one.
• Latency is under 30ms, and bi-directional IR (20 to 60 kHz) handles source or display control.
• Auto and manual EDID options help with source and display compatibility, and the receivers include a digital audio breakout.

Specifications

Brand: Evolution

Model: EV4K7014

Product Type: HDMI Splitter

Product Line: Evolution

Maximum Video Resolution: 3840 x 2160

Number of HDMI Inputs: 1

Number of HDMI Outputs: 1

Maximum Operating Distance: 230'

Height: 1.5″

Length: 10.5″

Width: 4.5″

Weight: 1.50 lb

Country of Origin: CN

Installation notes

Keep the Cat6 runs within the distances listed for your resolution, and terminate them carefully so the PoE-powered receivers get stable power and signal. Choose EDID auto or manual during commissioning, and test each display location, including IR control, before closing up the install.
