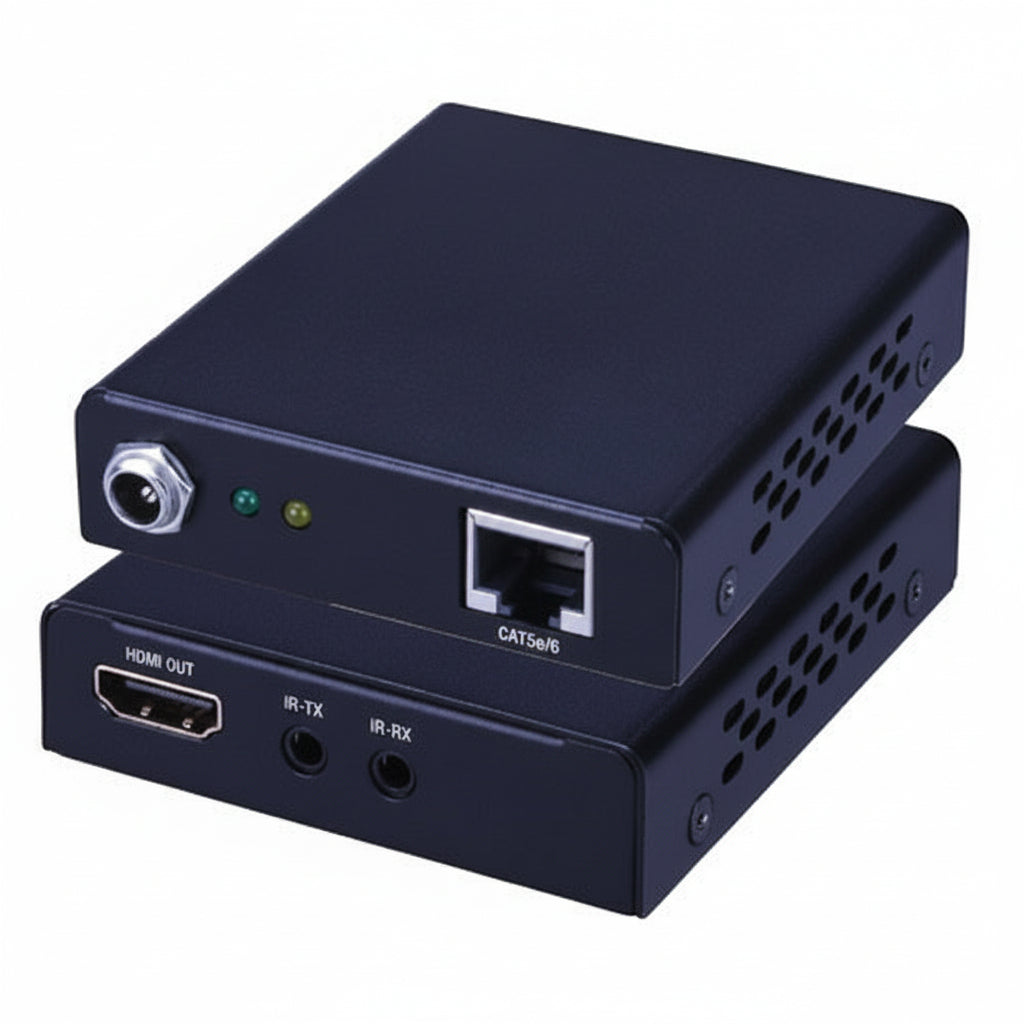

Evolution EV4K2006 Evolution 4K HDMI Extender, 60Hz, 4:4:4

The Evolution EV4K2006 is an HDMI extender kit from Evolution that sends HDMI audio and video from a source to a display over a single CAT5e or CAT6 cable. It suits installers who need to move a 4K signal across a room or building, with 4K 60Hz 4:4:4 supported up to 164'/50m. Power over Ethernet and bi-directional IR let one power supply run both units while keeping control of the source and display.

Key features

• Carries 4K 60Hz, 4:4:4 chroma up to 164'/50m, or 4K 30Hz, 4:4:4 chroma with HDR up to 130'/40m, over one CAT5e/6 cable.
• Power over Ethernet sends power through the cable, so the transmitter and receiver run from a single power supply.
• Wideband bi-directional IR, covering 20KHz to 60KHz, lets you control the source or the display. IR accessories are included.
• Auto EDID and EQ management supports plug-and-play installation.
• HDR10 compatible, HDCP 2.2 compliant, and works with HDMI and HDCP compliant devices.
• Slim, compact housings are easy to fit into tight spaces.

Specifications

Brand: Evolution

Model: EV4K2006

Product Type: Video Extender Transmitter/Receiver

Product Line: Evolution

Cable Type: Category 6

Media Type Supported: Twisted Pair

Connectivity Technology: Wired

Maximum Operating Distance: 164'

Maximum Video Resolution: 4096 x 2160

Graphics Mode: 4K UHD

HDMI Inputs: 1

HDMI Outputs: 1

Input Devices Supported: 1

Output Devices Supported: 1

Network (RJ-45): Yes

Network (RJ-45) Ports: 2

Color: Black

Length: 3.5″

Width: 2.7″

Depth: 3.3″

Height: 0.7″

Weight: 0.35 lb

Country of Origin: CN

Package Contents: 1 x Transmitter, 1 x Receiver, 2 x IR Blasters (TX), 2 x IR Receivers (RX), 1 x DC 12V In Line Power Supply, Product Manual

Installation notes

Run a single, properly terminated CAT5e or CAT6 cable between the transmitter and receiver, and connect the supplied power supply to just one unit, since PoE powers the other. Place the IR receivers and blasters with a clear line to the source and display, and confirm the picture and IR control before you close up walls or ceilings.
