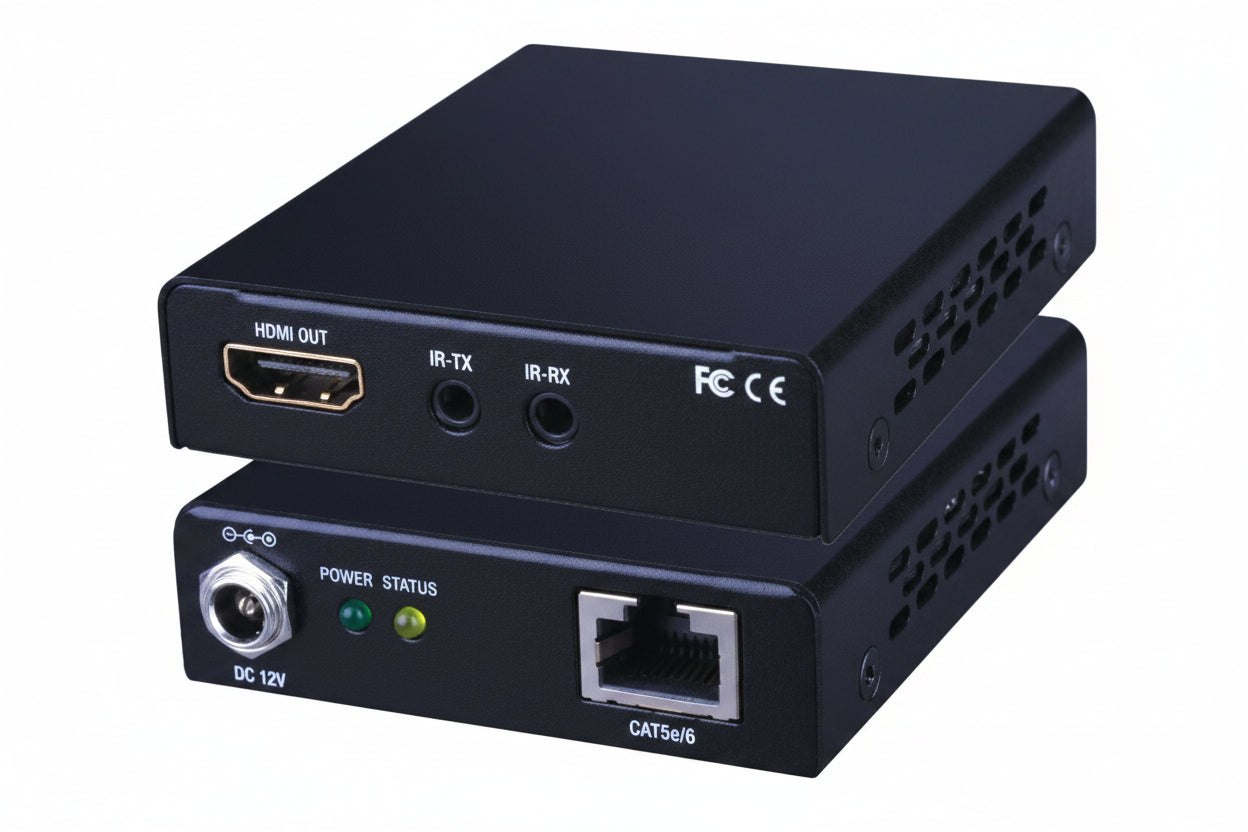

Evolution EVRX2006 HDMI POE Receiver, HDMI over Single Cat5e/Cat6 Cable

The Evolution EVRX2006 is an HDMI PoE receiver that carries HDMI audio and video over a single Cat5e or Cat6 cable to a display. It's meant to be paired with Evolution by Vanco matrix units or splitters that send HDMI over a single Cat5e/6 cable and support Power over Ethernet. Because the receiver is powered through the cable, it needs no power supply at the display end, and it includes IR accessories for controlling the source or display.

Key features

• Powers the receiver over the Cat5e/Cat6 run, so no power supply is needed at the receiver end.
• Extends HDMI up to 50m (164ft) from the source at Full HD 1080p, 24-bit color and 3D.
• Bi-directional wideband IR, from 20KHz to 60KHz, lets you control the source or the display.
• Auto EDID and EQ management is built in.
• Works with HDMI and HDCP compliant devices and is HDCP 2.0 compliant.
• Slim, compact housing.

Specifications

Brand: Evolution

Model: EVRX2006

Product Type: Video Extender Receiver

Product Line: Evolution

Cable Type: Category 6

Media Type Supported: Twisted Pair

Connectivity Technology: Wired

Maximum Video Resolution: 1920 x 1080

Graphics Mode: Full HD

Maximum Operating Distance: 164'

Number of HDMI Outputs: 1

Number of Network (RJ-45) Ports: 1

Number of Output Devices Supported: 1

Length: 3.50″

Depth: 3.25″

Weight: 0.20 lb

Country of Origin: CN

Package Contents: Evolution HDMI POE Receiver, IR TX, IR RX, Product Manual

Installation notes

Connect the receiver only to a PoE-capable Evolution by Vanco matrix or splitter output, since it takes its power from the cable. Run the Cat5e/Cat6 cable cleanly and keep it within the stated 164 ft limit, and place the IR emitter and receiver where they have a clear line to the source or display.
