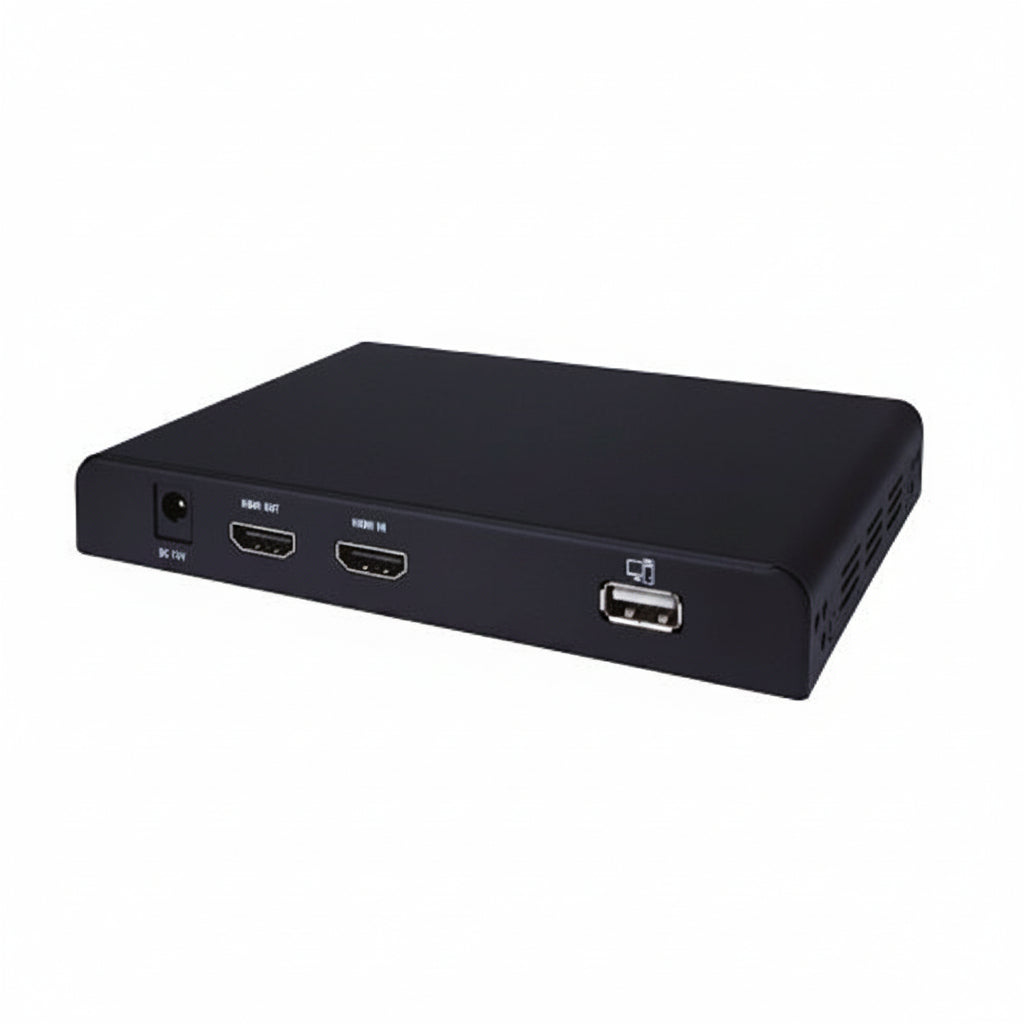

Evolution EVEXKVM3 HDMI Extender Over Single CAT6 with Digital Audio Breakout, HDMI Loop-Out, KVM and PoE

The Evolution EVEXKVM3 is a 4K HDMI extender with KVM that sends video, USB control and digital audio over a single CAT6 run. It suits installers who need to place a display, keyboard, mouse or touchscreen away from the source, with an HDMI loop-out at the transmitter. The optical audio breakout and PoE support make it a flexible fit for AV and control room setups.

Key features

• Carries USB control and data signals, so keyboards, mice and a touchscreen display work at the remote end.
• Dynamic EDID supports compatibility and plug-and-play operation.
• A digital optical audio breakout lets you extract the audio signal.
• Extends HDMI over a single CAT6 cable.
• Includes an HDMI loop-out alongside the extended output.

Specifications

Brand: Evolution

Model: EVEXKVM3

Product Type: KVM Extender

Product Line: Evolution

Connectivity Technology: Wired

Maximum Video Resolution: 4096 x 2160

Graphics Mode: 4K UHD

Maximum Operating Distance: 330'

Number of HDMI Ports: 3

Number of Network (RJ-45) Ports: 2

Number of USB Ports: 3

Depth: 1.1″

Weight: 0.80 lb

Country of Origin: CN

Package Contents: 1 x Transmitter, 1 x Receiver, USB Type A to USB Type A cable, 8 x mounting brackets, 18 x screws, product manual

Installation notes

Terminate and test the CAT6 run before mounting, and keep it within the rated operating distance. Use the supplied brackets and screws to secure the transmitter and receiver, and connect the USB cable between the transmitter and the source before commissioning.
