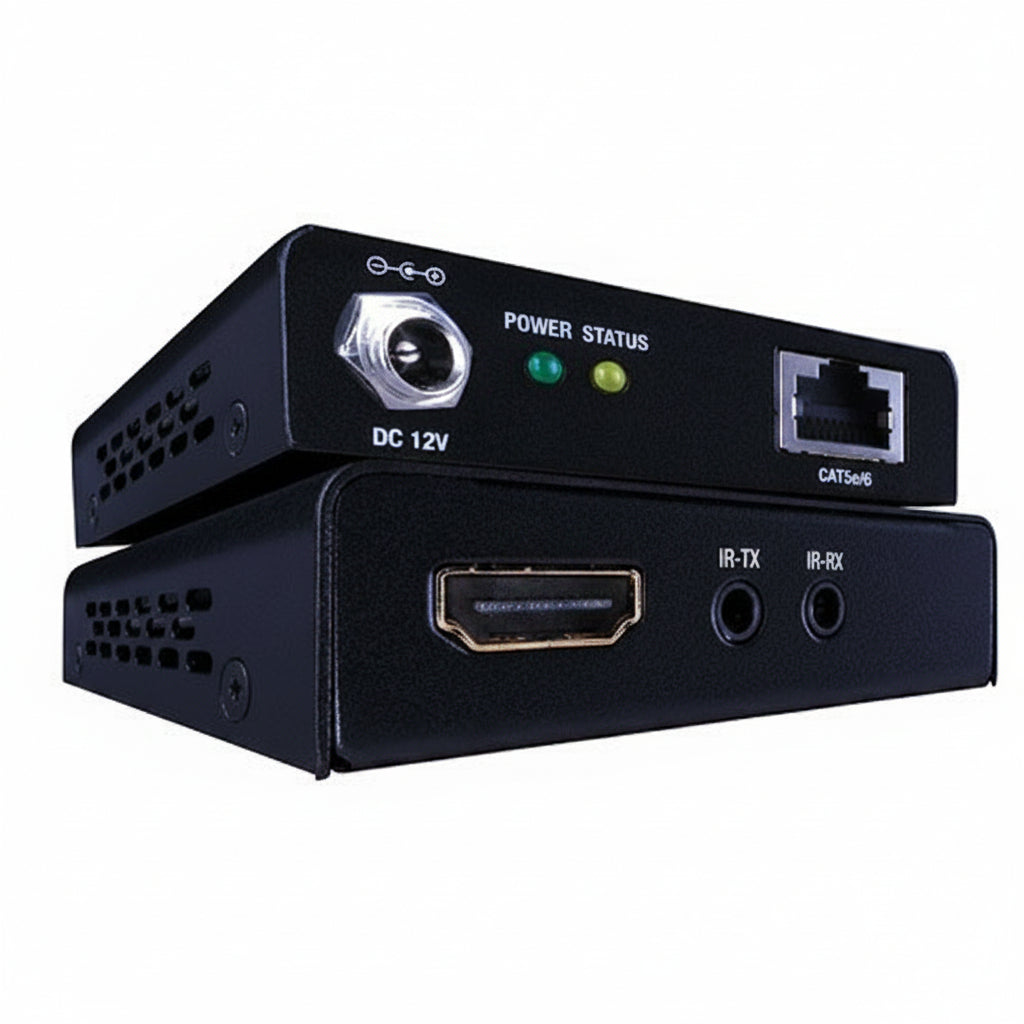

Evolution EVEX2006 Ultra Slim HMDI Over Single CAT5e/CAT6 Cable Extender with PoE

The Evolution EVEX2006 is an HDMI extender that sends audio and video from one source to one display over a single CAT5e or CAT6 cable, with power delivered over the same cable through PoE. It suits installers who need a slim, compact transmitter and receiver pair with bi-directional IR control and plug-and-play setup. It reaches up to 164' (50m) at Full HD 1080p.

Key features

• Carries HDMI audio and video over a single CAT5e or CAT6 cable, with Power over Ethernet support.
• Extends the signal up to 50m (164') from the HDMI source at Full HD 1080p, 24-bit color and 3D.
• Auto EDID and EQ management supports plug-and-play installation.
• Wideband bi-directional IR, 20KHz to 60KHz, lets you control the source or the display, with IR accessories included.
• Passes uncompressed 7.1ch digital audio and works with HDMI and HDCP compliant devices.
• Units can be cascaded to build a larger distribution system.

Specifications

Brand: Evolution

Model: EVEX2006

Product type: Video Extender Transmitter/Receiver

Product line: Evolution

Cable type: Category 6

Media type supported: Twisted Pair

Connectivity technology: Wired

Maximum operating distance: 164'

Maximum video resolution: 1920 x 1080

Graphics mode: Full HD

HDMI inputs: 1

HDMI outputs: 1

Input devices supported: 1

Output devices supported: 1

Network (RJ-45): Yes

Network (RJ-45) ports: 2

Color: Black

Dimensions: 2.7″ x 0.7″ x 3.25″

Width: 2.70″

Height: 0.70″

Depth: 3.25″

Length: 3.50″

Weight: 0.20 lb

Country of origin: TW

Package contents: Transmitter, Receiver, 2 x IR Blasters (TX), 2 x IR Receivers (RX), 1 x DC 12V in-line power supply, Product Manual

Installation notes

Use a single continuous, properly terminated CAT5e or CAT6 run between the transmitter and receiver, and keep it within the rated distance. Because of the slim profile, place the units where the HDMI and IR cables can be routed without strain, and confirm the IR blasters and receivers have a clear line of sight to the source and display before closing up the install.
