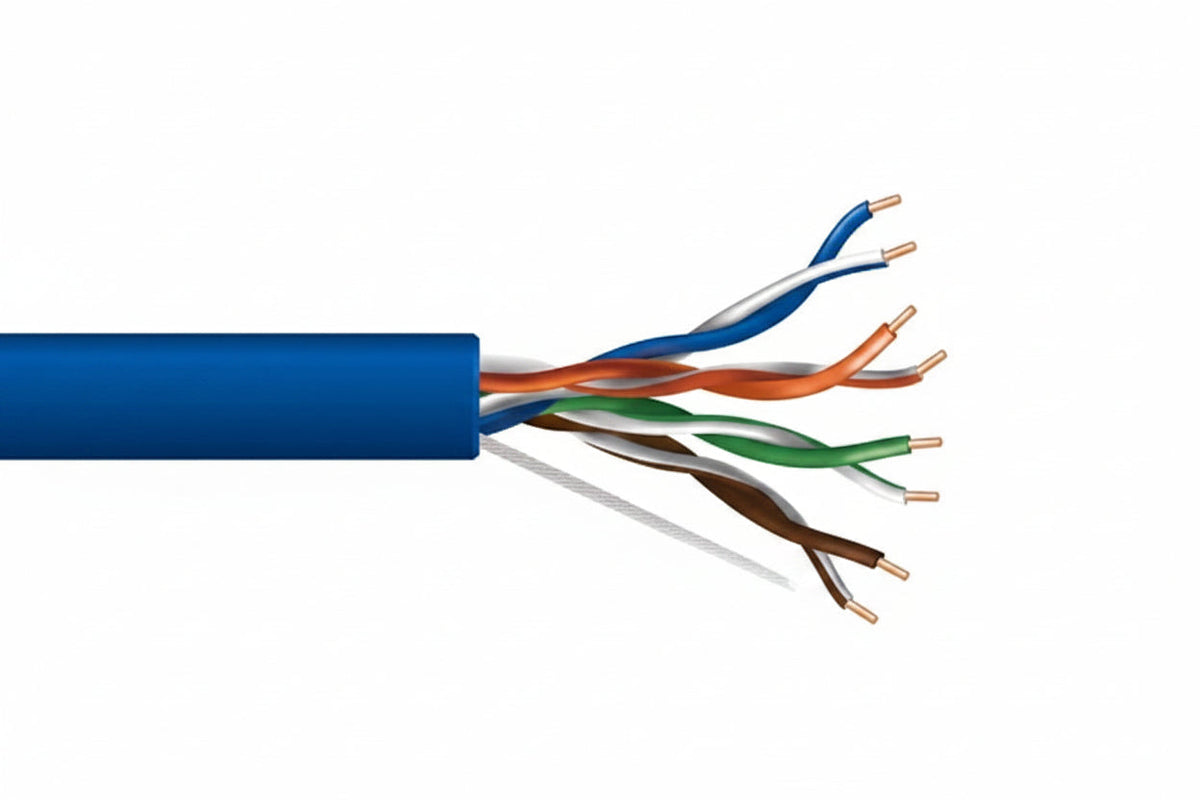

Genesis 63602106 23/4-Pair Cat 6 Unshielded (U/UTP) Networking Cable, Riser, CMR, 1000' (304.8 m) Reel-in-a-Box, Blue

The Genesis 63602106 is a 1,000' (304.8 m) reel-in-a-box of blue 23/4-pair Cat 6 unshielded (U/UTP) networking cable, riser-rated CMR. It carries Ethernet runs for installers and businesses who need a bulk spool of indoor Cat 6. Solid bare copper conductors and countdown length markings make it practical for larger pulls.

Key features

• Bare copper conductors support strong signal transmission with low voltage drop.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• The PVC jacket is sunlight resistant (UV) rated.
• Rated for 300V and for temperatures from -20 °C to 75 °C.
• REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 63602106

Product type: Ethernet Cables

Category: Cat 6

Length: 1000' (304.8 m)

Packaging: Reel-in-a-Box

Rating: Riser, CMR

Color: Blue

Shielding: No (U/UTP)

Pairs: 4

Number of conductors: 8

Conductor material: Bare Copper

Solid or stranded: Solid

American wire gauge: 23AWG

Insulation: Polypropylene or Polyethylene (PE listed in specs)

Jacket: PVC

Impedance: 100 Ohm

Voltage rating: 300V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Armored: No

Environmental certification: RoHS

TAA compliant: No

Country of origin: VN

Weight: 31.80 lb

Installation notes

Pull the cable from the box without kinking it, and keep bends gentle to protect the pairs. Use the countdown markings to plan each run and cut to length, then terminate and test every run before closing up the ceiling or wall.
