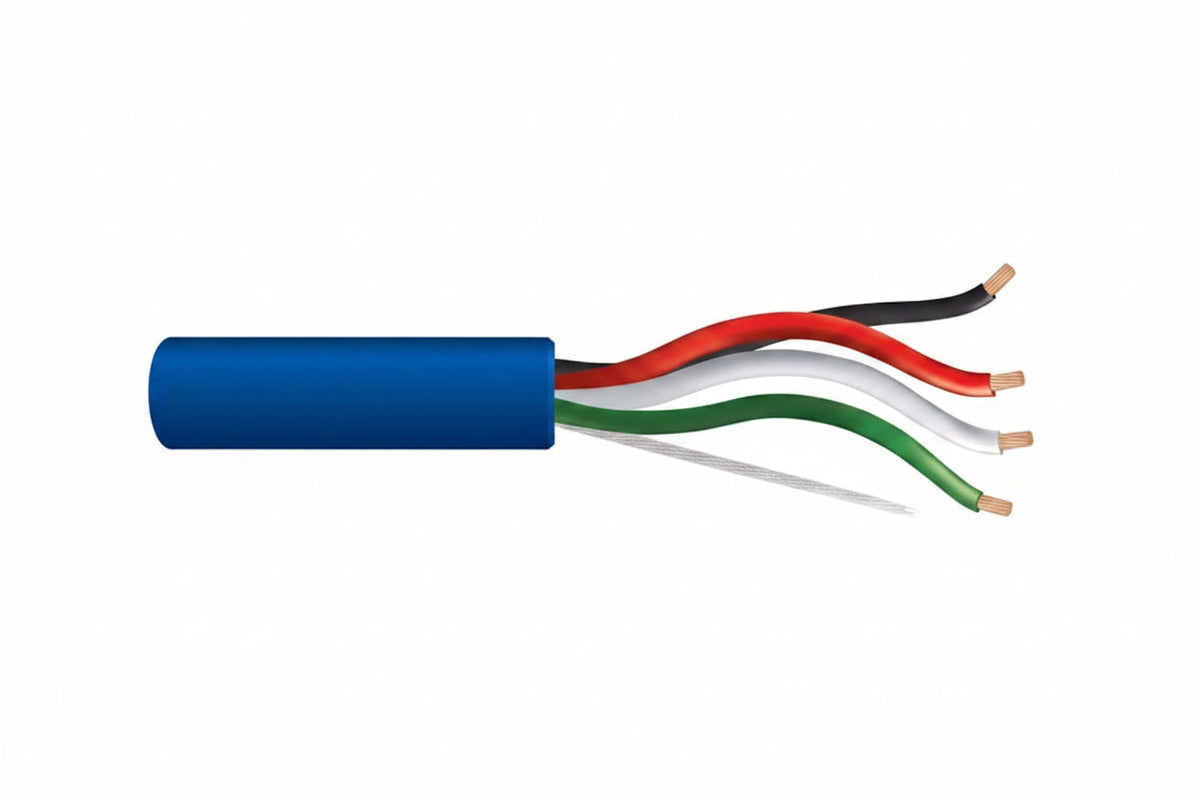

Genesis 52515506 16/4 Stranded Unshielded Speaker Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Blue

The Genesis 52515506 is a 16 AWG, 4-conductor stranded, unshielded speaker cable supplied in a 500' (152.4 m) pull box. It carries audio from amplifiers and receivers to speakers in stereo, professional audio and home theater installs, and suits installers running indoor riser-rated (CMR, FT4) cable. Bare copper conductors, a rip cord for easy jacket removal and countdown length markings make it practical to pull and trim on site.

Key features

• Bare copper conductors give excellent conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you have used and how much remains.
• The jacket is sunlight resistant (UV) rated.
• The cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 52515506

Product type: Audio & Speaker Cables

Gauge: 16 AWG

Number of conductors: 4

Construction: Stranded

Conductor material: Bare copper

Insulation: Polypropylene (PP)

Jacket: PVC

Shielding: No

Armored: No

Rating: Riser, CMR, FT4

Voltage rating: 300 Volts

Temperature rating: -20 °C to 60 °C

Length and packaging: 500' (152.4 m) pull box

Color: Blue

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

Keep the cable within its listed temperature range and use it indoors only, as specified. Because it is unshielded, route it away from mains power runs where practical, and use the countdown markings to cut each run to length with minimal waste.
