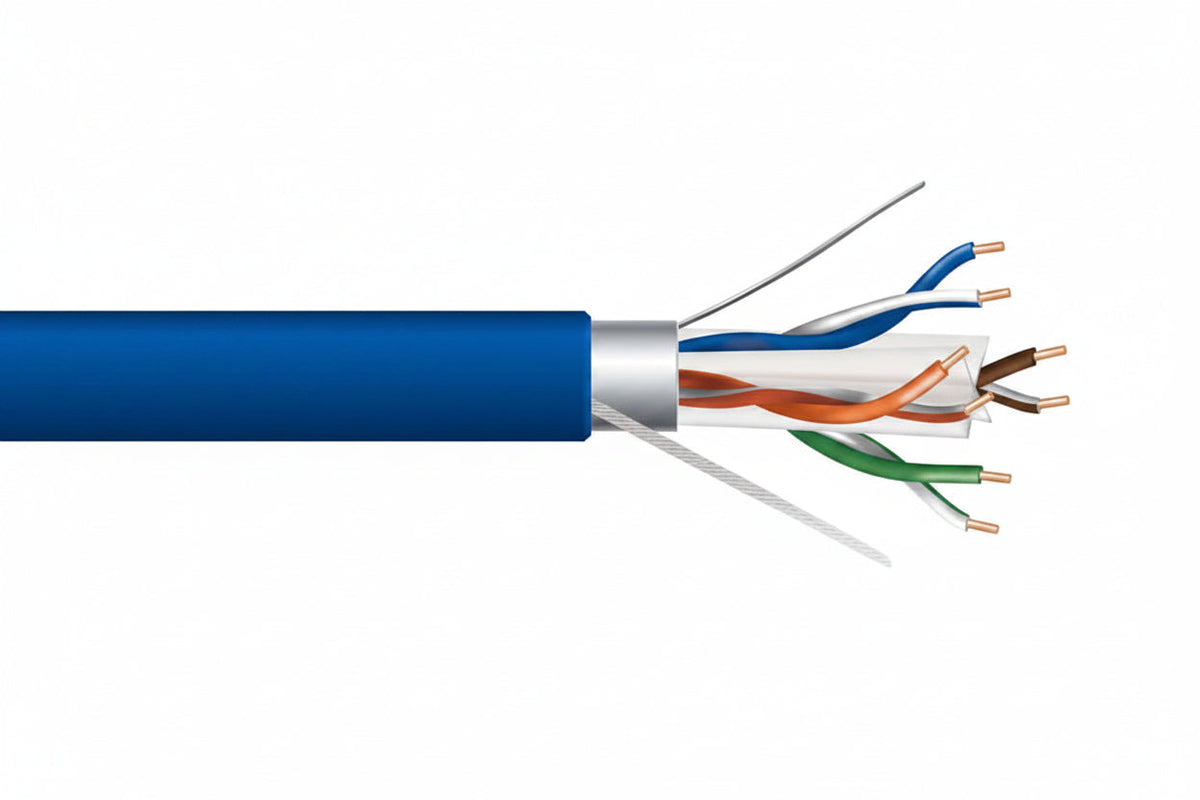

Genesis 51921006 23/4-Pair Cat 6 Plus Shielded (F/UTP) Networking Cable, Riser, CMR, FT4, 1000' (304.8 m) Reel, Blue

The Genesis 51921006 is a 1000' (304.8 m) reel of blue Cat 6 Plus shielded (F/UTP) networking cable with 23 AWG solid bare copper conductors in 4 pairs. It's a riser-rated (CMR, FT4) indoor cable for structured cabling runs where a foil shield over the conductors is wanted. The countdown length markings and rip cord make it easier to pull from the reel and strip.

Key features

• Bare copper conductors support good signal transmission and low voltage drop.
• A foil shield covers all conductors, and the cable has a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you've used and how much is left.
• The cable is rated for 300V and for temperatures from -20 °C to 75 °C.
• The jacket carries a sunlight resistant (UV) rating.

Specifications

Brand: Genesis

Model: 51921006

Product name: Cat.6 FTP Network Cable

Type: Ethernet cable

Rating: Riser, CMR, FT4

Length and packaging: 1000' (304.8 m) reel

Color: Blue

Shielding: Yes, F/UTP (foil over all conductors)

Number of pairs: 4

Number of conductors: 8

Conductor material: Bare copper

Conductor construction: Solid

American Wire Gauge: 23 AWG

Insulation material: PE

Impedance: 100 Ohm

Voltage rating: 300V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Armored: No

Environmental certification: RoHS

TAA compliant: No

Country of origin: VN

Installation notes

Use the countdown markings to plan your pulls and cut each run with some slack for termination. Terminate the foil shield properly with shielded connectors and grounding hardware, and avoid sharp bends or excessive pulling tension on the cable.
