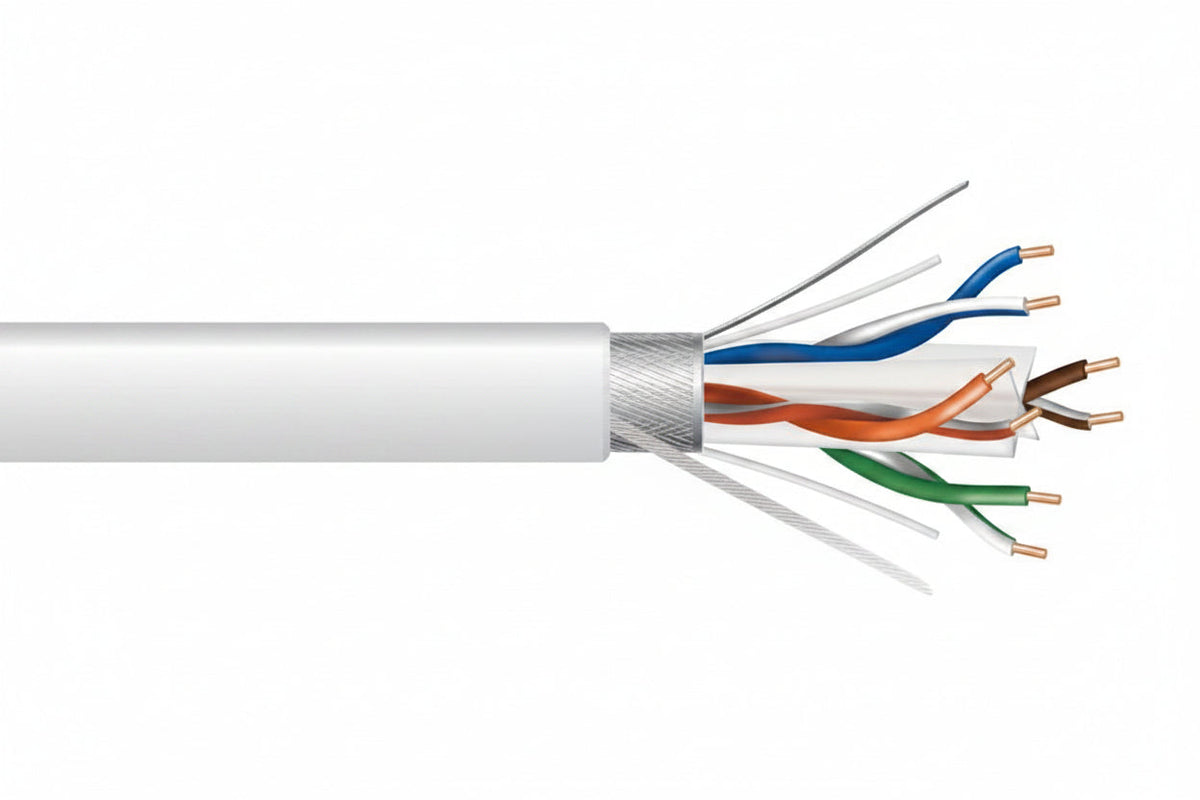

Genesis 51921001 23/4-Pair Cat 6 Plus Shielded (F/UTP) Networking Cable, Riser, CMR, FT4, 1000' (304.8 m) Reel, White

The Genesis 51921001 is a 1000' (304.8 m) reel of 23 AWG, 4-pair Cat 6 Plus shielded (F/UTP) networking cable in white. It is a riser-rated (CMR, FT4) indoor cable for structured cabling runs where a foil shield over the conductors is wanted. Solid bare copper conductors and countdown length markings make it practical for long pulls.

Key features

• Bare copper conductors support good signal transmission with low voltage drop.
• A foil shield covers all conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you have used and how much remains.
• The PVC jacket is sunlight resistant (UV) rated and the cable is rated for -20 °C to 75 °C.

Specifications

Brand: Genesis

Model: 51921001

Product type: Ethernet cables

Category: Cat 6 Plus

Construction: 4 pairs, 8 conductors, solid

Gauge: 23 AWG

Conductor material: Bare copper

Insulation: PE

Jacket: PVC

Shielding: Yes, foil (F/UTP)

Rating: Riser, CMR, FT4

Voltage rating: 300V

Temperature rating: -20 °C to 75 °C

Impedance: 100 Ohm

Indoor/Outdoor: Indoor

Armored: No

Color: White

Packaging: 1000' (304.8 m) reel

Weight: 38.80 lb

Environmental certification: RoHS

TAA compliant: No

Country of origin: VN

Installation notes

Terminate and ground the foil shield according to your shielded-system design so it stays continuous end to end. Pull the cable without kinking it or exceeding the bend radius, and use the countdown markings to plan each run before cutting.
