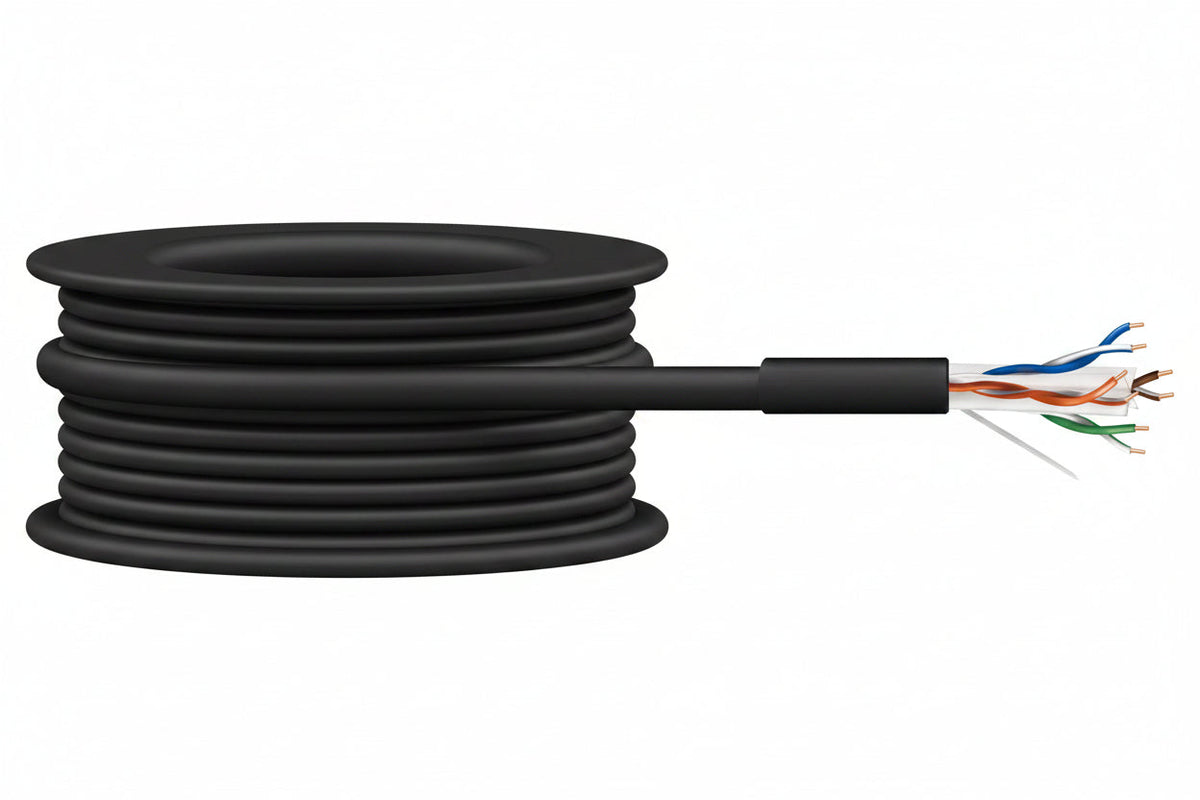

Genesis 50921008 23/4-Pair Cat 6 Plus Unshielded (U/UTP) Networking Cable, Riser, CMR, FT4, 1000' (304.8 m) Reel, Black

The Genesis 50921008 is a 1000' (304.8 m) reel of Cat 6 Plus unshielded (U/UTP) networking cable with 23 AWG solid bare copper conductors in 4 pairs. It is riser rated (CMR, FT4) and meant for indoor Ethernet runs, so it suits installers and businesses pulling cable through building risers. Countdown length markings and a rip cord make it easier to track and strip as you work.

Key features

• Bare copper conductors support good signal transmission with low voltage drop.
• Countdown length markings let you see how much cable you have used and how much is left on the reel.
• A rip cord under the PVC jacket makes jacket removal quicker.
• The jacket is sunlight (UV) resistant rated.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• The cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 50921008

Product Type: Ethernet Cables

Category: Cat 6 Plus U/UTP

Rating: Riser, CMR, FT4

Length: 1000' (304.8 m) reel

Color: Black

Indoor/Outdoor: Indoor

Shielding: No

Armored: No

Number of Pairs: 4

Number of Conductors: 8

Conductor Material: Bare Copper

Solid or Stranded: Solid

American Wire Gauge: 23AWG

Insulation Material: PE

Jacket: PVC

Impedance: 100Ohm

Voltage Rating: 300 Volts

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: No

Country of Origin: VN

Installation notes

Keep pulling tension moderate and avoid sharp bends or kinks, since solid conductors can be damaged by rough handling. Use the countdown markings to plan each run before cutting, and test every termination once the cable is installed.
