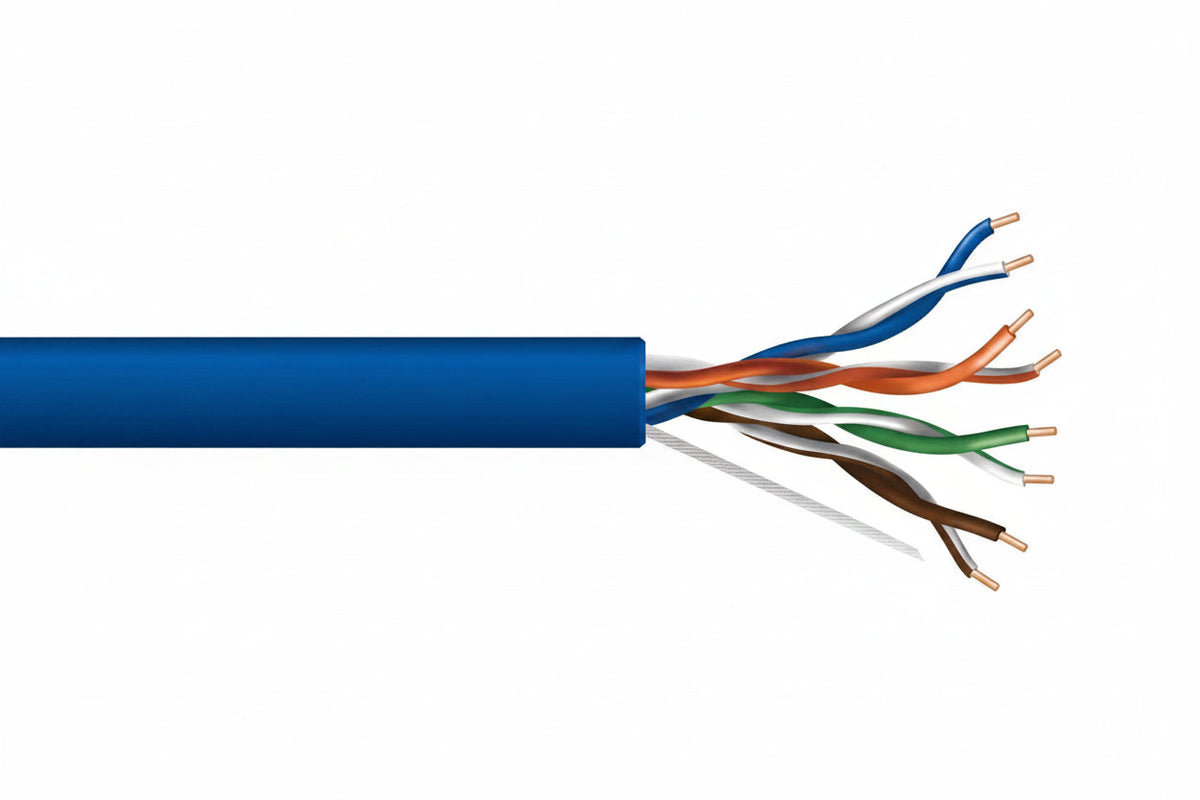

Genesis 50885506 24/4-Pair Cat 5e Unshielded (U/UTP) Plenum Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Blue

The Genesis 50885506 is a 500' (152.4 m) pull box of blue Cat 5e unshielded (U/UTP) plenum cable, rated CMP and FT6. It carries data over four pairs of solid 24 AWG bare copper conductors and suits installers running indoor network cabling. The FEP insulation, rip cord and countdown length markings make it easier to strip, pull and track on the job.

Key features

• Bare copper conductors support good signal transmission with low voltage drop.
• FEP insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• The cable is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 50885506

Type: Cat 5e U/UTP networking cable

Rating: Plenum, CMP, FT6

Length and packaging: 500' (152.4 m) pull box

Color: Blue

Pairs: 4

Conductors: 8

Conductor material: Bare copper

Conductor type: Solid

Wire gauge: 24 AWG

Insulation: FEP

Shielding: No

Armored: No

Impedance: 100 Ohm

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: No

Country of origin: VN

Weight: 11.30 lb

Installation notes

Pull the cable from the box without kinks or sharp bends, and use the countdown markings to cut runs to length. Keep it away from power cabling and terminate with components suited to solid conductors.
