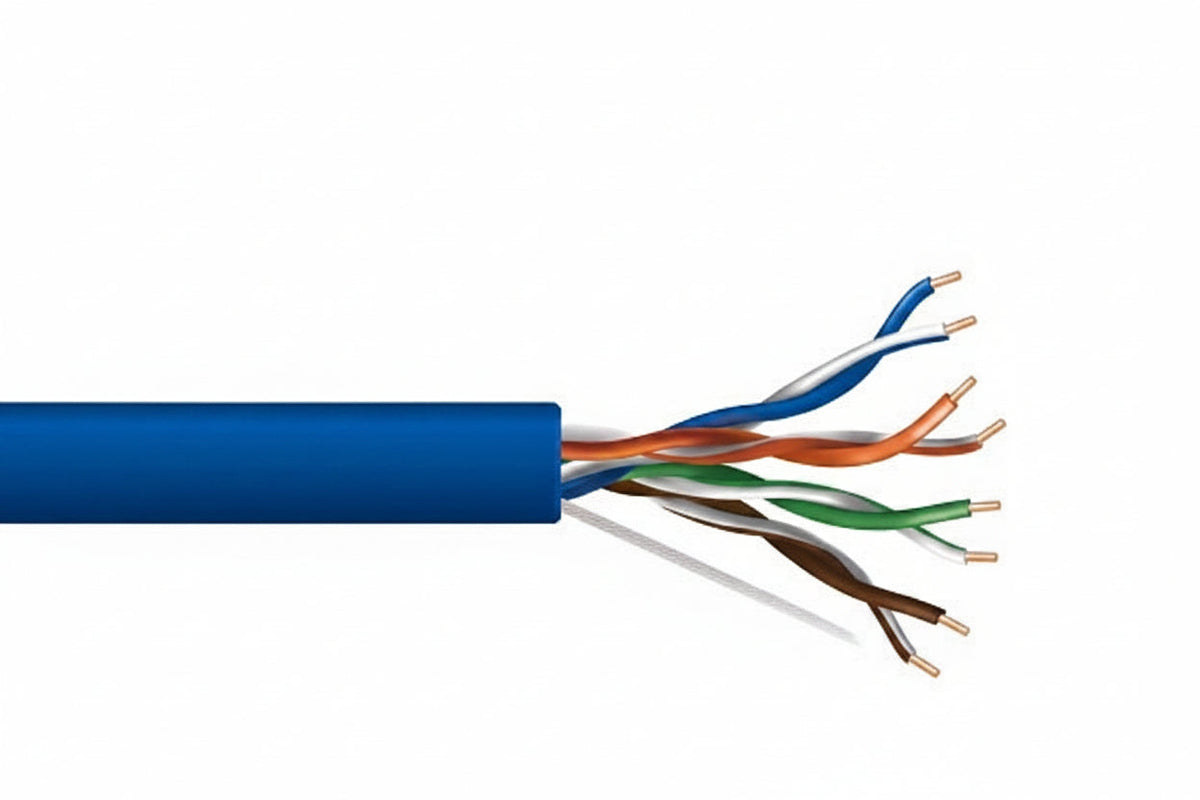

Genesis 50781106 24/4-Pair Cat 5e Unshielded (U/UTP) Networking Cable, Riser, CMR, 1000' (304.8 m) Pull Box, Blue

The Genesis 50781106 is a 1000' (304.8 m) pull box of blue Cat 5e unshielded (U/UTP) networking cable, riser-rated CMR. It carries Ethernet signals over four pairs of 24 AWG solid bare copper conductors, which makes it a fit for installers pulling indoor data runs. Countdown length markings and a rip cord for jacket removal make long pulls easier to track and finish.

Key features

• Bare copper conductors support strong signal transmission with low voltage drop.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings help you track how much cable you have used and how much remains.
• The PVC jacket is sunlight resistant (UV) rated.
• The cable is rated for 300V and for temperatures from -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 50781106

Product type: Ethernet cable

Category: Cat 5e

Fire rating: Riser, CMR

Length and packaging: 1000' (304.8 m) pull box

Color: Blue

Shielding: No (unshielded, U/UTP)

Armored: No

Number of pairs: 4

Number of conductors: 8

Conductor material: Bare copper

Conductor type: Solid

American Wire Gauge: 24 AWG

Insulation material: PE

Jacket: PVC

Impedance: 100 Ohm

Voltage rating: 300V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: No

Country of origin: VN

Installation notes

Feed the cable from the pull box without kinks or tight bends, and avoid pulling it harder than necessary through conduit or pathways. Keep data runs separated from power wiring where possible, and test each run after termination.
