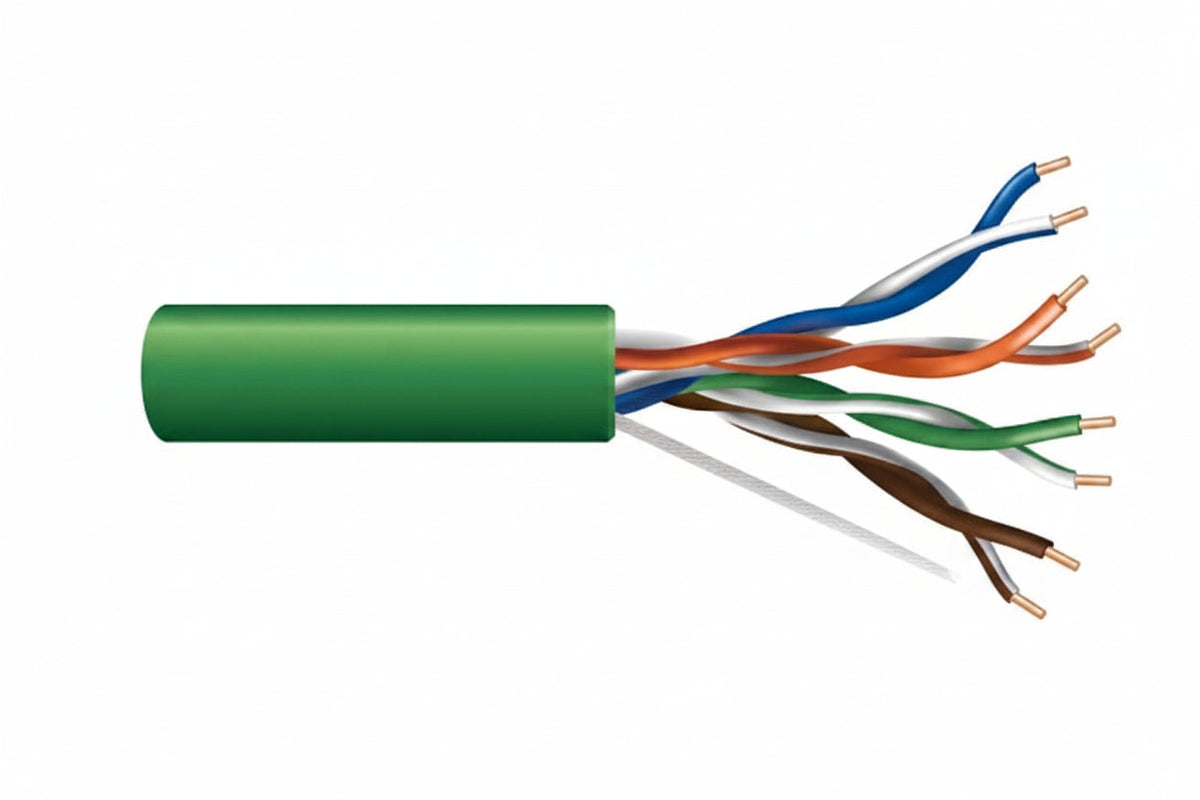

Genesis 50781105 24/4-Pair Cat 5e Unshielded (U/UTP) Networking Cable, Riser, CMR, 1000' (304.8 m) Pull Box, Green

The Genesis 50781105 is a 1000' (304.8 m) pull box of green Cat 5e unshielded (U/UTP) networking cable, rated riser (CMR). It carries Ethernet signals over 24 AWG solid bare copper conductors in four pairs, which suits installers pulling indoor data runs. The countdown length markings and rip cord make it easier to track and strip as you work through a long roll.

Key features

• Bare copper conductors support good signal transmission with low voltage drop.
• A built-in rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• The PVC jacket is rated for sunlight resistance (UV) and for -20 °C to 75 °C.
• The cable is rated for 300 volts.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 50781105

Type: Cat 5e U/UTP networking cable

Rating: Riser, CMR

Length and packaging: 1000' (304.8 m) pull box

Color: Green

Pairs: 4

Number of conductors: 8

Conductor material: Bare copper

Conductor construction: Solid

American Wire Gauge: 24 AWG

Shielding: No

Armored: No

Insulation material: PE

Impedance: 100 Ohm

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: No

Country of origin: VN

Installation notes

Pull the cable from the box without kinks or sharp bends, and avoid over-tightening cable ties so the pairs keep their geometry. Use the length markings to plan each run and cut to length before terminating.
