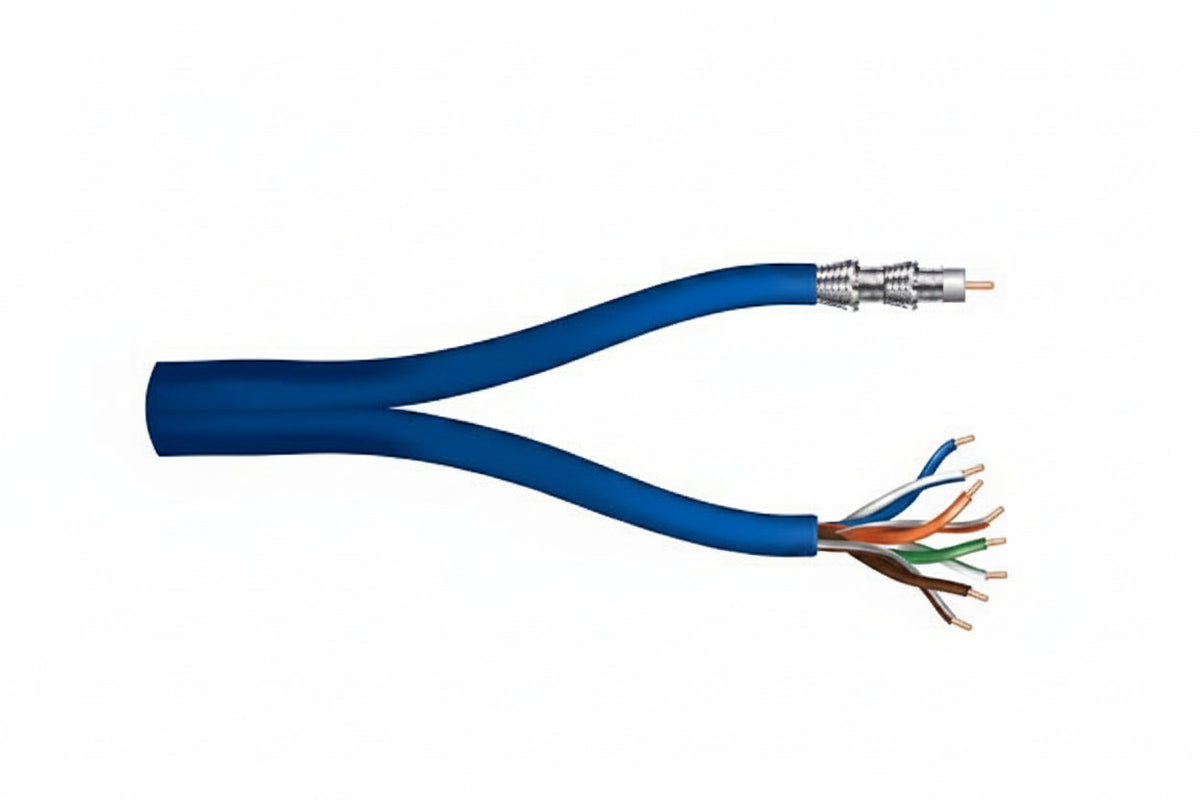

Genesis 50665006 4-Pair Cat 5e + RG6 CCS 75 Ohm Coaxial with Quad-Shield Multimedia Cable, General Purpose, CM, 500' (152.4 m) Reel, Blue

The Genesis 50665006 is a composite multimedia cable that pairs 4-pair Cat 5e with RG6 CCS 75 ohm quad-shield coaxial in one blue jacket. It lets installers run voice, data and video with a single pull, which suits contractors and businesses wiring indoor spaces. It is general purpose, CM rated and supplied on a 500' (152.4 m) reel.

Key features

• Combines 4-pair Cat 5e and RG6 CCS coaxial in one cable.
• Quad-shield construction gives the coax enhanced protection.
• General purpose, CM rated jacket.
• Blue jacket makes the cable easy to identify on site.
• Simplifies voice/data and video installations.

Specifications

Brand: Genesis

Model: 50665006

Product type: Multimedia cable

Rating: General Purpose, CM

Length/packaging: 500' (152.4 m) reel

Color: Blue

Indoor/Outdoor: Indoor

Number of pairs: 4

Number of conductors: 8

Conductor material: Bare copper

Conductor type: Solid

Wire gauge: 24 AWG

Insulation material: PE

Coax impedance: 75 ohm

Shielding: Yes

Armored: No

Environmental certification: RoHS

TAA compliant: No

Country of origin: CN

Installation notes

This cable is indoor only, so keep runs inside the building and plan for a separate outdoor-rated cable where the route leaves it. Respect the minimum bend radius while pulling, and terminate the Cat 5e pairs and the coax with connectors matched to each cable type.
