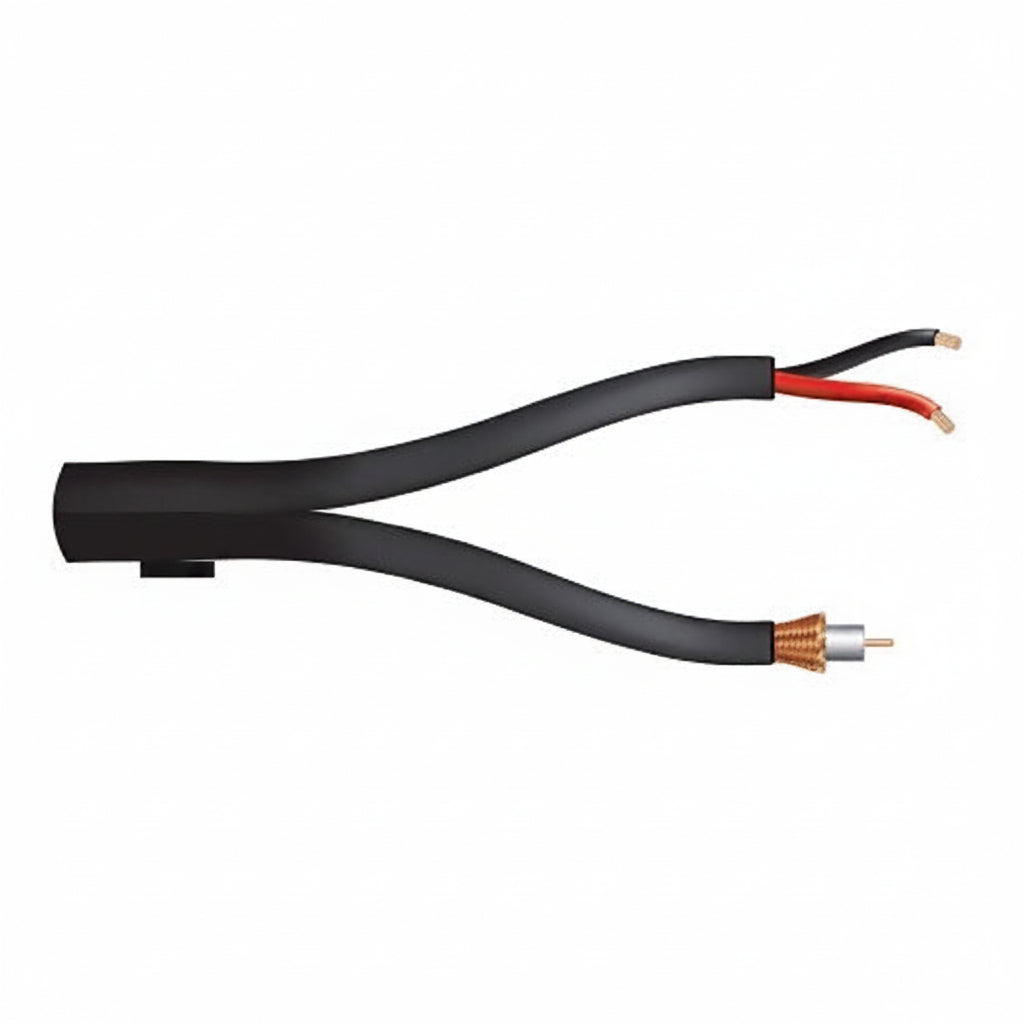

Genesis 50131008 RG59 BC 75 Ohm Coaxial with Bare Copper Braid + 18/2 Stranded Cable, General Purpose, CATV, 1000' (304.8 m) Reel, Black

The Genesis 50131008 is a 1000' (304.8 m) reel of black RG59 75 Ohm coaxial cable with a bare copper braid and an 18/2 stranded cable alongside it. It is a general purpose, CATV-type cable for running video and audio signal with a power or control pair in the same pull. It suits installers and integrators who want a solid bare copper center conductor and a long, countdown-marked reel for tracking usage on larger jobs.

Key features

• The solid bare copper center conductor offers excellent conductivity and low voltage drop.
• A 95% coverage braid shield works with polyethylene insulation to protect the signal.
• Countdown length markings make it easy to track how much cable you have used and how much remains.
• The PVC jacket is sunlight resistant (UV) rated.
• It is rated for 150 Volts and for temperatures from -20 °C to 75 °C.
• The cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 50131008

Type: RG59 coaxial cable, general purpose, CATV

Length: 1000' (304.8 m) reel

Color: Black

Impedance: 75 Ohm

Center conductor: Solid bare copper

Additional cable: 18/2 stranded, 18 AWG

Shielding: Yes, 95% coverage braid

Insulation: Polyethylene (PE)

Jacket: PVC

Voltage rating: 150 Volts

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Armored: No

Environmental certification: RoHS

TAA compliant: No

Country of origin: CN

Weight: 51.60 lb

Installation notes

Pull the cable from the reel without kinking it or crushing the jacket, and use the countdown markings to cut runs to length. Keep bends gentle and terminate the braid and center conductor cleanly so the shield stays continuous at each connector.
