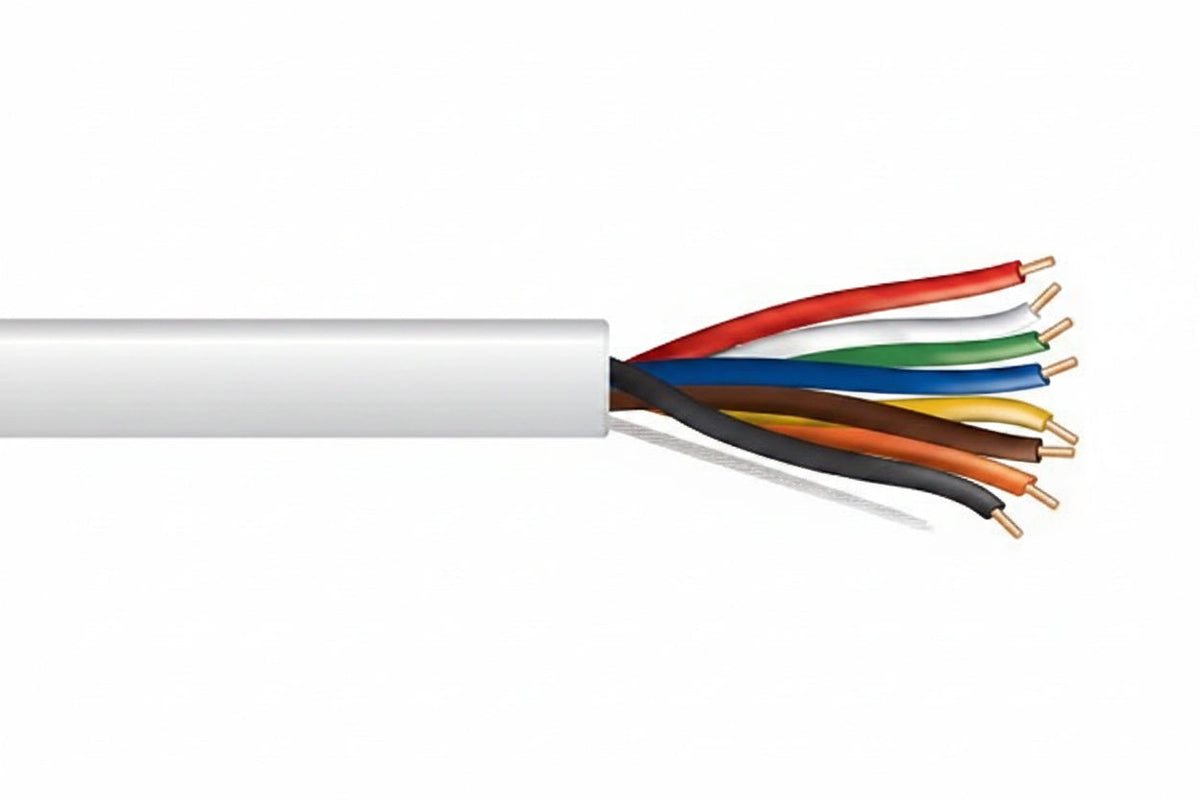

Genesis 47160301 18/8 Solid Unshielded Thermostat Cable, General Purpose, CL2, 250' (76.2 m) x 4 Reels, White

The Genesis 47160301 is a four-reel pack of 18 AWG, 8-conductor solid unshielded thermostat cable, with 250' (76.2 m) on each reel. It is a general purpose, CL2-rated, non-plenum cable in white, suited to indoor thermostat and low-voltage control wiring by installers and contractors. Bare copper conductors and sequential length marking make it practical for longer runs and for keeping track of material used.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord makes jacket stripping and removal quicker.
• Sequential length marking lets you track how much cable you have used.
• Rated for 150 volts and for temperatures from -20 °C to 60 °C.
• REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 47160301

Product type: Thermostat Cable

Rating: General Purpose, CL2, Non-Plenum

Packaging: 250' (76.2 m) x 4 reels

Color: White

Conductors: 8, solid

Gauge: 18 AWG

Conductor material: Bare copper

Insulation: Polypropylene (PP)

Jacket: PVC

Shielding: No

Armored: No

Voltage rating: 150 V

Temperature rating: -20 °C to 60 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

This is a non-plenum, indoor cable, so use it only where that rating is appropriate and keep it away from plenum spaces. Use the rip cord to open the jacket cleanly, and label each end of the run before terminating at the thermostat and the equipment.
