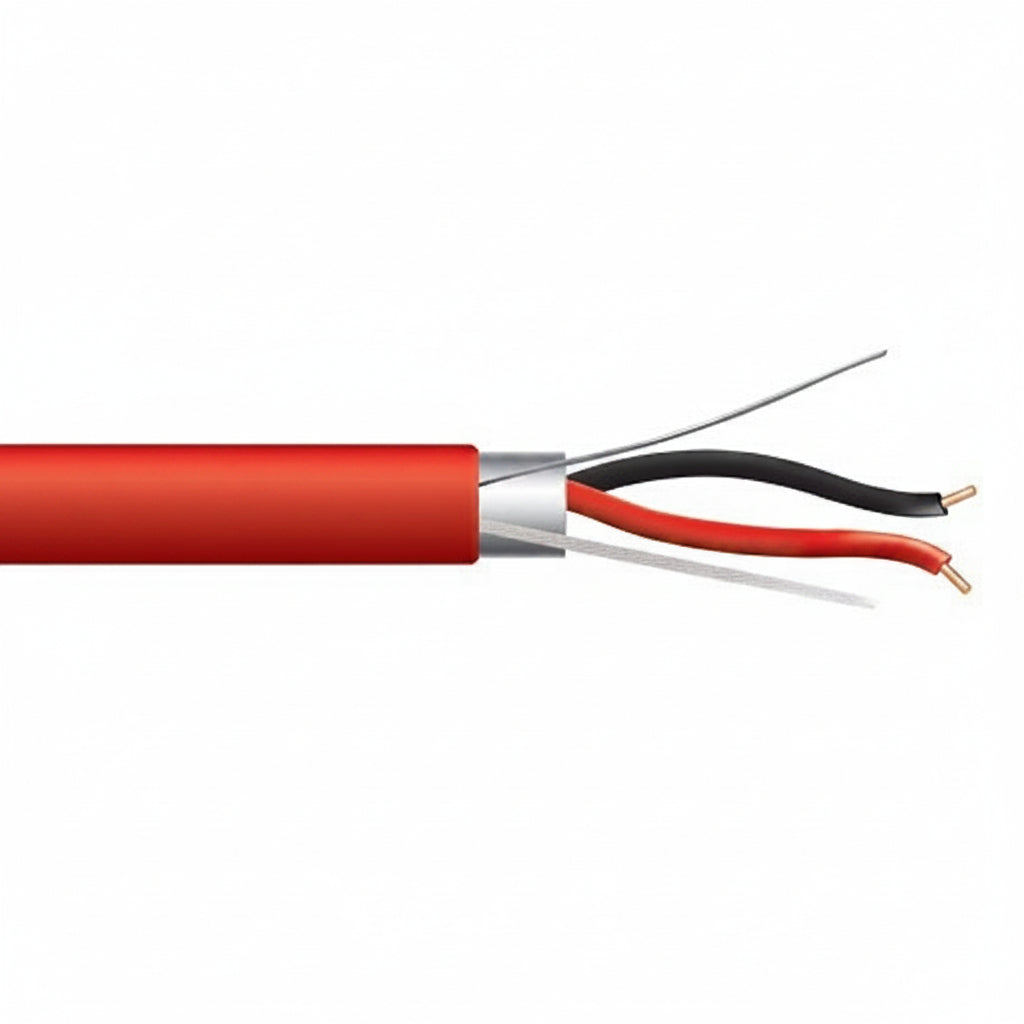

Genesis 44021104 18/2 Solid Shielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Pull Box, Red

The Genesis 44021104 is an 18 AWG, 2-conductor solid shielded fire alarm cable in red, rated FPLR for riser use and supplied in a 1000' (304.8 m) pull box. It suits installers running fire alarm circuits indoors who want a foil-shielded cable with bare copper conductors. Countdown length markings and a rip cord for jacket removal make it easier to work with on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• A foil shield covers all conductors, and the jacket is PVC over polypropylene insulation.
• A rip cord helps you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you've used and how much is left.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 44021104

Product Type: Shielded Fire Alarm Cable

Rating: Riser, FPLR

Length and Packaging: 1000' (304.8 m) Pull Box

Color: Red

Gauge: 18AWG

Core/Cladding Diameter: 18/2

Number of Conductors: 2

Number of Pairs: 1

Solid or Stranded: Solid

Conductor Material: Bare Copper

Insulation Material: PP

Shielding: Yes

Armored: No

Indoor/Outdoor: Indoor

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Weight: 17.40 lb

Installation notes

Pull the cable from the box without twisting it, and keep bends gentle so the foil shield and jacket aren't damaged. Terminate the shield according to the fire alarm panel and device manufacturer's instructions, and follow local code for riser routing and circuit identification.
