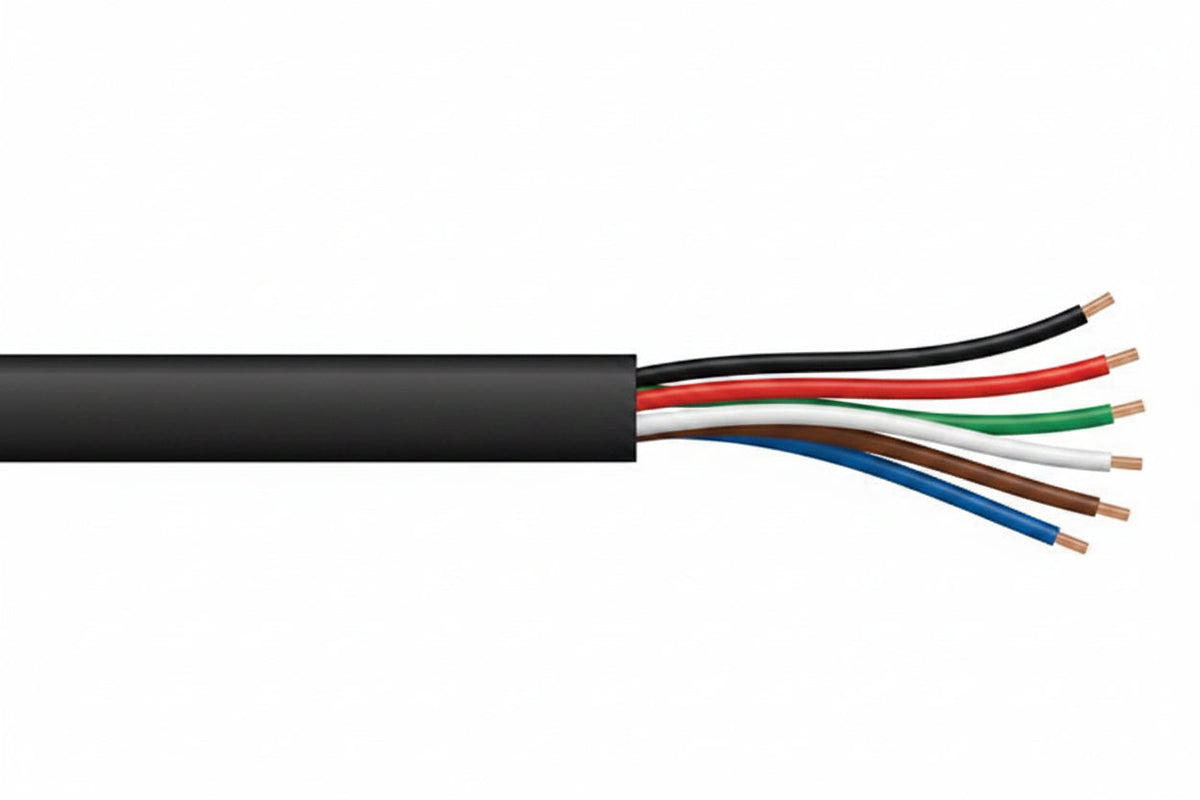

Genesis 41585008 18/6 Stranded Unshielded Fire Alarm Cable, Direct Burial, FPL, CL3, 500' (152.4 m) Reel, Black

The Genesis 41585008 is a 500' (152.4 m) reel of 18/6 stranded, unshielded fire alarm cable in black, rated FPL and CL3 and approved for direct burial. It suits installers running fire alarm circuits outdoors, including underground runs between buildings. Bare copper conductors, sunlight-resistant construction and countdown length markings make it practical for long outdoor pulls.

Key features

• Bare copper conductors give excellent conductivity and low voltage drop.
• SRPVC insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you have used and how much is left.
• The cable is sunlight resistant (UV) rated and carries a 300 volt rating.
• It is rated for -20 °C to 75 °C and is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 41585008

Product type: Fire Alarm Cable

Gauge: 18 AWG

Conductors: 6

Construction: Stranded

Conductor material: Bare copper

Insulation: SR-PVC

Jacket: PVC

Shielding: No

Armored: No

Rating: FPL, CL3, direct burial

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Outdoor

Color: Black

Length and packaging: 500' (152.4 m) reel

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 37.80 lb

Installation notes

Plan the route before you pull and use the countdown markings to cut runs to length with minimal waste. Because the cable is unshielded, keep it clear of high-voltage and noisy power wiring, and follow local code for burial depth and for the transition from outdoor to indoor runs.
