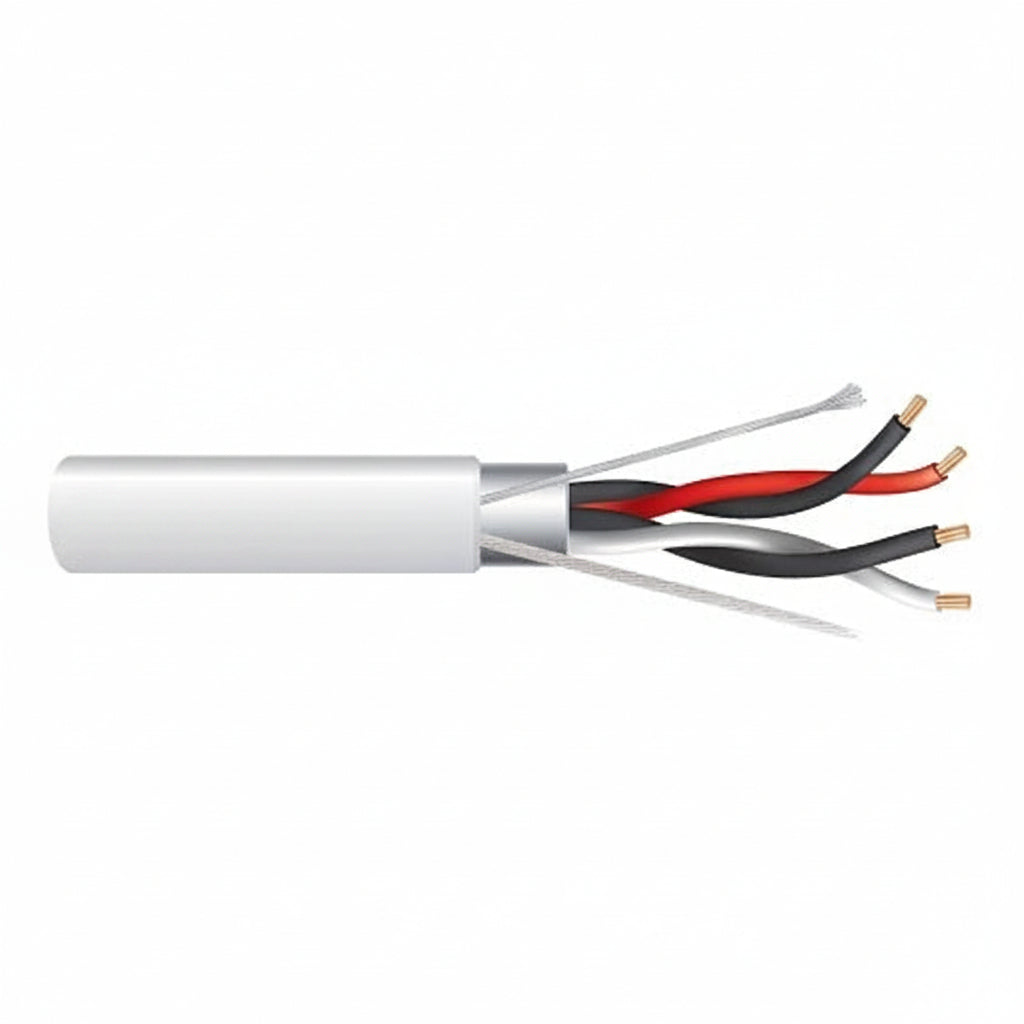

Genesis 32811112 22/2-Pair Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Natural

The Genesis 32811112 is a 22 AWG, 2-pair stranded shielded cable with a plenum (CMP, FT6) jacket, supplied in a 1000′ (304.8 m) pull box in natural. It suits installers running security, controls, audio and other low-voltage circuits through indoor spaces. Bare copper conductors, an overall foil shield and a rip cord for jacket removal make it a practical choice for clean, protected runs.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation covers the conductors.
• A foil shield surrounds all conductors.
• A rip cord makes stripping and removing the jacket more efficient.
• Countdown length markings help you track how much cable you have used and how much remains.
• The cable is rated for 300 volts and for -20 °C to 75 °C, and it is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 32811112

Product type: Shielded Stranded Cable (Security & Control Cables)

Conductor gauge: 22 AWG

Construction: Stranded

Number of pairs: 2

Number of conductors: 4

Conductor material: Bare copper

Insulation: LS-PVC

Shielding: Yes, foil shield

Armored: No

Rating: Plenum, CMP, FT6

Length and packaging: 1000′ (304.8 m) pull box

Color: Natural

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS; REACH/RoHS compliant

TAA compliant: Yes

Country of origin: US

Weight: 19.00 lb

Installation notes

Terminate the shield properly at the equipment end and keep it continuous through the run so it can do its job. Pull the cable gently from the box to avoid kinks, and use the countdown markings to cut runs to length with less waste.
