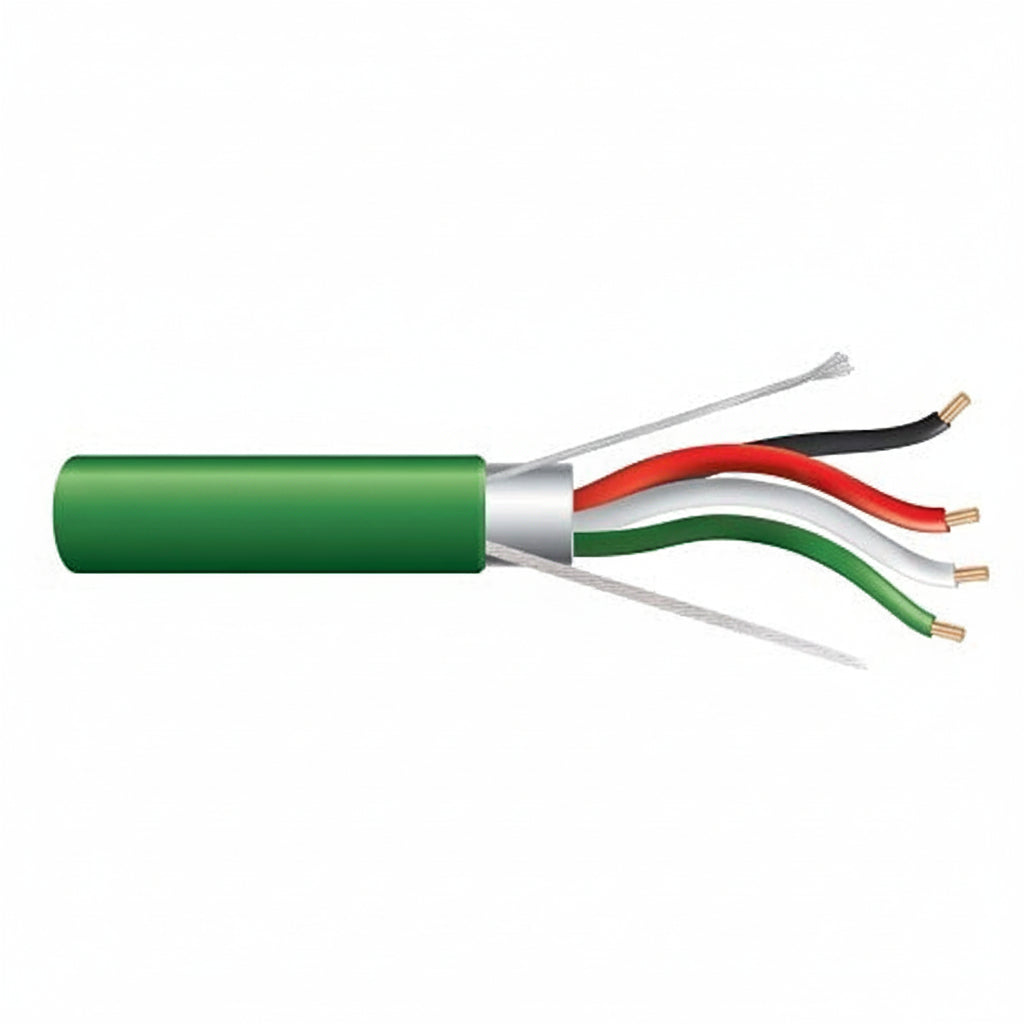

Genesis 32152105 18/4 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel-in-a-Box, Green

The Genesis 32152105 is an 18 AWG, 4-conductor stranded shielded cable on a 1000' (304.8 m) reel-in-a-box, in green. It is rated plenum (CMP, FT6) for indoor security and control wiring, and suits installers who need a foil-shielded run with low voltage drop. Bare copper conductors and countdown length markings help with planning and tracking a long pull.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A foil shield covers all conductors.
• A rip cord makes it quicker to strip and remove the jacket.
• Countdown length markings show how much cable you have used and how much is left.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.

Specifications

Brand: Genesis

Model: 32152105

Product Type: Security & Control Cables

Rating: Plenum, CMP, FT6

Length: 1000' (304.8 m)

Packaging: Reel-in-a-Box

Color: Green

American Wire Gauge: 18AWG

Number of Conductors: 4

Solid or Stranded: Stranded

Conductor Material: Bare Copper

Insulation Material: LS-PVC

Shielding: Yes

Armored: No

Indoor/Outdoor: Indoor

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Installation notes

This is an indoor-only cable, so keep it out of outdoor runs. Terminate the foil shield properly at the equipment end, and avoid tight bends or excessive pulling tension when running it through plenum spaces.
