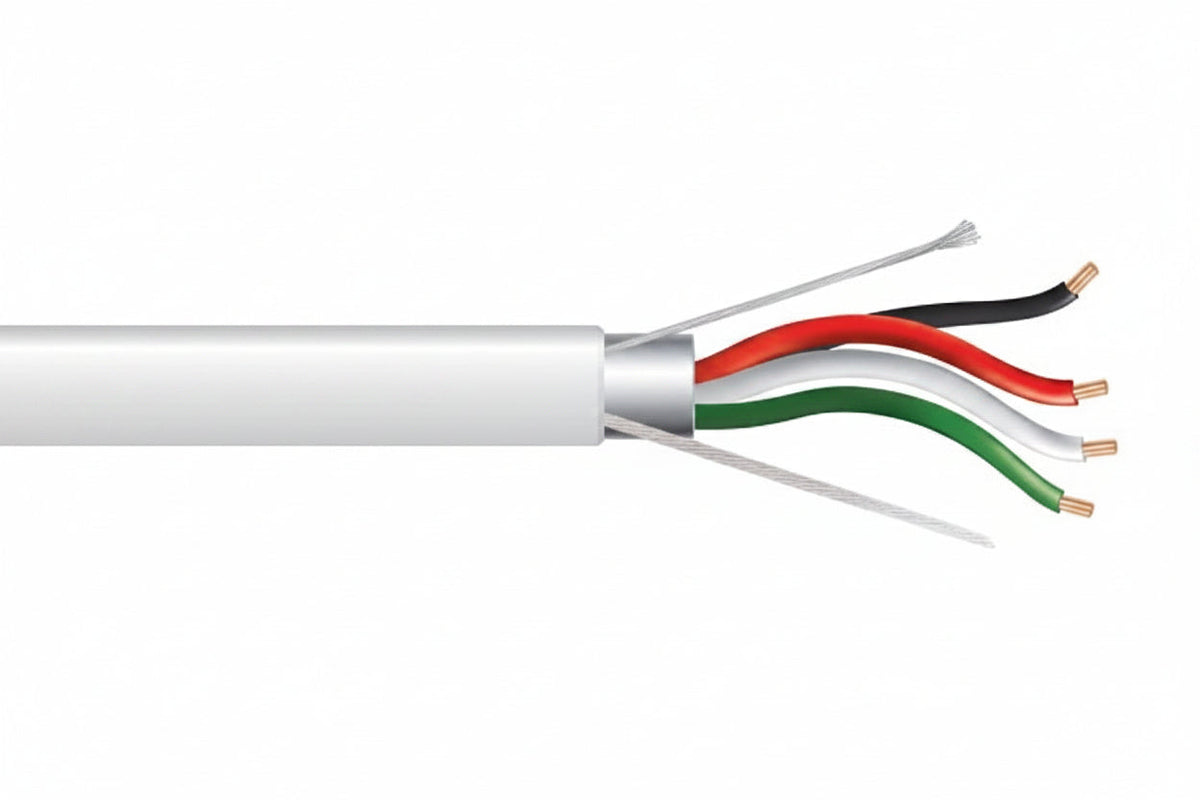

Genesis 32045512 22/4 Stranded Shielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural

The Genesis 32045512 is a 22 AWG, 4-conductor stranded shielded control cable with a plenum (CMP, FT6) jacket, supplied as a 500' (152.4 m) pull box in natural. It suits installers running security and control wiring indoors, where a foil-shielded, low-smoke plenum cable is needed. Bare copper conductors and countdown length markings make it practical for long runs.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A foil shield covers all conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings help you track how much cable you have used and how much remains.
• It is rated for 300 volts and for -20 °C to 75 °C, and is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 32045512

Product type: Security & Control Cables

Rating: Plenum, CMP, FT6

Length and packaging: 500' (152.4 m) pull box

Color: Natural

Gauge: 22 AWG

Number of conductors: 4

Construction: Stranded

Conductor material: Bare copper

Insulation: LS-PVC

Shielding: Yes

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 17.00 lb

Installation notes

This is an indoor cable, so keep it inside the building and follow local code for plenum spaces. Terminate the foil shield properly according to the equipment manufacturer's guidance, and use the rip cord to open the jacket cleanly before stripping.
