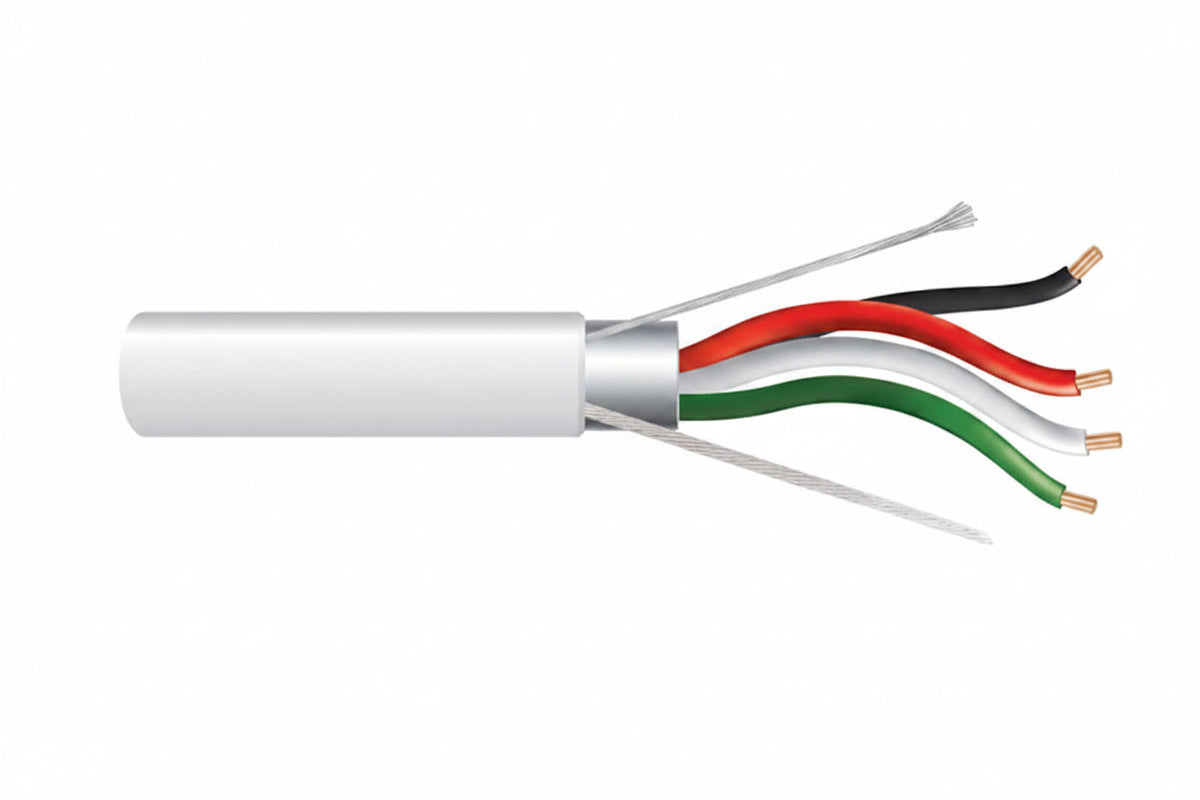

Genesis 32041112 22/4 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Natural

The Genesis 32041112 is a 22 AWG, 4-conductor stranded shielded cable with a plenum (CMP, FT6) rating, supplied in a 1000' (304.8 m) pull box in natural. It suits installers running low-voltage security and control wiring indoors, where a foil-shielded, plenum-rated cable is needed. Bare copper conductors, a rip cord and countdown length markings make it practical to pull and strip on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A foil shield covers all conductors.
• A rip cord makes it easier to strip and remove the jacket.
• Countdown length markings let you track how much cable you have used and how much is left.
• It is rated for 300 volts and for -20 °C to 75 °C, and is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 32041112

Product type: Security & Control Cables

Gauge: 22 AWG

Core/Cladding Diameter: 22/4

Number of conductors: 4

Conductor type: Stranded

Conductor material: Bare copper

Insulation material: LS-PVC

Shielding: Yes

Armored: No

Rating: Plenum, CMP, FT6

Length: 1000' (304.8 m)

Packaging: Pull box

Color: Clear

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 17.00 lb

Installation notes

Terminate the foil shield according to the equipment manufacturer's grounding guidance, and keep the cable away from sources of electrical noise where possible. Use the rip cord to open the jacket cleanly, and avoid sharp bends or excessive pulling tension during the pull.
