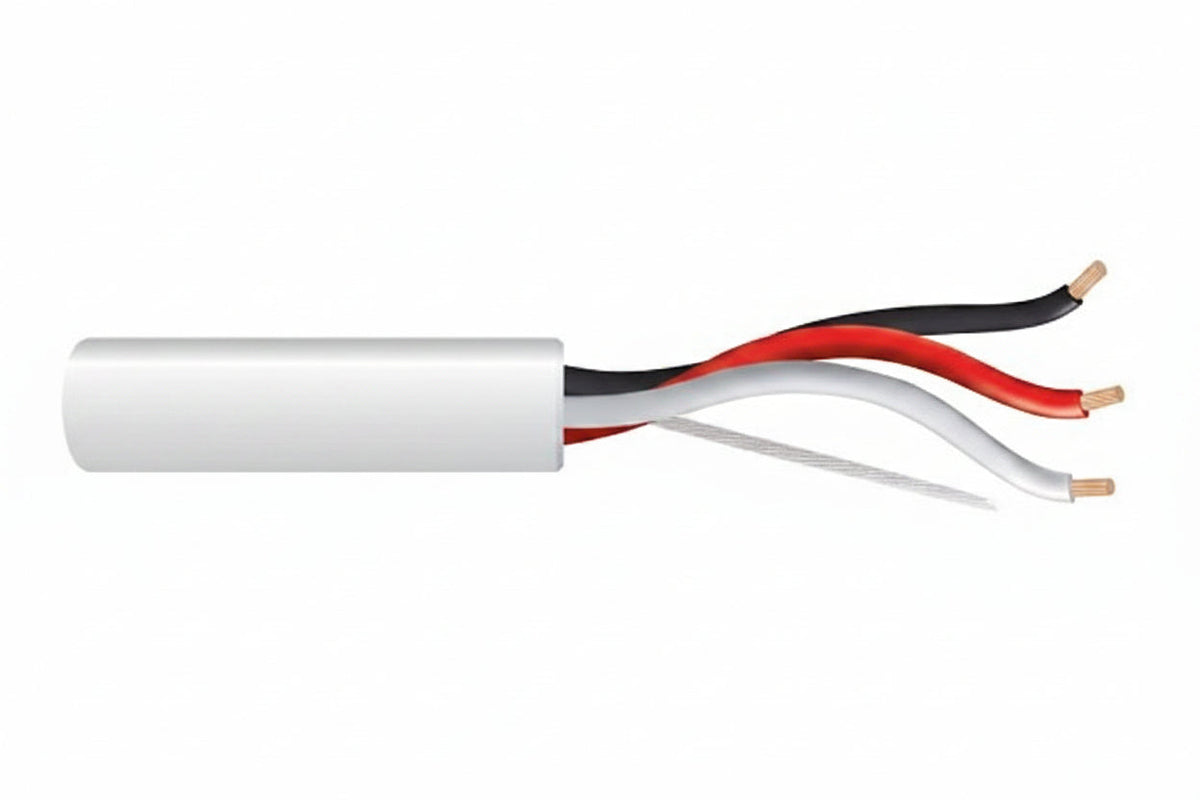

Genesis 31261112 18/3 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Natural

The Genesis 31261112 is an 18 AWG, 3-conductor stranded, unshielded control cable in a 1000' (304.8 m) pull box. It carries a plenum CMP and FT6 rating, so it suits indoor low-voltage runs for security and control installations. Bare copper conductors and countdown length markings make it practical for installers pulling long runs.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much is left.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• The cable is REACH and RoHS compliant.

Specifications

Brand: Genesis

Model: 31261112

Product name: 3126-11-12 Control Cable

Cable type: Security & Control Cables

Gauge: 18 AWG

Conductors: 3

Conductor material: Bare copper

Construction: Stranded

Shielding: No

Armored: No

Insulation: LS-PVC

Rating: Plenum, CMP, FT6

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Length and packaging: 1000' (304.8 m) pull box

Color: Natural

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 22.70 lb

Installation notes

Because this cable is unshielded, keep it separated from high-voltage and noisy power wiring along the route. Use the footage markings to plan each run and cut to length, and avoid exceeding the manufacturer's pulling tension or bend radius.
