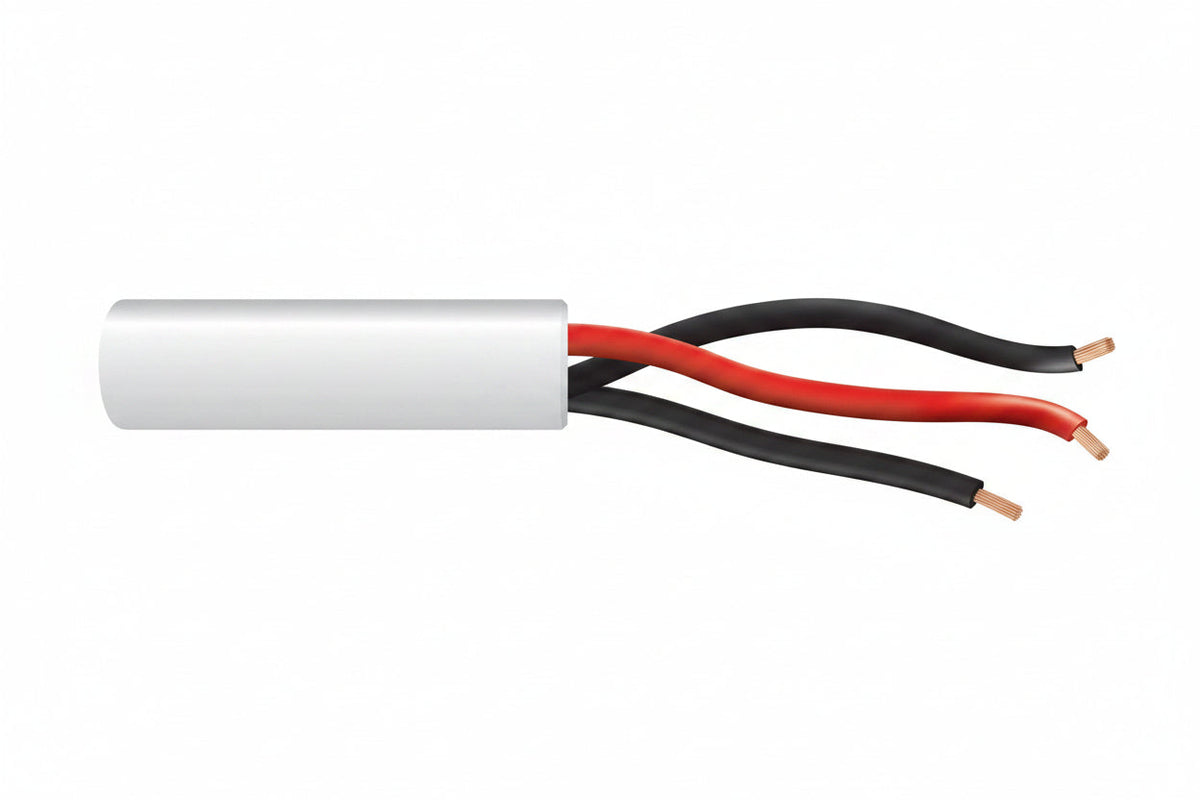

Genesis 31211112 16/2 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Natural

The Genesis 31211112 is a 16 AWG, 2-conductor stranded, unshielded control cable with a plenum (CMP, FT6) rating, supplied in a 1000' (304.8 m) pull box in natural. It suits indoor low-voltage control and signal runs where plenum-rated cable is needed. Bare copper conductors, a rip cord for jacket removal and countdown length markings make it easier to work with on longer pulls.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you have used and how much is left.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• The cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 31211112

Type: Security & Control Cables

Gauge: 16 AWG

Construction: 16/2, stranded

Number of conductors: 2

Number of pairs: 1

Conductor material: Bare copper

Insulation: LS-PVC

Shielding: No

Armored: No

Rating: Plenum, CMP, FT6

Length and packaging: 1000' (304.8 m) pull box

Color: Natural

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 25.30 lb

Installation notes

Because this cable is unshielded, keep it separated from high-voltage and noisy power wiring along the run. Pull it from the box with steady tension, and use the countdown markings to cut runs to length and avoid waste.
