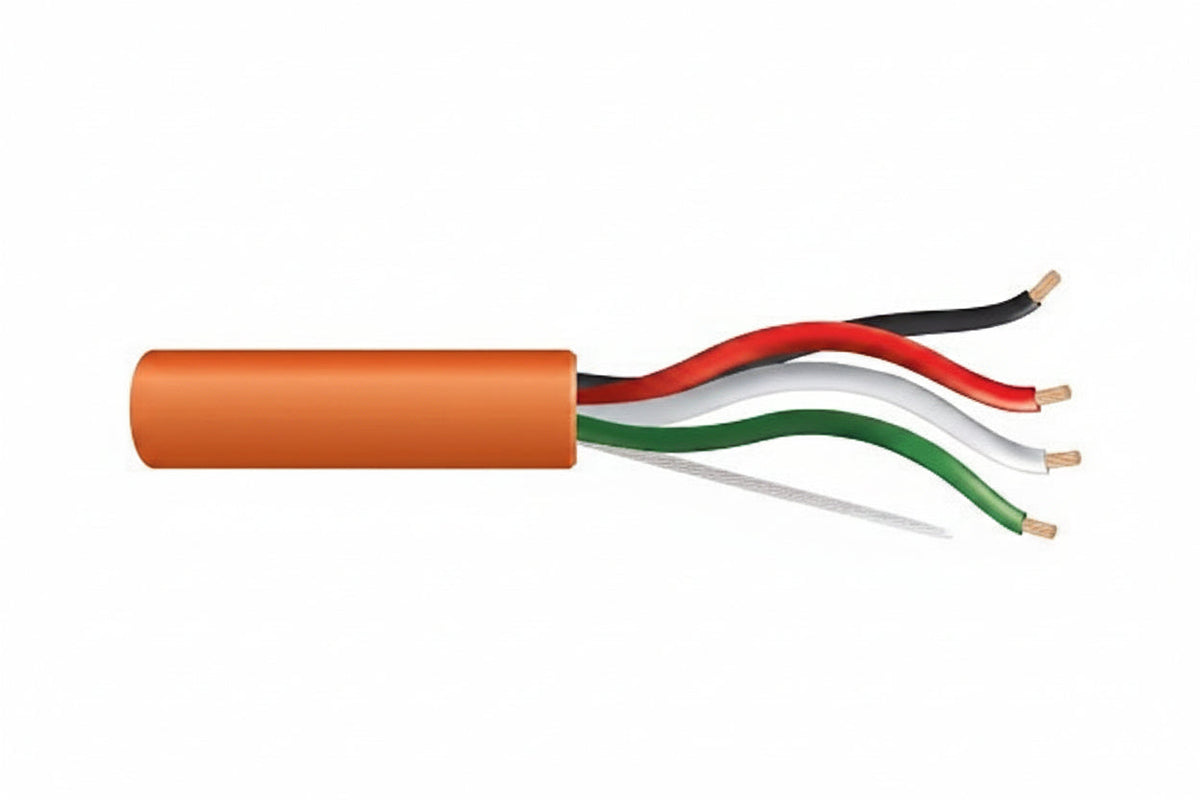

Genesis 31152103 18/4 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel-in-a-Box, Orange

The Genesis 31152103 is an 18/4 stranded, unshielded control cable with a plenum (CMP, FT6) rating, supplied as a 1000' (304.8 m) reel-in-a-box in orange. It suits installers running low-voltage security and control wiring indoors. Bare copper conductors and a rip cord for quick jacket removal make it practical to pull and terminate, and the countdown length markings help you track how much cable is left.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 31152103

Product Type: Security & Control Cables

Gauge/Conductors: 18/4 (18 AWG, 4 conductors)

Conductor Material: Bare Copper

Construction: Stranded

Shielding: No

Armored: No

Insulation Material: LS-PVC

Fire Rating: Plenum, CMP, FT6

Length: 1000' (304.8 m)

Packaging: Reel-in-a-Box

Color: Orange

Indoor/Outdoor: Indoor

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Installation notes

This is an indoor cable, so keep it inside the building and follow local code for plenum spaces. Pull it gently to avoid damaging the conductors or jacket, and use the rip cord to open the jacket cleanly before terminating.
