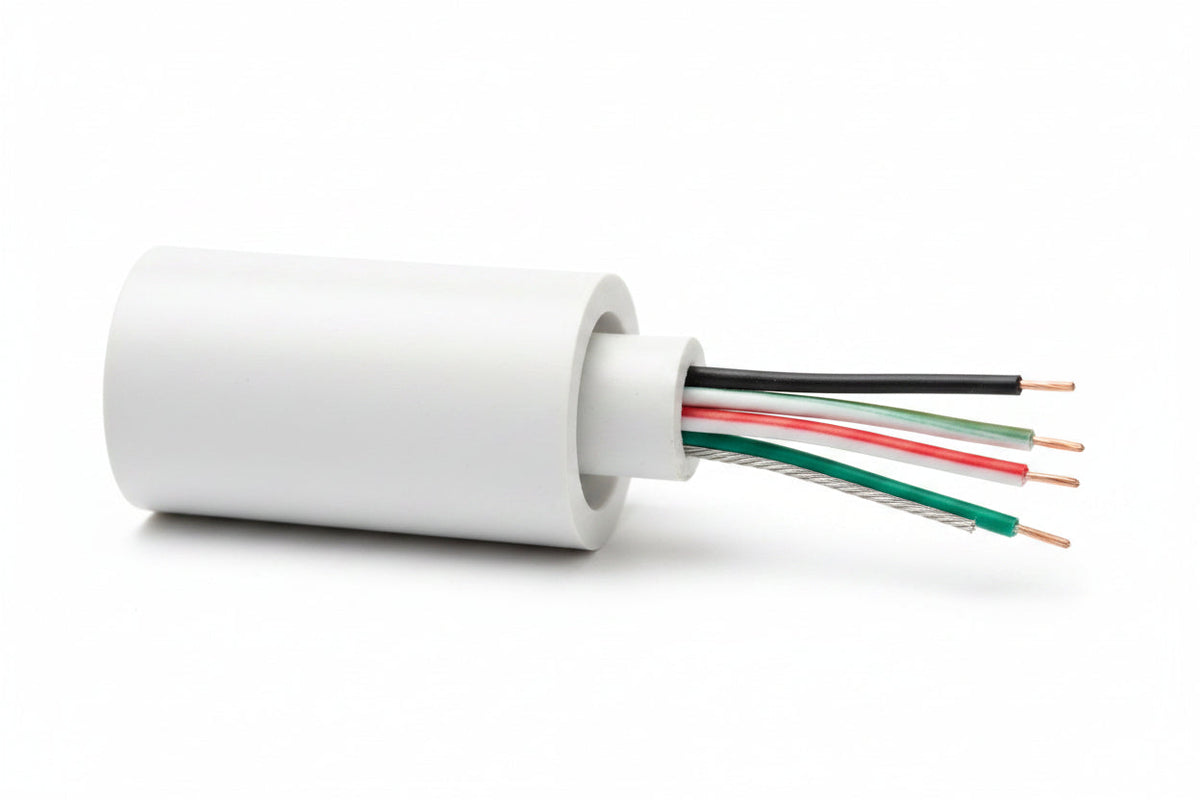

Genesis 31151012 18/4 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural

The Genesis 31151012 is an 18 AWG, 4-conductor stranded, unshielded control cable on a 1000' (304.8 m) reel. It carries low-voltage control and signal runs inside buildings, and its plenum (CMP, FT6) rating makes it suitable for installers who need a cable for air-handling spaces. Bare copper conductors, low-smoke PVC insulation and a rip cord make it practical to pull and terminate.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 31151012

Product type: Security & Control Cables

Gauge: 18 AWG

Number of conductors: 4

Construction: Stranded

Conductor material: Bare copper

Insulation material: LS-PVC

Shielding: No (unshielded)

Armored: No

Rating: Plenum, CMP, FT6

Length and packaging: 1000' (304.8 m) reel

Color: Natural

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 28.70 lb

Installation notes

Keep the cable within its rated temperature range and route it away from high-voltage wiring. Because it is unshielded, avoid running it alongside sources of electrical noise where interference could affect the connected device, and use the length markings to plan each run and cut to length.
