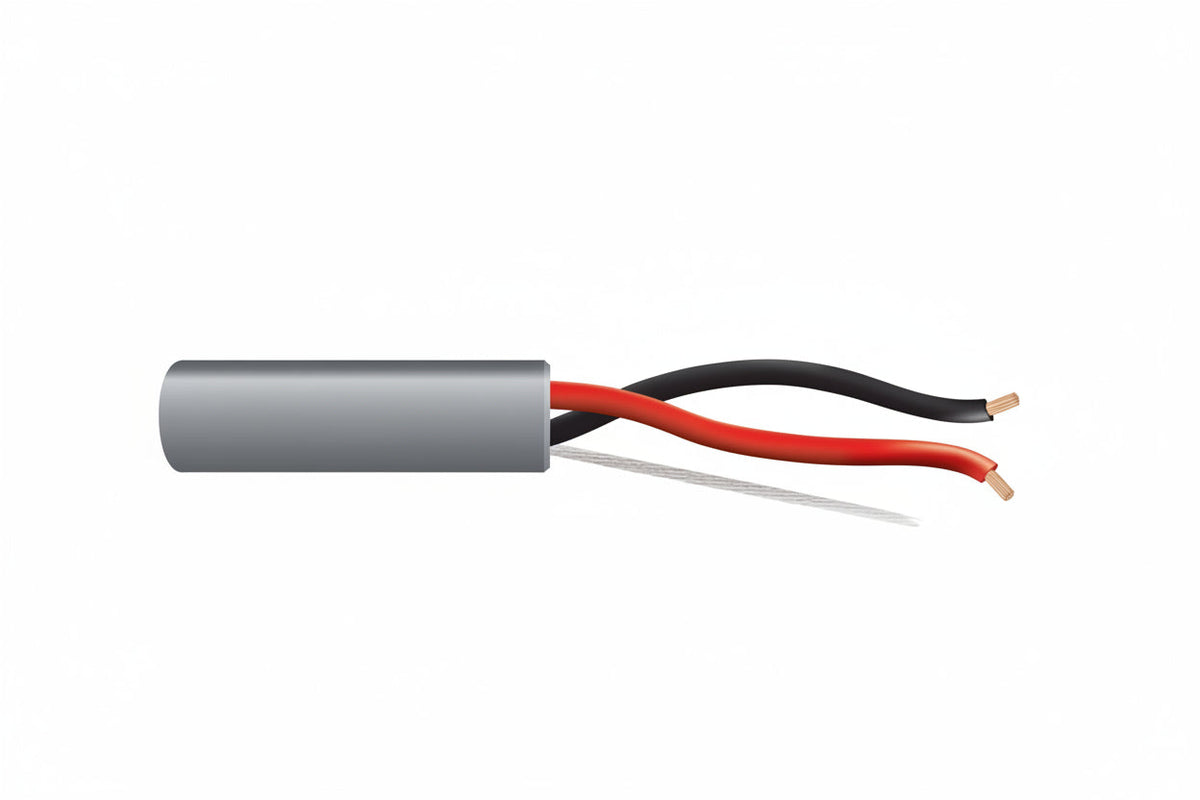

Genesis 31141109 18/2 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Gray

The Genesis 31141109 is an 18/2 stranded, unshielded control cable in a 1000' (304.8 m) pull box, with a gray plenum (CMP, FT6) jacket. It carries low-voltage control and security signals through indoor spaces, and it suits installers who need a plenum-rated 18 AWG pair. Bare copper conductors, a rip cord and countdown length markings make it easier to run and strip on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket more efficiently.
• Countdown length markings help you track how much cable you have used and how much is left.
• The cable is rated for 300 volts and for -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 31141109

Product type: Security & Control Cables

Size: 18/2, 18 AWG

Conductors: 2 (1 pair)

Conductor material: Bare copper

Construction: Stranded

Shielding: No

Armored: No

Insulation material: LS-PVC

Rating: Plenum, CMP, FT6

Length and packaging: 1000' (304.8 m) pull box

Color: Gray

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 13.00 lb

Installation notes

Because this cable is unshielded, keep it separated from higher-voltage power wiring where practical. Pull it from the box without kinks, and use the countdown markings to plan your runs and avoid cutting short.
