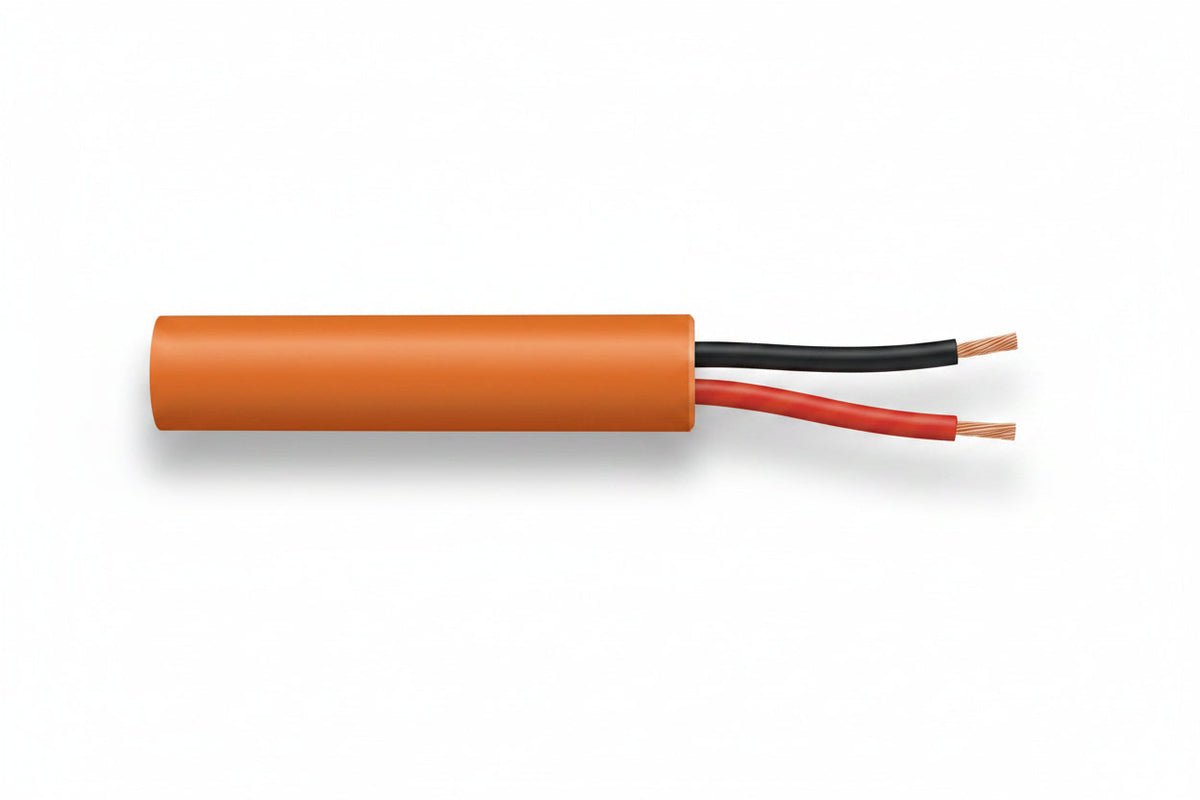

Genesis 31141103 18/2 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Orange

The Genesis 31141103 is an 18/2 stranded, unshielded control cable with a plenum (CMP, FT6) rating, supplied in a 1000' (304.8 m) pull box in orange. It suits installers running low-voltage control wiring indoors, where plenum-rated cable is required. Bare copper conductors, a rip cord for easy jacket removal and countdown length markings make it practical to pull and track on the job.

Key features

• Bare copper conductors give excellent conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A built-in rip cord makes stripping and removing the jacket more efficient.
• Countdown length markings help you track how much cable you have used and how much remains.
• It is rated for 300 volts and for -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 31141103

Product name: 3114-11-03 Control Cable

Product type: Security & Control Cables

Gauge: 18 AWG (18/2)

Number of conductors: 2

Number of pairs: 1

Conductor type: Stranded

Conductor material: Bare copper

Insulation material: LS-PVC

Shielding: No

Armored: No

Rating: Plenum, CMP, FT6

Length and packaging: 1000' (304.8 m) pull box

Color: Orange

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

This cable is rated for indoor use only, so keep it inside the building and out of exterior runs. Pull it from the box without kinking, and use the countdown markings to cut runs to length and to check how much cable remains.
