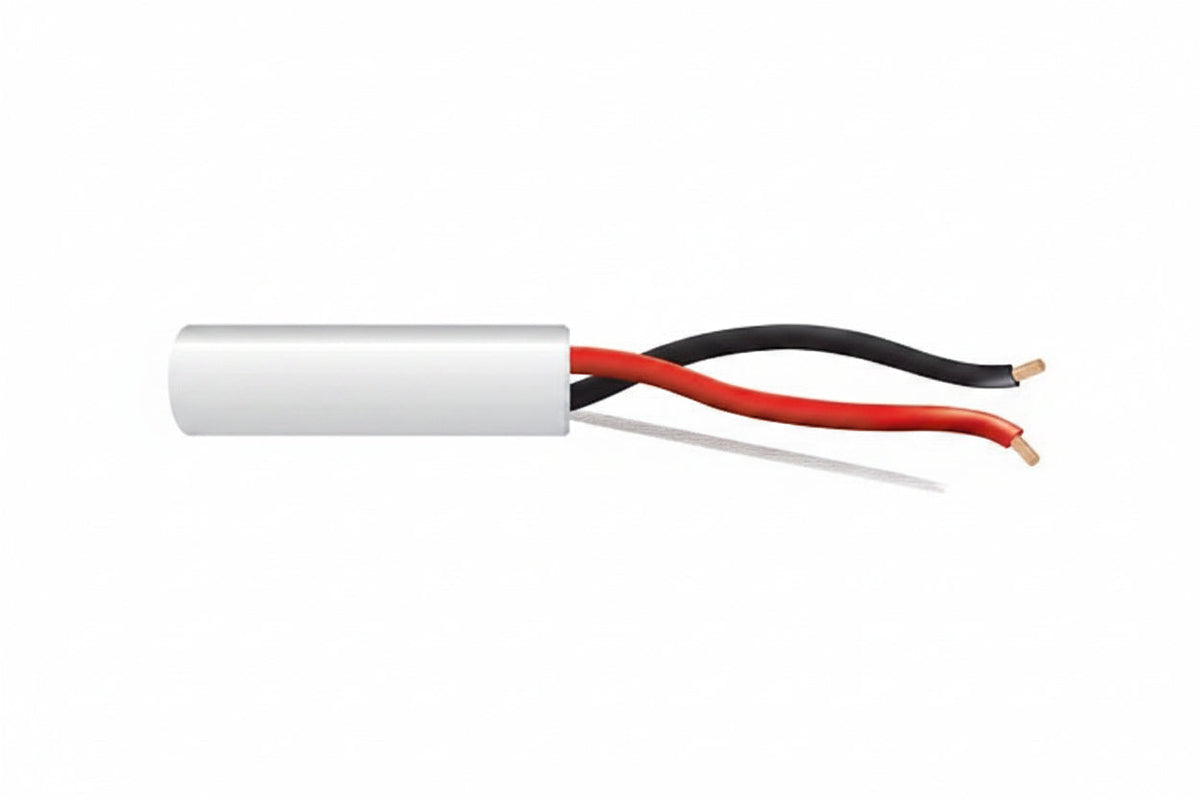

Genesis 31141012 18/2 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural

The Genesis 31141012 is an 18 AWG, 2-conductor stranded cable on a 1000' (304.8 m) reel, rated plenum (CMP, FT6) and unshielded. It suits installers running low-voltage control and security wiring indoors, including in air-handling spaces. Bare copper conductors, low-smoke PVC insulation and countdown length markings make it practical to pull and track on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to see how much cable you have used and how much is left.
• It is rated for 300 volts and for -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 31141012

Product Type: Security & Control Cables

Rating: Plenum, CMP, FT6

Length/Packaging: 1000' (304.8 m) Reel

Color: Clear

American Wire Gauge: 18 AWG

Number of Conductors: 2

Number of Pairs: 1

Solid or Stranded: Stranded

Conductor Material: Bare Copper

Insulation Material: LS-PVC

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Installation notes

This cable is for indoor use only, so keep it out of outdoor runs. Use the countdown markings to plan each pull and cut lengths with a little slack at both ends for termination.
