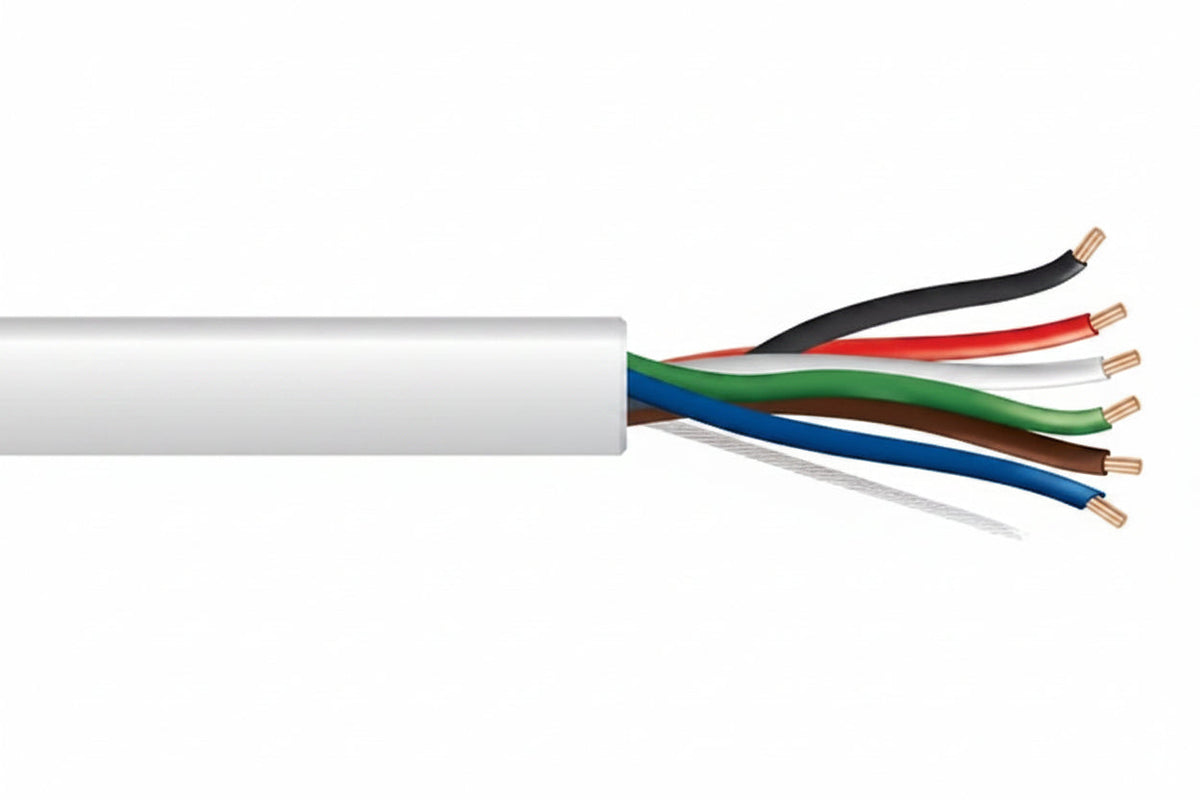

Genesis 31065512 22/6 Stranded Unshielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural

The Genesis 31065512 is a 22 AWG, 6-conductor stranded, unshielded plenum cable (CMP, FT6) for indoor security and control wiring. It comes in a 500' (152.4 m) pull box in natural. It suits installers who need plenum-rated multi-conductor cable for runs through air-handling spaces, and the countdown length markings and rip cord make it easier to measure and strip on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings help you track how much cable you have used and how much is left.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 31065512

Product Name: 3106-55-12 Control Cable

Product Type: Security & Control Cables

Rating: Plenum, CMP, FT6

Length/Packaging: 500' (152.4 m) pull box

Color: Natural

American Wire Gauge: 22AWG

Number of Conductors: 6

Solid or Stranded: Stranded

Conductor Material: Bare Copper

Insulation Material: LS-PVC

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Weight: 10.30 lb

Installation notes

Pull the cable gently and keep to the bend radius the manufacturer recommends, so the stranded conductors and jacket are not damaged. Use the countdown markings to cut runs to length, and label both ends before pulling so terminations are easy to trace later.
