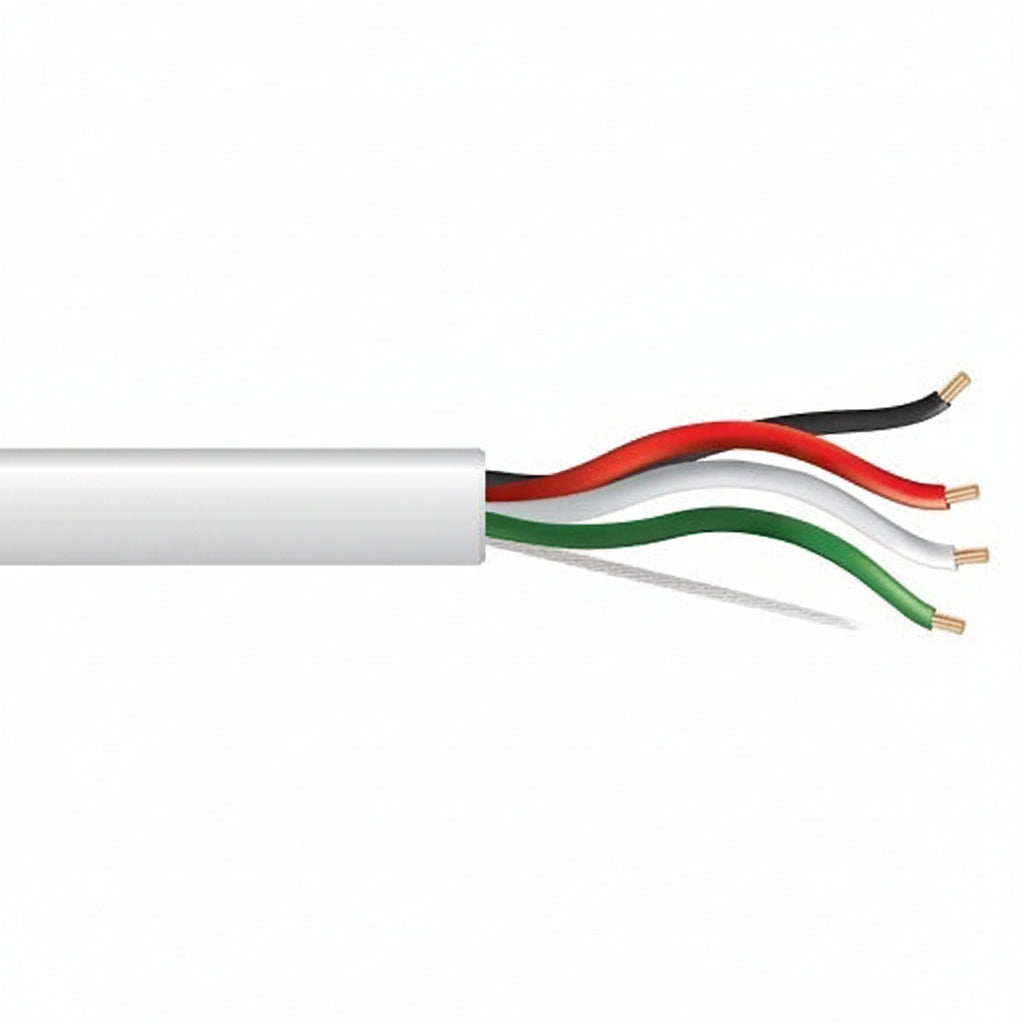

Genesis 31041112 22/4 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Natural

The Genesis 31041112 (3104-11-12 Control Cable) is a 22 AWG, 4-conductor stranded, unshielded plenum cable in a 1000' (304.8 m) pull box, finished in natural. It suits installers running low-voltage control wiring indoors, where a CMP, FT6 rated jacket is called for. Bare copper conductors, low-smoke PVC insulation and countdown length markings make it easy to pull and track on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings help you track how much cable you have used and how much is left.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is REACH and RoHS compliant.

Specifications

Brand: Genesis

Model: 31041112

Product Name: 3104-11-12 Control Cable

Product Type: Security & Control Cables

Rating: Plenum, CMP, FT6

Length: 1000' (304.8 m)

Packaging: Pull box

Color: Natural

Gauge: 22 AWG

Number of Conductors: 4

Conductor Material: Bare Copper

Solid or Stranded: Stranded

Insulation Material: LS-PVC

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Weight: 14.50 lb

Installation notes

This is an indoor-only cable, so keep it out of outdoor runs and use it only where its plenum rating fits the space. Pull it gently from the box to avoid kinking, and use the rip cord to open the jacket cleanly before terminating.
