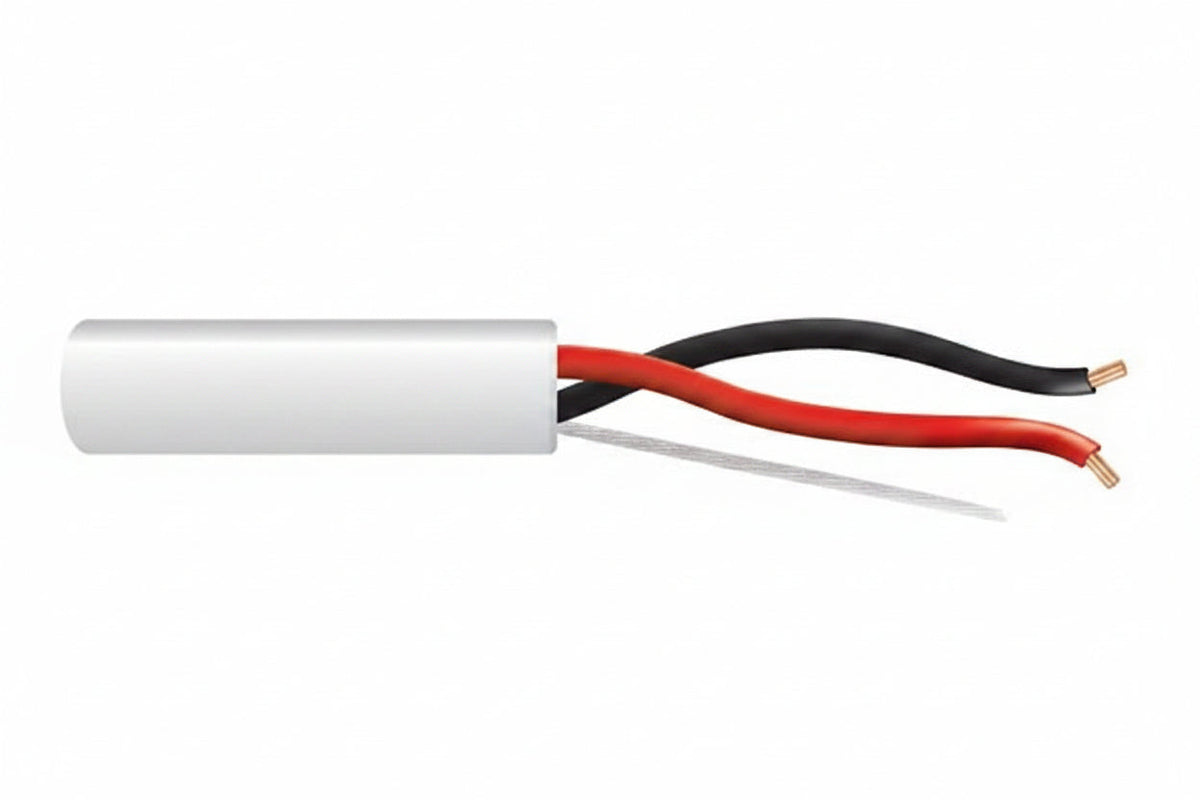

Genesis 31021112 22/2 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Natural

The Genesis 31021112 is a 22/2 stranded, unshielded plenum security and control cable, rated CMP and FT6, supplied in a 1000' (304.8 m) pull box in natural. It suits installers running low-voltage control and security circuits indoors where plenum-rated cable is required. Bare copper conductors, low-smoke PVC insulation and countdown length markings make it easy to work with and to track usage on a long run.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• Rated for 300 volts and for temperatures from -20 °C to 75 °C.
• Complies with REACH and RoHS.

Specifications

Brand: Genesis

Model: 31021112

Product type: Security & Control Cables

Gauge: 22 AWG

Construction: Stranded

Number of conductors: 2

Number of pairs: 1

Conductor material: Bare copper

Insulation material: LS-PVC

Shielding: No

Armored: No

Rating: Plenum, CMP, FT6

Length and packaging: 1000' (304.8 m) pull box

Color: Natural (listed as Clear in the product data)

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 8.80 lb

Installation notes

Pull the cable from the box without kinking it, and use the rip cord to open the jacket cleanly before terminating. Because this cable is unshielded and for indoor use only, keep it routed through indoor spaces and away from sources of electrical noise where possible.
