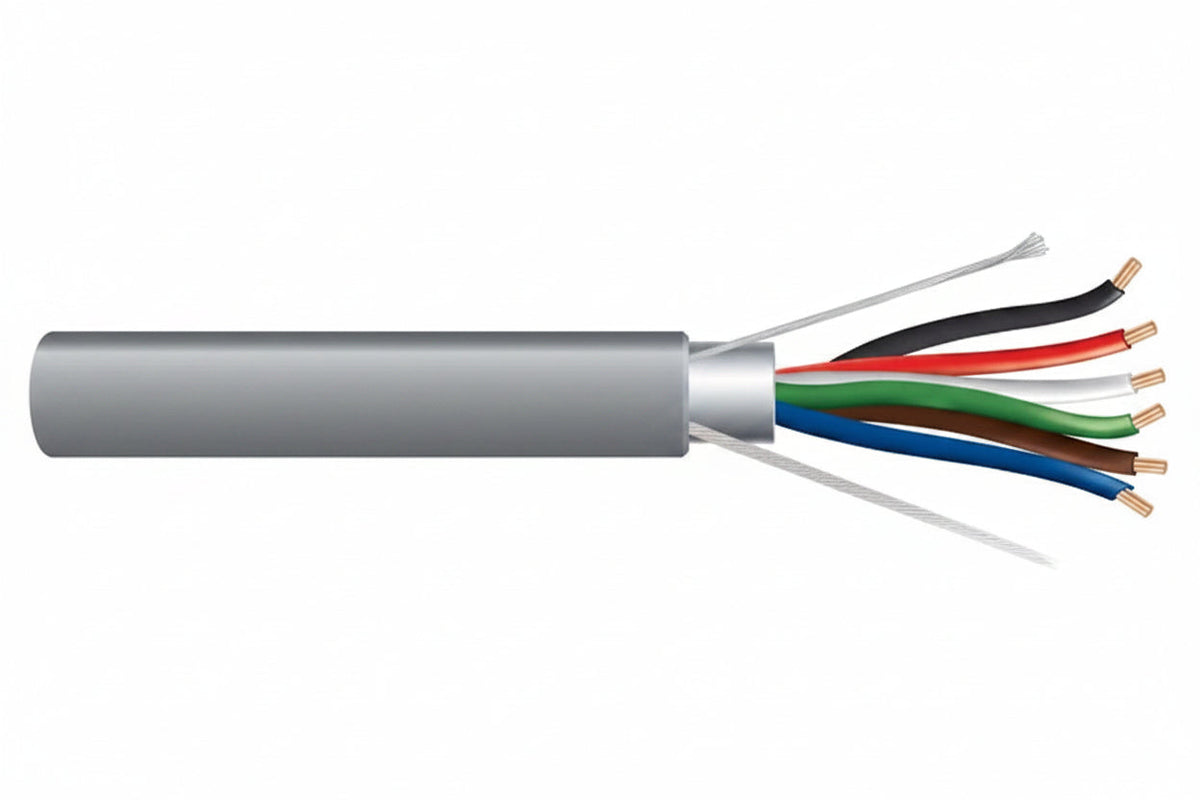

Genesis 22165509 18/6 Stranded Shielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray

The Genesis 22165509 is an 18 AWG, 6-conductor stranded shielded cable with a gray PVC jacket, supplied in a 500' (152.4 m) pull box. It suits security, controls, audio and other low-voltage runs where installers need a shielded multi-conductor cable with a riser (CMR, FT4) rating. The countdown length markings and rip cord make pulling and terminating easier on larger jobs.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• A foil shield covers all conductors.
• A rip cord helps you strip and remove the jacket efficiently.
• Countdown length markings let you track how much cable you've used and how much remains.
• The cable is sunlight resistant (UV) rated and carries a 300 volt rating.
• It is rated for -20 °C to 75 °C and is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 22165509

Product type: Security & Control Cables

Gauge: 18 AWG

Number of conductors: 6

Construction: Stranded

Conductor material: Bare copper

Insulation: Polypropylene (PP)

Jacket: PVC

Shielding: Yes, foil

Rating: Riser, CMR, FT4

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Length: 500' (152.4 m)

Packaging: Pull box

Color: Gray

Indoor/Outdoor: Indoor

Armored: No

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 21.00 lb

Installation notes

Pull the cable from the box without kinking it, and use the countdown markings to cut runs to length with minimal waste. Terminate the foil shield consistently at one end according to the system's grounding practice, and keep the run away from high-voltage power wiring.
