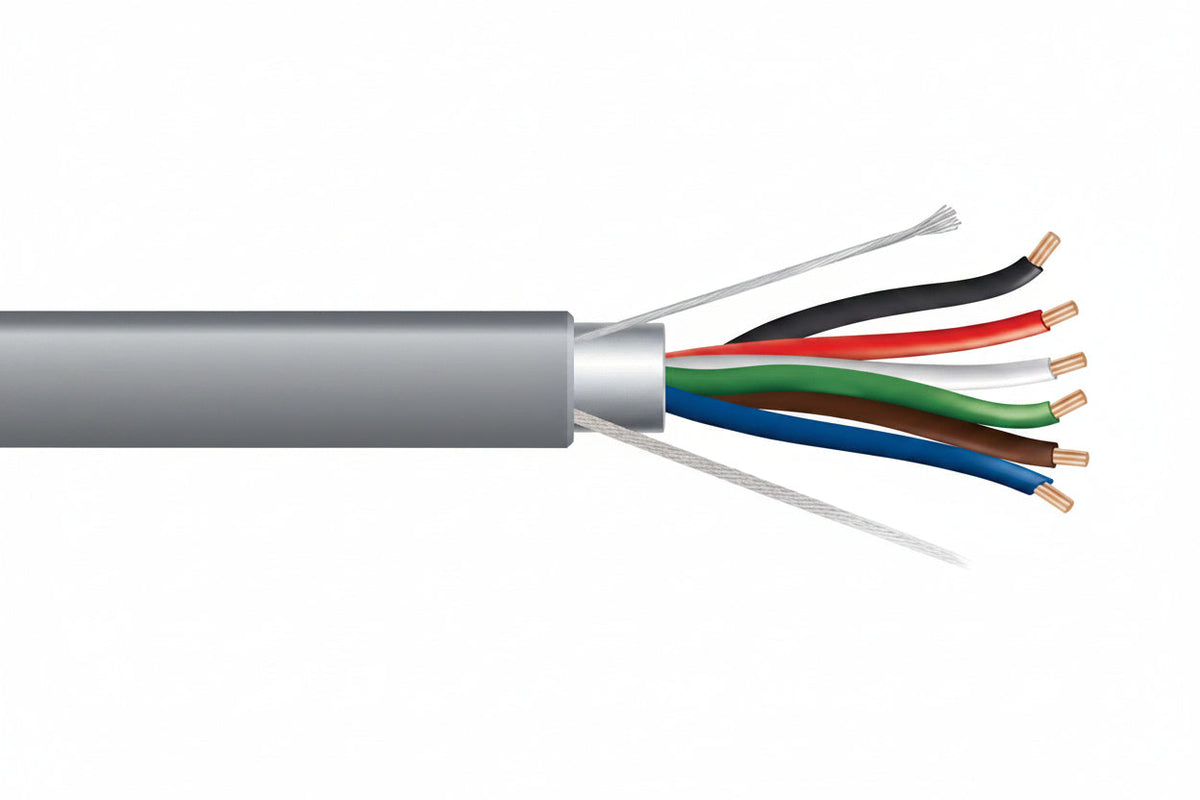

Genesis 22061109 22/6 Stranded Shielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, Gray

The Genesis 22061109 is a 22 AWG, 6-conductor stranded shielded cable with a riser (CMR, FT4) rating, supplied in a 1000' (304.8 m) pull box in gray. It suits installers running security, controls, audio and other low-voltage circuits indoors, where a shielded multi-conductor cable is needed. Bare copper conductors, an overall foil shield and countdown length markings make it practical for long runs.

Key features

• Bare copper conductors offer good conductivity and low voltage drop.
• A foil shield covers all conductors.
• A rip cord makes it quicker to strip and remove the jacket.
• Countdown length markings let you track how much cable you have used and how much is left.
• The cable is sunlight resistant (UV) rated and rated for -20 °C to 75 °C.
• It is REACH/RoHS compliant and rated for 300V.

Specifications

Brand: Genesis

Model: 22061109

Cable type: Shielded, stranded

Gauge: 22 AWG

Number of conductors: 6

Conductor material: Bare copper

Insulation: Polypropylene (PP)

Jacket: PVC

Rating: Riser, CMR, FT4

Length and packaging: 1000' (304.8 m) pull box

Color: Gray

Voltage rating: 300V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Armored: No

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 21.40 lb

Installation notes

Terminate the foil shield and drain wire properly at the equipment end, and keep the shield continuous through the run. Use the length markings to plan your cuts and avoid leaving short remnants on the reel.
