Genesis 22021101 22/2 Stranded Shielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, White

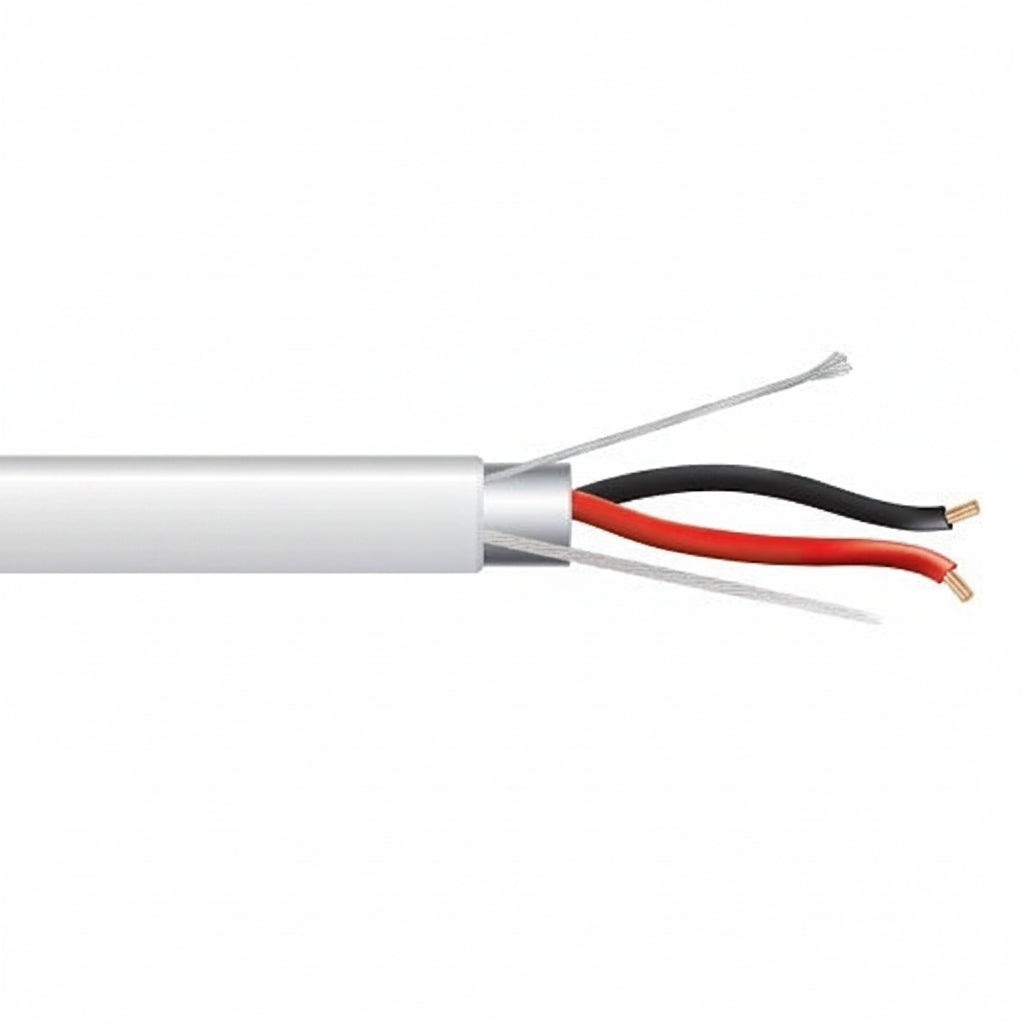

The Genesis 22021101 is a 1000′ (304.8 m) pull box of 22/2 stranded shielded cable with a white PVC jacket, rated Riser, CMR and FT4. It carries low-voltage security and control signals over two stranded bare copper conductors under a foil shield, and suits installers running indoor riser cable. A rip cord for stripping the jacket and countdown length markings help keep large pulls tracking smoothly.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• A foil shield covers all conductors, with polypropylene insulation beneath a PVC jacket.
• The built-in rip cord makes jacket removal quicker and cleaner.
• Countdown length markings show how much cable you have used and how much is left.
• Rated for 300 volts and for temperatures from -20 °C to 75 °C.
• Sunlight resistant (UV) rated, and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 22021101

Product type: Security & Control Cables

Gauge: 22 AWG

Construction: 22/2

Number of conductors: 2

Number of pairs: 1

Solid or stranded: Stranded

Conductor material: Bare Copper

Insulation material: PP

Jacket: PVC

Shielding: Yes

Armored: No

Rating: Riser, CMR, FT4

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Length: 1000′ (304.8 m)

Packaging: Pull box

Color: White

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

Pull cable straight from the box to avoid kinks and twists, and use the countdown markings to plan runs and cut lengths. Ground the foil shield at one end only, as is common practice, and keep the run away from high-voltage power wiring to limit interference.
