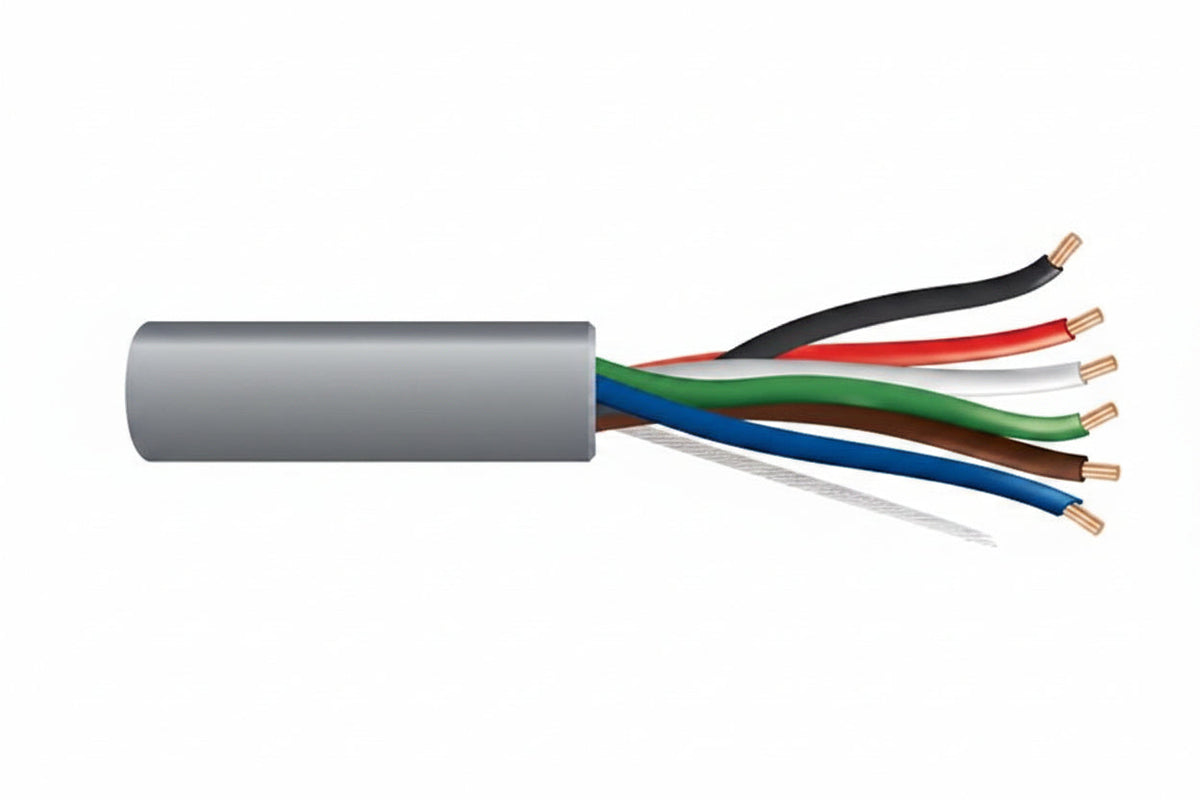

Genesis 21061109 22/6 Stranded Unshielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, Gray

The Genesis 21061109 is a 22 AWG, 6-conductor stranded, unshielded control cable with a riser (CMR) and FT4 rating, supplied in a 1000' (304.8 m) pull box in gray. It suits installers running security and control wiring indoors, and it is a good fit for projects that need a riser-rated jacket. Bare copper conductors, a rip cord for jacket removal and countdown length markings make it easier to work with on longer runs.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you have used and how much remains.
• Polypropylene insulation sits under a PVC jacket.
• The cable is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 21061109

Product type: Security & Control Cables

Gauge/conductors: 22/6

American wire gauge: 22AWG

Number of conductors: 6

Conductor material: Bare Copper

Solid or stranded: Stranded

Insulation material: PP

Jacket: PVC

Shielding: No

Armored: No

Rating: Riser, CMR, FT4

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Length/packaging: 1000' (304.8 m) pull box

Color: Gray

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

Pull the cable from the box without kinking it, and use the countdown markings to cut each run to length. Because the cable is unshielded, keep it separated from high-voltage and noisy power wiring where practical, and follow local code for riser-rated installations.
