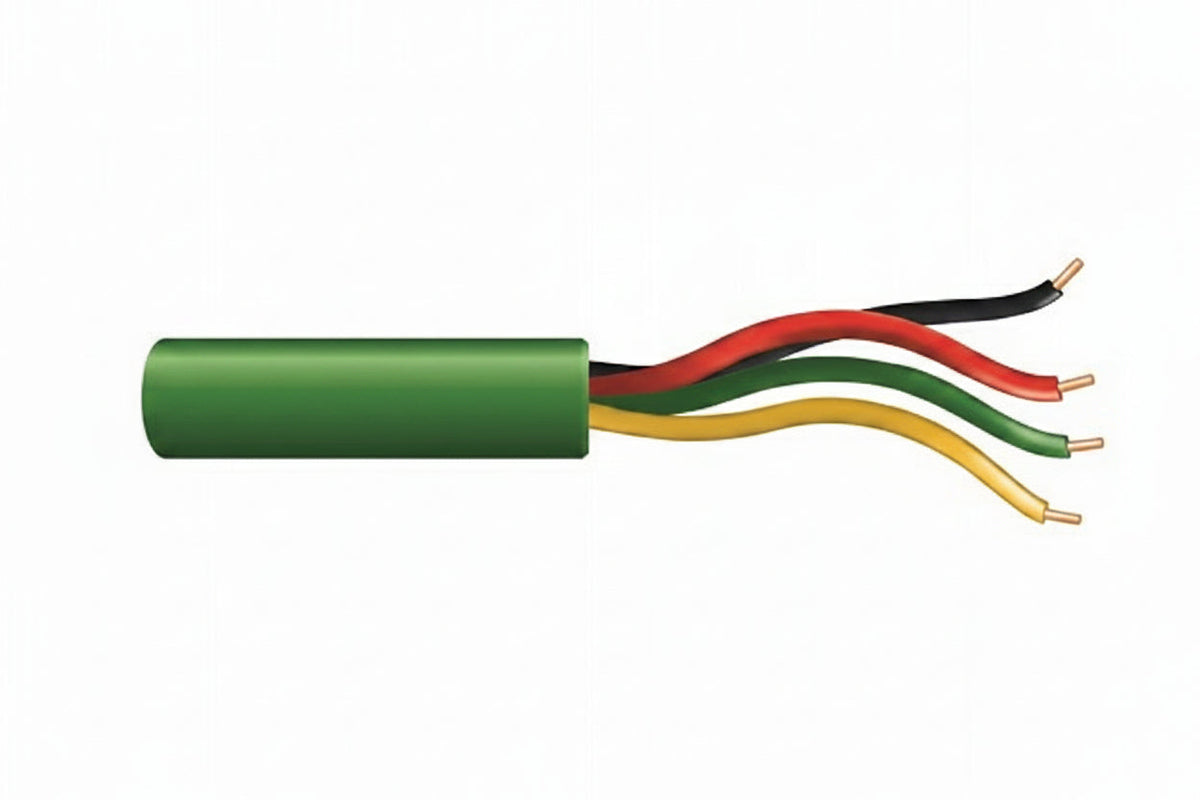

Genesis 21035805 22/4 Solid Unshielded Cable, Riser, CMR, FT4, 500' (152.4m) Speed Bag, Green

The Genesis 21035805 is a 22 AWG, 4-conductor solid unshielded security and control cable with a riser (CMR) rating. It comes as a 500' (152.4 m) speed bag with a green PVC jacket. It suits installers running low-voltage wiring indoors, and it stands out for its bare copper conductors, rip cord and sequential length marking.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• A built-in rip cord makes stripping and removing the jacket quicker.
• Sequential length marking lets you track how much cable has been used.
• Polypropylene insulation sits under a PVC jacket.
• The jacket is rated for sunlight resistance (UV).
• It is REACH/RoHS compliant and rated for 300V.

Specifications

Brand: Genesis

Model: 21035805

Product Type: Security & Control Cables

Gauge: 22 AWG

Number of Conductors: 4

Conductor Material: Bare Copper

Solid or Stranded: Solid

Insulation Material: PP

Jacket: PVC

Shielding: No

Armored: No

Rating: Riser, CMR, FT4

Voltage Rating: 300V

Temperature Rating: -20 °C to 75 °C

Length: 500' (152.4 m)

Packaging: Speed Bag

Color: Green

Indoor/Outdoor: Indoor

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Installation notes

Pull the cable gently and keep bends loose so the solid conductors are not kinked or stressed. Use the length markings to plan each run and leave some slack at both ends for termination.
