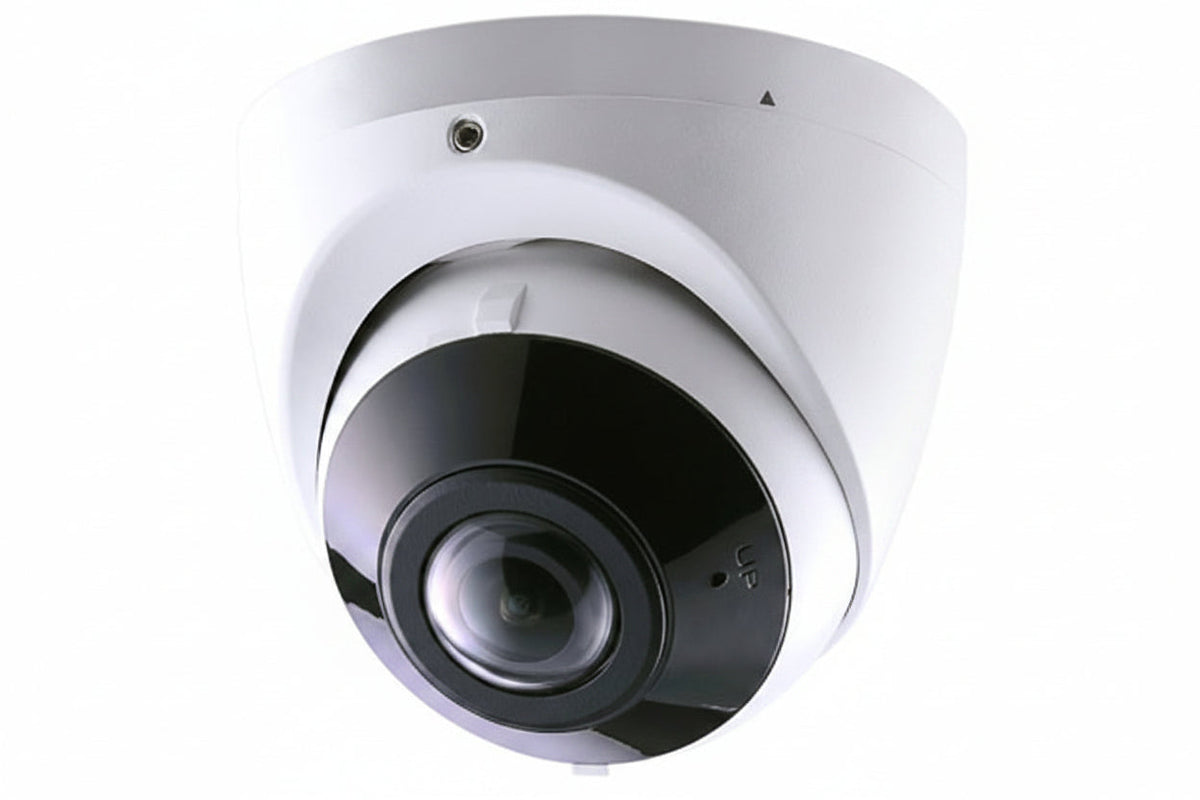

GeoVision 125-EBDP580-0010 5MP Super Low Lux WDR Pro IR Dome IP Camera, 1.68mm Fixed Lens

The GeoVision 125-EBDP580-0010 (GV-EBDP5800) is a 5MP outdoor dome IP camera for remote surveillance. It has a fixed 1.68mm lens that covers 180° horizontally, so one camera can watch a large open area. It suits installers and businesses that need low-light and high-contrast performance from a metal, impact-resistant housing with built-in infrared night vision.

Key features

• Records video up to 2880 x 1620 from a 5MP CMOS sensor.
• The fixed 1.68mm lens with an f/2.0 maximum aperture gives wide coverage.
• Infrared night vision reaches up to 65.62', using light that is invisible to the naked eye.
• Super low lux sensitivity and Wide Dynamic Range help in dim scenes and scenes with mixed lighting.
• The IP67 and IK10 ratings, a metal housing and a wide operating temperature range suit outdoor mounting.

Specifications

Brand: GeoVision

Model: 125-EBDP580-0010

Product Model: GV-EBDP5800

Product Type: IP Camera

Form Factor: Dome

Effective Camera Resolution: 5MP

Maximum Video Resolution: 2880 x 1620

Maximum Resolution: 1280 x 720

Maximum Frame Rate: 30fps

Video Formats: MJPEG

Image Sensor Type: CMOS

Minimum Illumination: 0.0100lux

Wide Dynamic Range: Yes

Features: 3D Noise Reduction

Lens Type: Fixed

Lens Included: Yes

Lens Mount Type: M12

Focal Length: 1.68mm

Maximum Aperture: f/2

Field of View: Horizontal

Shortest Shutter Speed: 1/100000 Second

Longest Shutter Speed: 1 Second

Night Vision: Yes

Night Vision Type: Infrared (IR)

Night Vision Distance: 65.62'

Number of IR LEDs: 2

Connectivity Technology: Wired

Network (RJ-45): Yes

Remote Management: Yes

Storage Type: SD Card

Input Voltage: 12V DC

Indoor/Outdoor: Outdoor

Mount Type: Ceiling Mount

Ingress Protection Rating: IP67

Impact Protection Rating: IK10

Durability: Impact Resistant

Material: Metal

Color: White

Environmental Certification: RoHS

Environmentally Friendly: Yes

Minimum Operating Temperature: -22°F

Maximum Operating Temperature: 140°F

Diameter: 4.40″

Weight: 1.06lb

Package Contents: GV-EBDP5800 camera, waterproof rubber set, screw kit, drill template paster, Torx wrench, download guide

Installation notes

Use the drill template to mark the mounting holes. Seal the cable entry with the supplied waterproof rubber set so the outdoor rating is not compromised. Confirm that the 12V DC supply and the RJ-45 network run are in place before final mounting. Aim the camera so the wide horizontal view covers the target area without bright lights shining directly into the lens.
